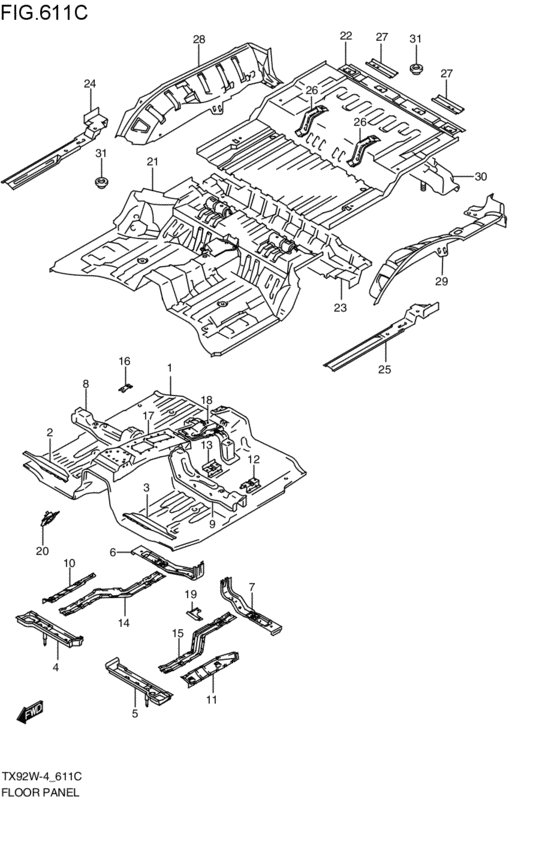

floor panel (2003-06-01~2005-04-01) Diagram Suzuki ESCUDO
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- H27A
- deice
- NDEICE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61411-65D30-000 PANEL,MAIN FLOOR2003-06-01~2005-04-01 |
61411-65D30-000 |
US $675.84 |
||
|
2
|
2
61415-52D00-000
REINFORCEMENT,MAIN FL FR,R
2003-06-01~2005-04-01 |
61415-52D00-000 |
— | ||
|
3
|
3
61515-52D00-000
REINFORCEMENT,MAIN FL FR,L
2003-06-01~2005-04-01 |
61515-52D00-000 |
— | ||
|
4
|
4
61420-65D20-000
MEMBER,FR FL NO.1,R
2003-06-01~2005-04-01 |
61420-65D20-000 |
— | ||
|
5
|
5
61520-65D30-000
メンバ,フロントフロアNO.1,レフト
2003-06-01~2005-04-01 |
61520-65D30-000 |
— | ||
| replacement | |||||
|
5
|
5
61520-65D31-000
MEMBER,FR FL N0.1,L
2003-06-01~2005-04-01 |
61520-65D31-000 |
— | ||
|
6
|
6
61430-52D20-000
MEMBER,FR FL NO.2,R
2003-06-01~2005-04-01 |
61430-52D20-000 |
— | ||
|
7
|
7
61530-52D20-000
MEMBER,FR FL NO.2,L
2003-06-01~2005-04-01 |
61530-52D20-000 |
— | ||
|
8
|
8
61441-65D20-000
MEMBER,FR SEAT,R
2003-06-01~2005-04-01 |
61441-65D20-000 |
— | ||
|
9
|
9
61541-65D20-000
MEMBER,FR SEAT,L
2003-06-01~2005-04-01 |
61541-65D20-000 |
— | ||
|
10
|
10
61461-52D00-000
REINFORCEMENT,FR FL SIDE,R
2003-06-01~2005-04-01 |
61461-52D00-000 |
— | ||
|
11
|
11
61561-52D00-000
Reinf,front floor side,l
2003-06-01~2005-04-01 |
61561-52D00-000 |
— | ||
|
12
|
12
61462-65D10-000
BRACKET,SUB WOOFER OUTER
2003-06-01~2005-04-01 |
61462-65D10-000 |
— | ||
|
13
|
13
61463-65D00-000
BRACKET,SUB WOOFER INNER
2003-06-01~2005-04-01 |
61463-65D00-000 |
— | ||
|
14
|
14
61471-52D00-000
MEMBER,FR FL NO.3,R
2003-06-01~2005-04-01 |
61471-52D00-000 |
— | ||
|
15
|
15
61571-52D00-000
MEMBER,FR FL NO.3,L
2003-06-01~2005-04-01 |
61571-52D00-000 |
— | ||
|
16
|
16
61476-52D00-000
BRACKET,2ND SEAT OUTER
2003-06-01~2005-04-01 |
61476-52D00-000 |
— | ||
|
17
|
17
61610-65D20-000
REINFORCEMENT,FL TUNNEL
2003-06-01~2005-04-01 |
61610-65D20-000 |
— | ||
|
18
|
18
61630-52D20-000
BRACKET,PARKING BRAKE
2003-06-01~2005-04-01 |
61630-52D20-000 |
— | ||
|
19
|
19
61642-60A01-000
Bracket,heat protector
2003-06-01~2005-04-01 |
61642-60A01-000 |
— | ||
|
20
|
20
61651-65D10-000
BRACKET,FOOTREST
2003-06-01~2005-04-01 |
61651-65D10-000 |
— | ||
|
21
|
21
61700-52D80-000
Panel assy,center floor
2003-06-01~2005-04-01 |
61700-52D80-000 |
— | ||
| replacements | |||||
|
21
|
21
61710-52D80-000
Panel comp,center floor
2003-06-01~2005-04-01 |
61710-52D80-000 |
— | ||
|
21
|
21
61811-52D02-000
Panel,main floor extension
2003-06-01~2005-04-01 |
61811-52D02-000 |
— | ||
|
21
|
21
61821-52D10-000
MEMBER,EXTENSION FL FR
2003-06-01~2005-04-01 |
61821-52D10-000 |
— | ||
|
21
|
21
61822-52D00-000
MEMBER,EXTENSION FL RR,R
2003-06-01~2005-04-01 |
61822-52D00-000 |
— | ||
|
21
|
21
61823-52D10-000
MEMBER,EXTENSION FL RR,L
2003-06-01~2005-04-01 |
61823-52D10-000 |
— | ||
|
21
|
21
61831-52D00-000
REINFORCEMENT,EXT FL FR
2003-06-01~2005-04-01 |
61831-52D00-000 |
— | ||
|
21
|
21
61832-52D01-000
REINFORCEMENT,EXT FL RR,R
2003-06-01~2005-04-01 |
61832-52D01-000 |
— | ||
|
21
|
21
61833-52D00-000
REINFORCEMENT,EXT FL RR,L
2003-06-01~2005-04-01 |
61833-52D00-000 |
— | ||
|
21
|
21
61840-52D10-000
BRACKET,3RD MOUNTING,R
2003-06-01~2005-04-01 |
61840-52D10-000 |
— | ||
|
21
|
21
61850-52D10-000
BRACKET,3RD MOUNTING,L
2003-06-01~2005-04-01 |
61850-52D10-000 |
— | ||
|
21
|
21
61861-52D00-000
BRACKET,JACK
2003-06-01~2005-04-01 |
61861-52D00-000 |
— | ||
|
21
|
21
61910-52D10-000
BRACKET,2ND SEAT INNER
2003-06-01~2005-04-01 |
61910-52D10-000 |
— | ||
|
22
|
22
62111-66D20-000 PANELREAR FLOOR2003-06-01~2005-04-01 |
62111-66D20-000 |
US $160.85 |
||
| replacement | |||||
|
22
|
22
62111-66D30-000 PANEL,REAR FLOOR2003-06-01~2005-04-01 |
62111-66D30-000 |
from US $160.85 |
||
|
23
|
23
62120-52D10-000
Member,rear floor
2003-06-01~2005-04-01 |
62120-52D10-000 |
— | ||
|
24
|
24
62131-52D00-000
Reinf,rear seat belt side,r
2003-06-01~2005-04-01 |
62131-52D00-000 |
— | ||
|
25
|
25
62132-52D00-000
REINF,RR SEAT BELT SIDE,L
2003-06-01~2005-04-01 |
62132-52D00-000 |
— | ||
|
26
|
26
62161-52D00-000 BRACKET,3RD SEAT2003-06-01~2005-04-01 |
62161-52D00-000 |
US $12.84 |
||
|
27
|
27
62171-52D00-000
BRACKET,LUGGAGE BOX
2003-06-01~2005-04-01 |
62171-52D00-000 |
— | ||
|
28
|
28
62210-52D01-000
Panel,rr wheel hsg inr,r
2003-06-01~2005-04-01 |
62210-52D01-000 |
— | ||
|
29
|
29
62310-52D02-000
PANEL,RR WHEEL HSG INR,L
2003-06-01~2005-04-01 |
62310-52D02-000 |
— | ||
|
30
|
30
62510-65D11-000 MEMBER,RR FL TAIL2003-06-01~2005-04-01 |
62510-65D11-000 |
US $162.36 |
||
|
31
|
31
65971-77E10-000 CAP,OD:302003-06-01~2005-04-01 |
65971-77E10-000 |
from US $2.23 |
||
