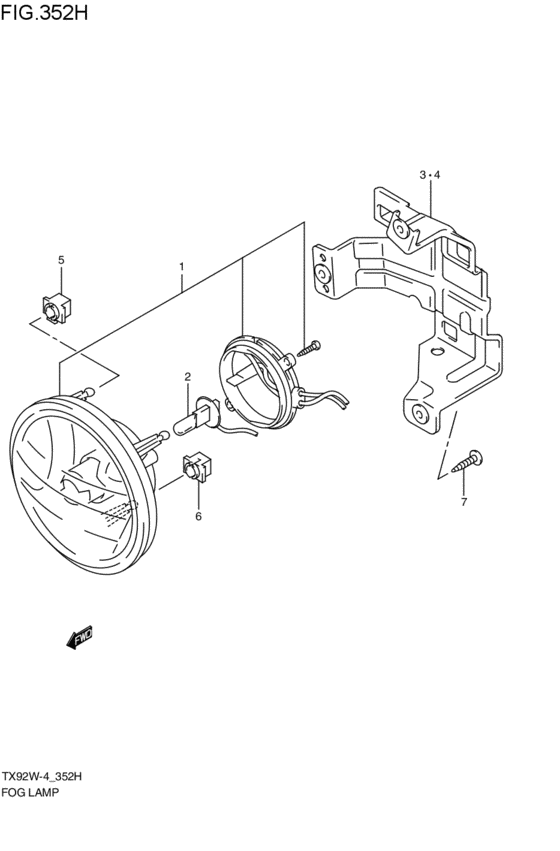

fog light (2003-06-01~2005-04-01) Diagram Suzuki ESCUDO
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- H27A
- deice
- NDEICE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35510-50J11-000 UNIT,FR FOG LAMP2003-06-01~2005-04-01 |
35510-50J11-000 |
US $198.72 |
||
|
2
|
2
09471-12106-000 BULB(12V55W,H3)2003-06-01~2005-04-01 |
09471-12106-000 |
from US $14.56 |
||
| replacement | |||||
|
2
|
2
09471-12106-CDN
Bulb,h3 64151
2003-06-01~2005-04-01 |
09471-12106-CDN |
— | ||
|
3
|
3
35525-50J00-000 BRACKET,FR FOG LAMP,R2003-06-01~2005-04-01 |
35525-50J00-000 |
from US $29.50 |
||
|
4
|
4
35565-50J00-000 BRACKET,FR FOG LAMP,L2003-06-01~2005-04-01 |
35565-50J00-000 |
from US $32.31 |
||
|
5
|
5
35153-50JA0-000 CLIP,FR FOG LAMP UPPER2003-06-01~2005-04-01 |
35153-50JA0-000 |
from US $4.25 |
||
|
6
|
6
35153-50JB0-000 CLIP,FR FOG LAMP LOWER2003-06-01~2005-04-01 |
35153-50JB0-000 |
from US $6.17 |
||
|
7
|
7
03541-05123-000
Screw
2003-06-01~2005-04-01 |
03541-05123-000 |
— | ||
| replacement | |||||
|
7
|
7
03541-0512B-000 SCREW2003-06-01~2005-04-01 |
03541-0512B-000 |
from US $0.76 |
||
