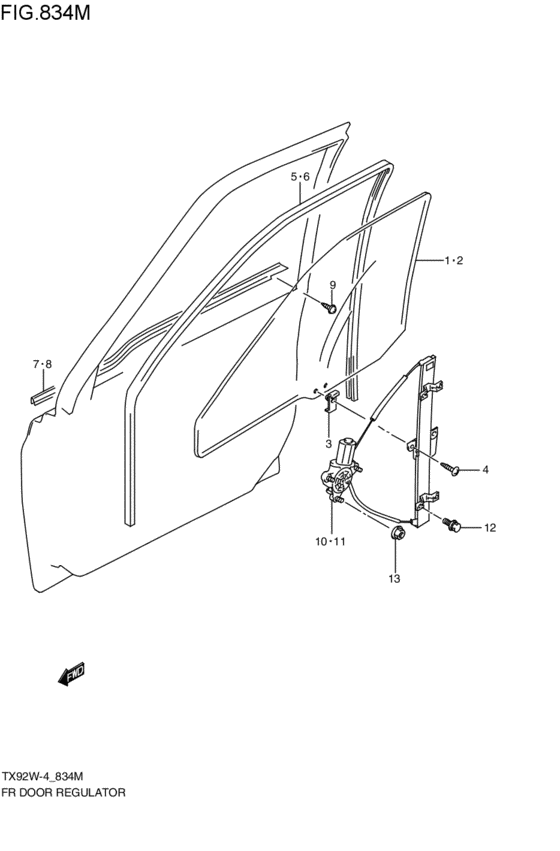

front door regulator (2003-06-01~2005-04-01) Diagram Suzuki ESCUDO
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- H27A
- deice
- NDEICE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
84531-65D30-000
GLASS,FR DR WDO,R
ASAHI; 2003-06-01~2005-04-01 |
84531-65D30-000 |
— | ||
|
2
|
2
84536-65D30-000
GLASS,FR DR WDO,L
ASAHI; 2003-06-01~2005-04-01 |
84536-65D30-000 |
— | ||
|
3
|
3
83611-65D00-000 HOLDER,SIDE DOOR GLASS2003-06-01~2005-04-01 |
83611-65D00-000 |
from US $2.08 |
||
|
4
|
4
03241-06203-000
スクリュ
2003-06-01~2005-04-01 |
03241-06203-000 |
— | ||
| replacement | |||||
|
4
|
4
03241-0620A-000 SCREW2003-06-01~2005-04-01 |
03241-0620A-000 |
US $0.80 |
||
|
5
|
5
83660-65D00-000 RUN,FR DOOR GLASS,R2003-06-01~2005-04-01 |
83660-65D00-000 |
US $77.31 |
||
|
6
|
6
83680-65D00-000 RUN,FR DOOR GLASS,L2003-06-01~2005-04-01 |
83680-65D00-000 |
US $78.19 |
||
|
7
|
7
83810-65D00-000 WEATHERSTRIP,FR DR OUT,R2003-06-01~2005-04-01 |
83810-65D00-000 |
from US $53.10 |
||
|
8
|
8
83820-65D00-000 WEATHERSTRIP,FR DR OUT,L2003-06-01~2005-04-01 |
83820-65D00-000 |
from US $53.10 |
||
|
9
|
9
09136-05059-000 SCREW(5X12)2003-06-01~2005-04-01 |
09136-05059-000 |
from US $0.90 |
||
|
10
|
10
83401-65D20-000 REGULATOR ASSY,FR WINDOW,R2003-06-01~2005-04-01 |
83401-65D20-000 |
US $744.02 |
||
|
11
|
11
83402-65D10-000 REGULATOR ASSY,FR WINDOW,L2003-06-01~2005-04-01 |
83402-65D10-000 |
from US $349.13 |
||
|
12
|
12
01580-06123-000
Bolt
2003-06-01~2005-04-01 |
01580-06123-000 |
— | ||
| replacements | |||||
|
12
|
12
01580-0612B-000 Bolt2003-06-01~2005-04-01 |
01580-0612B-000 |
US $0.96 |
||
|
12
|
12
01580-0612A-000 Bolt2003-06-01~2005-04-01 |
01580-0612A-000 |
from US $0.91 |
||
|
13
|
13
08361-15063-000
Nut
2003-06-01~2005-04-01 |
08361-15063-000 |
— | ||
| replacement | |||||
|
13
|
13
08361-1506A-000 NUT2003-06-01~2005-04-01 |
08361-1506A-000 |
from US $0.80 |
||
