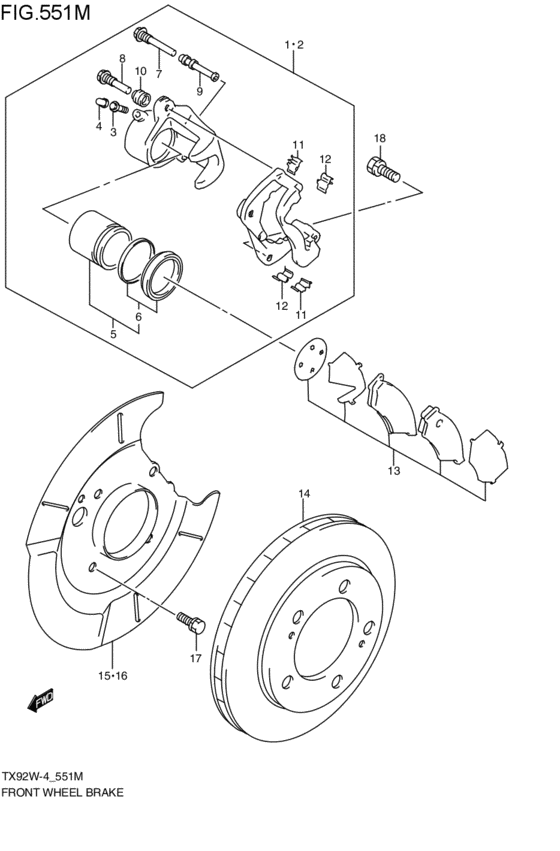

front wheel brakes (2003-06-01~2005-04-01) Diagram Suzuki ESCUDO
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- H27A
- deice
- NDEICE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55101-65D20-999
CALIPERFRONT BRAKER
2003-06-01~2005-04-01 |
55101-65D20-999 |
— | ||
| replacement | |||||
|
1
|
1
55101-65D22-999 CALIPER,FR BRAKE,R2003-06-01~2005-04-01 |
55101-65D22-999 |
from US $239.13 |
||
|
2
|
2
55102-65D20-999
CALIPERFRONT BRAKEL
2003-06-01~2005-04-01 |
55102-65D20-999 |
— | ||
| replacement | |||||
|
2
|
2
55102-65D22-999 CALIPER,FR BRAKE,L2003-06-01~2005-04-01 |
55102-65D22-999 |
US $585.60 |
||
|
3
|
3
55151-77E00-000 PLUG,BLEEDER2003-06-01~2005-04-01 |
55151-77E00-000 |
from US $7.04 |
||
|
4
|
4
55156-77E00-000 CAP,BLEEDER PLUG2003-06-01~2005-04-01 |
55156-77E00-000 |
from US $1.64 |
||
|
5
|
5
55100-77E00-000
Piston/seal set
2003-06-01~2005-04-01 |
55100-77E00-000 |
— | ||
| replacement | |||||
|
5
|
5
55100-77E01-000 PISTON / SEAL SET2003-06-01~2005-04-01 |
55100-77E01-000 |
from US $49.43 |
||
|
6
|
6
55100-77820-000
Seal set,piston
2003-06-01~2005-04-01 |
55100-77820-000 |
— | ||
| replacement | |||||
|
6
|
6
55100-77821-000 SEAL SET,PISTON2003-06-01~2005-04-01 |
55100-77821-000 |
from US $8.96 |
||
|
7
|
7
55206-77E00-000 BOLT,SLIDE PIN2003-06-01~2005-04-01 |
55206-77E00-000 |
from US $6.66 |
||
|
8
|
8
55207-77E00-000 BOLT,SLIDE PIN2003-06-01~2005-04-01 |
55207-77E00-000 |
from US $9.95 |
||
|
9
|
9
55208-77E00-000 BUSH2003-06-01~2005-04-01 |
55208-77E00-000 |
from US $7.51 |
||
|
10
|
10
55201-77E00-000 BOOT,PIN2003-06-01~2005-04-01 |
55201-77E00-000 |
from US $2.88 |
||
|
11
|
11
55234-77E00-000 LINER,PAD2003-06-01~2005-04-01 |
55234-77E00-000 |
from US $6.40 |
||
|
12
|
12
55235-77E00-000 LINER,PAD2003-06-01~2005-04-01 |
55235-77E00-000 |
from US $6.40 |
||
|
13
|
13
55200-65D50-000
Pad set,disc brake
2003-06-01~2005-04-01 |
55200-65D50-000 |
— | ||
| replacements | |||||
|
13
|
13
55200-65D51-000 PAD SET,DISC BRAKE2003-06-01~2005-04-01 |
55200-65D51-000 |
from US $115.99 |
||
|
13
|
13
55200-65DB4-000 PAD SET,DISC BRAKE2003-06-01~2005-04-01 |
55200-65DB4-000 |
US $163.20 |
||
|
14
|
14
55211-65D13-000
DISCFRONT BRAKE
2003-06-01~2005-04-01 |
55211-65D13-000 |
— | ||
| replacement | |||||
|
14
|
14
55211-65D14-000 DISC,FR BRAKE2003-06-01~2005-04-01 |
55211-65D14-000 |
from US $198.72 |
||
|
15
|
15
55221-65D00-000 COVER,BRAKE DISC DUST,R2003-06-01~2005-04-01 |
55221-65D00-000 |
from US $27.23 |
||
|
16
|
16
55222-65D00-000 COVER,BRAKE DISC DUST,L2003-06-01~2005-04-01 |
55222-65D00-000 |
from US $22.73 |
||
|
17
|
17
09117-10042-000 BOLT(10X25)2003-06-01~2005-04-01 |
09117-10042-000 |
from US $1.01 |
||
|
18
|
18
09117-12012-000 BOLT(12X32)2003-06-01~2005-04-01 |
09117-12012-000 |
from US $2.08 |
||
