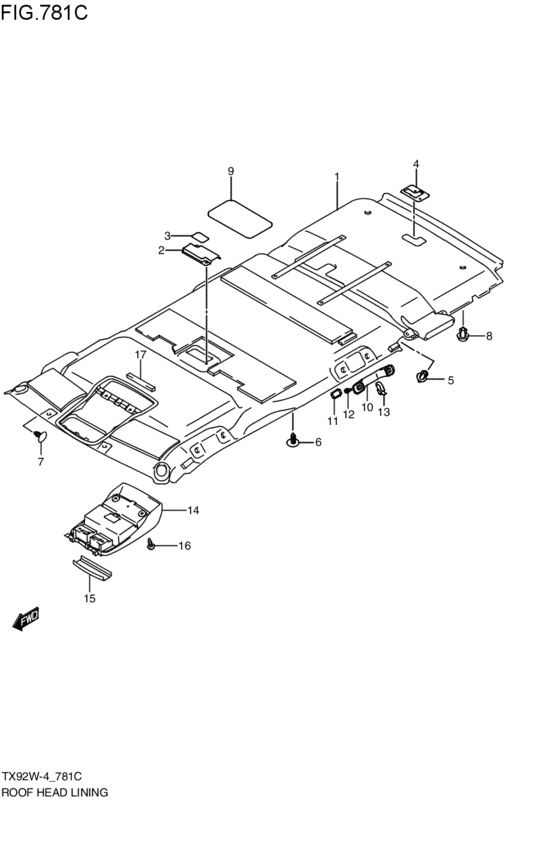

headlining (2003-06-01~2005-04-01) Diagram Suzuki ESCUDO
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- H27A
- deice
- NDEICE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
78100-52830-R8H
HEADLINING ASSY,ROOF
ベ-ジユ; 2003-06-01~2005-04-01 |
78100-52830-R8H |
— | ||
|
1
|
1
78100-52830-6GS
HEADLINING ASSY,ROOF
グレ-; 2003-06-01~2005-04-01 |
78100-52830-6GS |
— | ||
|
2
|
2
78131-65D10-000 RETAINER,DOME LAMP2003-06-01~2005-04-01 |
78131-65D10-000 |
US $8.10 |
||
|
3
|
3
78133-65D00-000 TAPE,DOME LAMP2003-06-01~2005-04-01 |
78133-65D00-000 |
US $9.97 |
||
|
4
|
4
78112-74F00-000 RETAINER,LUGGAGE LAMP2003-06-01~2005-04-01 |
78112-74F00-000 |
US $6.04 |
||
|
5
|
5
09409-07308-5PK CLIP(BLACK)ブラック; 2003-06-01~2005-04-01 |
09409-07308-5PK |
from US $1.40 |
||
|
6
|
6
09409-06326-R8H CLIP(BEIGE)ベ-ジユ; 2003-06-01~2005-04-01 |
09409-06326-R8H |
from US $1.08 |
||
|
6
|
6
09409-06326-6GS CLIP(GRAY)グレ-; 2003-06-01~2005-04-01 |
09409-06326-6GS |
from US $1.37 |
||
|
7
|
7
09409-06310-R8H
Clip(beige)
ベ-ジユ; 2003-06-01~2005-04-01 |
09409-06310-R8H |
— | ||
|
7
|
7
09409-06310-6GS CLIP(GRAY)グレ-; 2003-06-01~2005-04-01 |
09409-06310-6GS |
from US $1.49 |
||
|
8
|
8
09409-06322-R8H CLIP(BEIGE)ベ-ジユ; 2003-06-01~2005-04-01 |
09409-06322-R8H |
from US $1.19 |
||
|
8
|
8
09409-06322-6GS CLIP(GRAY)グレ-; 2003-06-01~2005-04-01 |
09409-06322-6GS |
from US $1.87 |
||
|
9
|
9
78162-65D00-000 SHEET,ROOF SILENCER2003-06-01~2005-04-01 |
78162-65D00-000 |
US $65.50 |
||
|
10
|
10
76411-50E00-R8H GRIP,ASSTベ-ジユ; 2003-06-01~2005-04-01 |
76411-50E00-R8H |
from US $8.66 |
||
|
10
|
10
76411-50E00-6GS GRIP,ASSTグレ-; 2003-06-01~2005-04-01 |
76411-50E00-6GS |
from US $8.51 |
||
|
11
|
11
76412-50E00-R8H CAP,ASSISTANT GRIPベ-ジユ; 2003-06-01~2005-04-01 |
76412-50E00-R8H |
from US $1.58 |
||
|
11
|
11
76412-50E00-6GS CAP,ASSISTANT GRIPグレ-; 2003-06-01~2005-04-01 |
76412-50E00-6GS |
from US $1.60 |
||
|
12
|
12
02162-06203-000
Bolt
2003-06-01~2005-04-01 |
02162-06203-000 |
— | ||
| replacement | |||||
|
12
|
12
02162-0620C-000 SCREW2003-06-01~2005-04-01 |
02162-0620C-000 |
from US $0.83 |
||
|
13
|
13
76421-60G00-R8H HOOK,COAT HANGERベ-ジユ; 2003-06-01~2005-04-01 |
76421-60G00-R8H |
from US $2.21 |
||
|
13
|
13
76421-60G00-6GS HOOK,COAT HANGERグレ-; 2003-06-01~2005-04-01 |
76421-60G00-6GS |
from US $2.03 |
||
|
14
|
14
78170-65DB0-R8H
BOX,OVER HEAD
ベ-ジユ; 2003-06-01~2005-04-01 |
78170-65DB0-R8H |
— | ||
|
14
|
14
78170-65DB0-6GS
BOX,OVER HEAD
グレ-; 2003-06-01~2005-04-01 |
78170-65DB0-6GS |
— | ||
|
15
|
15
78171-65DA0-000
LENS,MAP LAMP
2003-06-01~2005-04-01 |
78171-65DA0-000 |
— | ||
|
16
|
16
09136-05063-000 SCREW(5X16)2003-06-01~2005-04-01 |
09136-05063-000 |
from US $0.77 |
||
|
17
|
17
78163-65DA0-000
PAD,OVER HEAD CONSOLE STAY
2003-06-01~2005-04-01 |
78163-65DA0-000 |
— | ||
