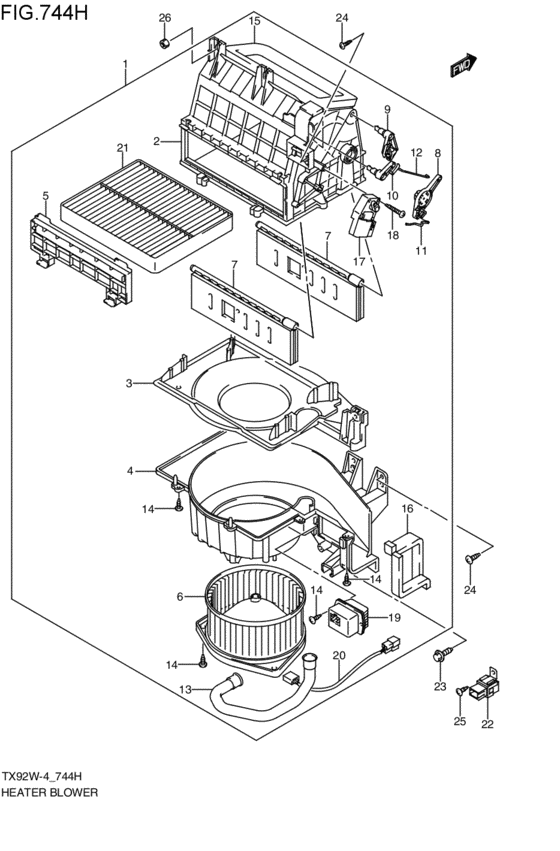

heater bloy (2003-06-01~2005-04-01) Diagram Suzuki ESCUDO
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- H27A
- deice
- NDEICE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
74200-54J01-000
Blower unit
2003-06-01~2005-04-01 |
74200-54J01-000 |
— | ||
|
2
|
2
74211-54J00-000
CASE,INTAKE
2003-06-01~2005-04-01 |
74211-54J00-000 |
— | ||
|
3
|
3
74212-54J00-000
スクロール,アッパ
2003-06-01~2004-12-01 |
74212-54J00-000 |
— | ||
| replacement | |||||
|
3
|
3
74212-54J01-000
SCROLL,UPPER
2003-06-01~2004-12-01 |
74212-54J01-000 |
— | ||
|
3
|
3
74212-54J01-000
SCROLL,UPPER
2004-12-01~2005-04-01 |
74212-54J01-000 |
— | ||
|
4
|
4
74213-54J00-000
SCROLL,LOWER
2003-06-01~2005-04-01 |
74213-54J00-000 |
— | ||
|
5
|
5
74214-54J00-000 COVER,FILTER2003-06-01~2005-04-01 |
74214-54J00-000 |
from US $30.36 |
||
|
6
|
6
74250-54J00-000 MOTOR,FAN2003-06-01~2005-04-01 |
74250-54J00-000 |
US $340.40 |
||
|
7
|
7
74271-54J00-000 DOOR,MODE2003-06-01~2005-04-01 |
74271-54J00-000 |
from US $11 |
||
|
8
|
8
74281-54J00-000 LEVER,MAIN2003-06-01~2005-04-01 |
74281-54J00-000 |
from US $4.64 |
||
|
9
|
9
74282-54J00-000 LEVER,DR NO.12003-06-01~2005-04-01 |
74282-54J00-000 |
US $6.51 |
||
|
10
|
10
74283-54J00-000
Lever,door no.2
2003-06-01~2005-04-01 |
74283-54J00-000 |
— | ||
|
11
|
11
74284-54J00-000 ROD2003-06-01~2005-04-01 |
74284-54J00-000 |
US $6.15 |
||
|
12
|
12
74285-54J00-000 ROD,DOOR LEVER2003-06-01~2005-04-01 |
74285-54J00-000 |
US $5.85 |
||
|
13
|
13
74251-54J00-000
HOSE,AIR
2003-06-01~2005-04-01 |
74251-54J00-000 |
— | ||
|
14
|
14
02112-05123-000
Screw 5x12
2003-06-01~2005-04-01 |
02112-05123-000 |
— | ||
| replacement | |||||
|
14
|
14
02112-0512A-000 SCREW2003-06-01~2005-04-01 |
02112-0512A-000 |
from US $0.80 |
||
|
15
|
15
74215-54J00-000 PACKING,INTAKE2003-06-01~2005-04-01 |
74215-54J00-000 |
US $4.37 |
||
|
16
|
16
74216-54J00-000 PACKING,JOINT2003-06-01~2005-04-01 |
74216-54J00-000 |
US $2.72 |
||
|
17
|
17
95652-54J00-000 ACTUATOR2003-06-01~2005-04-01 |
95652-54J00-000 |
from US $69.41 |
||
|
18
|
18
74175-54J00-000 SCREW2003-06-01~2005-04-01 |
74175-54J00-000 |
US $3.24 |
||
|
19
|
19
95626-65D00-000 DRIVER,BLOWER FAN2003-06-01~2005-04-01 |
95626-65D00-000 |
from US $98.40 |
||
|
20
|
20
74252-54J00-000
WIRE HARNESS
2003-06-01~2005-04-01 |
74252-54J00-000 |
— | ||
|
21
|
21
95861-54J00-000 FILTER2003-06-01~2005-04-01 |
95861-54J00-000 |
from US $33.60 |
||
|
22
|
22
74291-54G00-000 RELAY,BLOWER MOTOR2003-06-01~2005-04-01 |
74291-54G00-000 |
from US $17.69 |
||
|
23
|
23
09136-06140-000 SCREW(6X25)2003-06-01~2005-04-01 |
09136-06140-000 |
US $18.80 |
||
|
24
|
24
03541-05163-000
Screw
2003-06-01~2005-04-01 |
03541-05163-000 |
— | ||
| replacement | |||||
|
24
|
24
03541-0516A-000 SCREW2003-06-01~2005-04-01 |
03541-0516A-000 |
from US $0.76 |
||
|
25
|
25
03541-05123-000
Screw
2003-06-01~2005-04-01 |
03541-05123-000 |
— | ||
| replacement | |||||
|
25
|
25
03541-0512B-000 SCREW2003-06-01~2005-04-01 |
03541-0512B-000 |
from US $0.76 |
||
|
26
|
26
09159-06081-000 NUT2003-06-01~2005-04-01 |
09159-06081-000 |
from US $1.31 |
||
