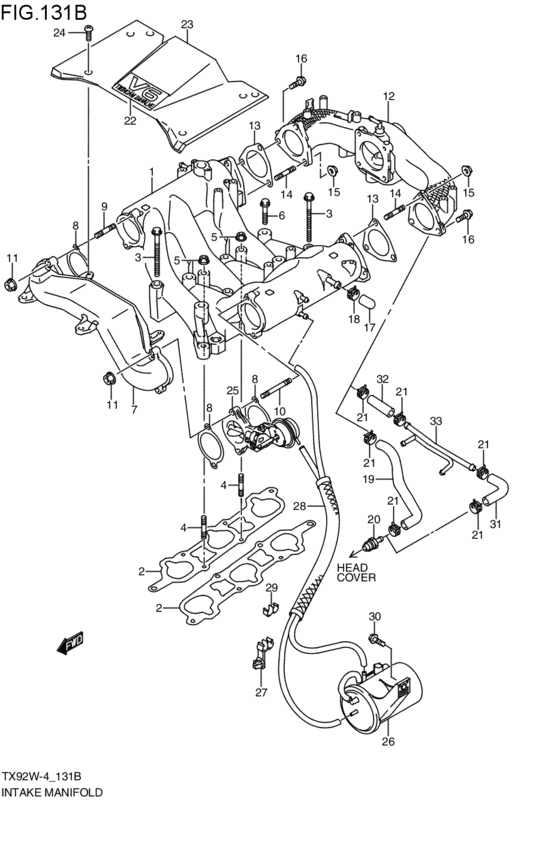

intake manifold (2003-06-01~2005-04-01) Diagram Suzuki ESCUDO
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- H27A
- deice
- NDEICE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13110-52D10-000
MANIFOLD,INTK
2003-06-01~2005-04-01 |
13110-52D10-000 |
— | ||
|
2
|
2
13119-77E00-000 GASKET,INTK MANF2003-06-01~2005-04-01 |
13119-77E00-000 |
from US $13.43 |
||
|
3
|
3
09103-08230-000 BOLT(8X100)Bolt (8x100) 2003-06-01~2005-04-01 |
09103-08230-000 |
from US $1.24 |
||
|
4
|
4
01421-08853-000
Stud bolt
2003-06-01~2005-04-01 |
01421-08853-000 |
— | ||
| replacement | |||||
|
4
|
4
01421-0885A-000 BOLT,STUD2003-06-01~2005-04-01 |
01421-0885A-000 |
from US $6.46 |
||
|
5
|
5
08316-10083-000
Nut
2003-06-01~2005-04-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
5
|
5
08316-1008B-000 NUT2003-06-01~2005-04-01 |
08316-1008B-000 |
from US $0.76 |
||
|
6
|
6
01550-08453-000
Bolt,cylinder h
2003-06-01~2005-04-01 |
01550-08453-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0845B-000 Bolt2003-06-01~2005-04-01 |
01550-0845B-000 |
from US $1.06 |
||
|
6
|
6
01550-0845A-000 BoltBolt, oil pump (s) 2003-06-01~2005-04-01 |
01550-0845A-000 |
US $5.03 |
||
|
7
|
7
13131-67D10-000 PIPE,SURGE TANK2003-06-01~2005-04-01 |
13131-67D10-000 |
from US $60.64 |
||
|
8
|
8
13139-67D00-000 GASKET,SURGE TANK PIPE2003-06-01~2005-04-01 |
13139-67D00-000 |
from US $2.72 |
||
|
9
|
9
01421-08253-000
Stud bolt, no.2
2003-06-01~2005-04-01 |
01421-08253-000 |
— | ||
| replacement | |||||
|
9
|
9
01421-0825A-000 BOLT,STUD2003-06-01~2005-04-01 |
01421-0825A-000 |
from US $1.28 |
||
|
10
|
10
01421-08403-000
Stud bolt (l:40)
2003-06-01~2005-04-01 |
01421-08403-000 |
— | ||
| replacement | |||||
|
10
|
10
01421-0840A-000 BOLT,STUDStud bolt (8x40) 2003-06-01~2005-04-01 |
01421-0840A-000 |
from US $4.13 |
||
|
11
|
11
08316-10083-000
Nut
2003-06-01~2005-04-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
11
|
11
08316-1008B-000 NUT2003-06-01~2005-04-01 |
08316-1008B-000 |
from US $0.76 |
||
|
12
|
12
13140-52D00-000
COLLECTOR,INTAKE
2003-06-01~2005-04-01 |
13140-52D00-000 |
— | ||
|
13
|
13
13122-67D00-000 GASKET,COLLECTOR2003-06-01~2005-04-01 |
13122-67D00-000 |
from US $6.14 |
||
|
14
|
14
01421-08253-000
Stud bolt, no.2
2003-06-01~2005-04-01 |
01421-08253-000 |
— | ||
| replacement | |||||
|
14
|
14
01421-0825A-000 BOLT,STUD2003-06-01~2005-04-01 |
01421-0825A-000 |
from US $1.28 |
||
|
15
|
15
08316-10083-000
Nut
2003-06-01~2005-04-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
15
|
15
08316-1008B-000 NUT2003-06-01~2005-04-01 |
08316-1008B-000 |
from US $0.76 |
||
|
16
|
16
01550-08253-000
Bolt, rear
2003-06-01~2005-04-01 |
01550-08253-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0825B-000 Bolt2003-06-01~2005-04-01 |
01550-0825B-000 |
from US $1.06 |
||
|
16
|
16
01550-0825A-000 Bolt2003-06-01~2005-04-01 |
01550-0825A-000 |
from US $0.47 |
||
|
17
|
17
09251-09003-000 PLUG2003-06-01~2005-04-01 |
09251-09003-000 |
from US $1.44 |
||
|
18
|
18
09401-13414-000 CLIPClip, pcv hose 2003-06-01~2005-04-01 |
09401-13414-000 |
from US $1.60 |
||
|
19
|
19
11190-77820-000 HOSE&PIPE SET,PCV H272003-06-01~2004-09-01 |
11190-77820-000 |
from US $38.72 |
||
|
20
|
20
18118-65D00-000 VALVE,PCV2003-06-01~2005-04-01 |
18118-65D00-000 |
US $35.51 |
||
| replacement | |||||
|
20
|
20
18118-65D01-000 VALVEPCV2003-06-01~2005-04-01 |
18118-65D01-000 |
from US $47.72 |
||
|
21
|
21
09401-13414-000 CLIPClip, pcv hose 2003-06-01~2004-09-01 |
09401-13414-000 |
from US $1.60 |
||
|
22
|
22
11965-77E11-000 LABEL,V62003-06-01~2005-04-01 |
11965-77E11-000 |
from US $3.20 |
||
|
23
|
23
13170-77E02-000 COVER,SURGE TANK2003-06-01~2005-04-01 |
13170-77E02-000 |
from US $18.79 |
||
|
24
|
24
09125-06105-000 SCREW(6X20)2003-06-01~2005-04-01 |
09125-06105-000 |
from US $1.60 |
||
|
25
|
25
13460-52D00-000 VALVE,INTAKE CONTROL2003-06-01~2005-04-01 |
13460-52D00-000 |
from US $81 |
||
|
26
|
26
13480-67D00-000
TANK ASSY,VACUUM
2003-06-01~2005-04-01 |
13480-67D00-000 |
— | ||
|
27
|
27
13482-52D00-000
CLIP,VACUUM HOSE
2003-06-01~2005-04-01 |
13482-52D00-000 |
— | ||
|
28
|
28
13481-52D00-000
HOSE,VACUUM
2003-06-01~2005-04-01 |
13481-52D00-000 |
— | ||
|
29
|
29
09408-00033-000 CLAMPClamp 2003-06-01~2005-04-01 |
09408-00033-000 |
from US $1.60 |
||
|
30
|
30
09118-06106-000 BOLT(6X16)2003-06-01~2005-04-01 |
09118-06106-000 |
from US $1.12 |
||
|
31
|
31
11193-77E10-000 HOSE,PCV NO.12004-09-01~2005-04-01 |
11193-77E10-000 |
US $8.35 |
||
|
32
|
32
11194-77E10-000 HOSE,PCV NO.22004-09-01~2005-04-01 |
11194-77E10-000 |
US $7.40 |
||
|
33
|
33
11195-77E10-000
PIPE,PCV
2004-09-01~2005-04-01 |
11195-77E10-000 |
— | ||
