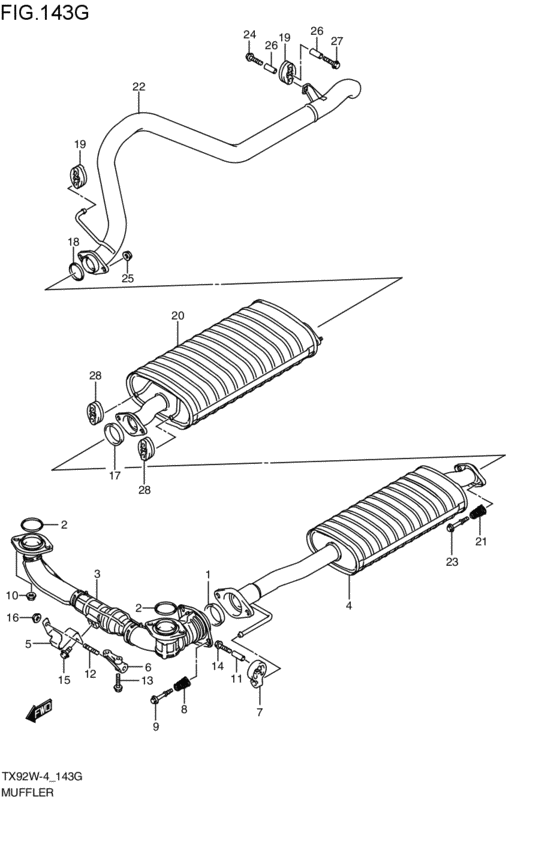

muffler (2003-06-01~2005-04-01) Diagram Suzuki ESCUDO
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- H27A
- deice
- NDEICE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14183-52D00-000 RING,SEAL EXH PIPE2003-06-01~2005-04-01 |
14183-52D00-000 |
from US $15.57 |
||
|
2
|
2
14184-67D00-000 GASKET,MUFFLER2003-06-01~2005-04-01 |
14184-67D00-000 |
from US $8.80 |
||
|
3
|
3
14190-52D01-000 PIPE,EXH NO.12003-06-01~2005-04-01 |
14190-52D01-000 |
from US $284.92 |
||
|
4
|
4
14250-52D20-000 PIPE,EXH NO.22003-06-01~2005-04-01 |
14250-52D20-000 |
from US $320.94 |
||
|
5
|
5
14272-52D00-000
スチフナ,エキゾーストパイプ
2003-06-01~2005-02-01 |
14272-52D00-000 |
— | ||
| replacement | |||||
|
5
|
5
14272-52D01-000
STIFFENER,EXH PIPE
2003-06-01~2005-02-01 |
14272-52D01-000 |
— | ||
|
5
|
5
14272-52D01-000
STIFFENER,EXH PIPE
2005-02-01~2005-04-01 |
14272-52D01-000 |
— | ||
|
6
|
6
14272-52D21-000
BRACKET,EXH PIPE
2003-06-01~2005-04-01 |
14272-52D21-000 |
— | ||
|
7
|
7
14281-52D00-000 MOUNTING,MUF2003-06-01~2005-04-01 |
14281-52D00-000 |
from US $6.28 |
||
|
8
|
8
14492-67D00-000 SPRING,EXH PIPE2003-06-01~2005-04-01 |
14492-67D00-000 |
from US $6.21 |
||
|
9
|
9
09119-10041-000 BOLT(10X65)2003-06-01~2005-04-01 |
09119-10041-000 |
from US $5.18 |
||
|
10
|
10
09159-10098-000 NUT2003-06-01~2005-04-01 |
09159-10098-000 |
from US $1.28 |
||
|
11
|
11
09180-08057-000
Spacer
2003-06-01~2005-04-01 |
09180-08057-000 |
— | ||
| replacement | |||||
|
11
|
11
09180-08227-000 SPACER(8.2X12.5X23.5)2003-06-01~2005-04-01 |
09180-08227-000 |
from US $1.04 |
||
|
12
|
12
01411-10203-000
Bolt,stud
2003-06-01~2005-04-01 |
01411-10203-000 |
— | ||
| replacement | |||||
|
12
|
12
01411-1020A-000 BOLT,STUD2003-06-01~2005-04-01 |
01411-1020A-000 |
US $1.52 |
||
|
13
|
13
01550-08303-000
Bolt
2003-06-01~2005-04-01 |
01550-08303-000 |
— | ||
| replacements | |||||
|
13
|
13
01550-0830B-000 Bolt2003-06-01~2005-04-01 |
01550-0830B-000 |
from US $1.06 |
||
|
13
|
13
01550-0830A-000 BoltBolt, mount oil seal cover 2003-06-01~2005-04-01 |
01550-0830A-000 |
from US $1.06 |
||
|
14
|
14
01550-08353-000
Bolt, rear
2003-06-01~2005-04-01 |
01550-08353-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0835B-000 Bolt2003-06-01~2005-04-01 |
01550-0835B-000 |
from US $1.28 |
||
|
14
|
14
01550-0835A-000 Bolt2003-06-01~2005-04-01 |
01550-0835A-000 |
from US $1.06 |
||
|
15
|
15
01550-10203-000
Bolt
2003-06-01~2005-04-01 |
01550-10203-000 |
— | ||
| replacement | |||||
|
15
|
15
01550-1020A-000 BoltBolt, bal sprocket 2003-06-01~2005-04-01 |
01550-1020A-000 |
from US $0.96 |
||
|
16
|
16
08316-10103-000
Nut
2003-06-01~2005-04-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
16
|
16
08316-1010B-000 NUT2003-06-01~2005-04-01 |
08316-1010B-000 |
from US $0.80 |
||
|
17
|
17
14183-65D00-000 RING,SEAL EXH PIPE2003-06-01~2004-05-01 |
14183-65D00-000 |
from US $15.93 |
||
|
17
|
17
14183-65D10-000 SEAL RING,MUFFLER2004-05-01~2005-04-01 |
14183-65D10-000 |
from US $21.53 |
||
|
18
|
18
14184-67D00-000 GASKET,MUFFLER2003-06-01~2005-04-01 |
14184-67D00-000 |
from US $8.80 |
||
|
19
|
19
14281-58B01-000 MOUNTING,MUF2003-06-01~2005-04-01 |
14281-58B01-000 |
from US $16.54 |
||
|
20
|
20
14300-52D30-000 MUFFLER2003-06-01~2005-04-01 |
14300-52D30-000 |
from US $340.97 |
||
|
21
|
21
14492-67D00-000 SPRING,EXH PIPE2003-06-01~2005-04-01 |
14492-67D00-000 |
from US $6.21 |
||
|
22
|
22
14630-52D21-000 PIPE,TAIL2003-06-01~2005-04-01 |
14630-52D21-000 |
from US $127.58 |
||
|
23
|
23
09119-10041-000 BOLT(10X65)2003-06-01~2005-04-01 |
09119-10041-000 |
from US $5.18 |
||
|
24
|
24
09139-08019-000 SCREW(8X35)2003-06-01~2005-04-01 |
09139-08019-000 |
from US $1.01 |
||
|
25
|
25
09159-10049-000 Nut2003-06-01~2005-04-01 |
09159-10049-000 |
US $1.28 |
||
| replacement | |||||
|
25
|
25
09159-10102-000 NUT2003-06-01~2005-04-01 |
09159-10102-000 |
from US $1.28 |
||
|
26
|
26
09180-08057-000
Spacer
2003-06-01~2005-04-01 |
09180-08057-000 |
— | ||
| replacement | |||||
|
26
|
26
09180-08227-000 SPACER(8.2X12.5X23.5)2003-06-01~2005-04-01 |
09180-08227-000 |
from US $1.04 |
||
|
27
|
27
01550-08353-000
Bolt, rear
2003-06-01~2005-04-01 |
01550-08353-000 |
— | ||
| replacements | |||||
|
27
|
27
01550-0835B-000 Bolt2003-06-01~2005-04-01 |
01550-0835B-000 |
from US $1.28 |
||
|
27
|
27
01550-0835A-000 Bolt2003-06-01~2005-04-01 |
01550-0835A-000 |
from US $1.06 |
||
|
28
|
28
14281-58B20-000 MOUNTING,MUF2003-06-01~2005-04-01 |
14281-58B20-000 |
from US $8.51 |
||
