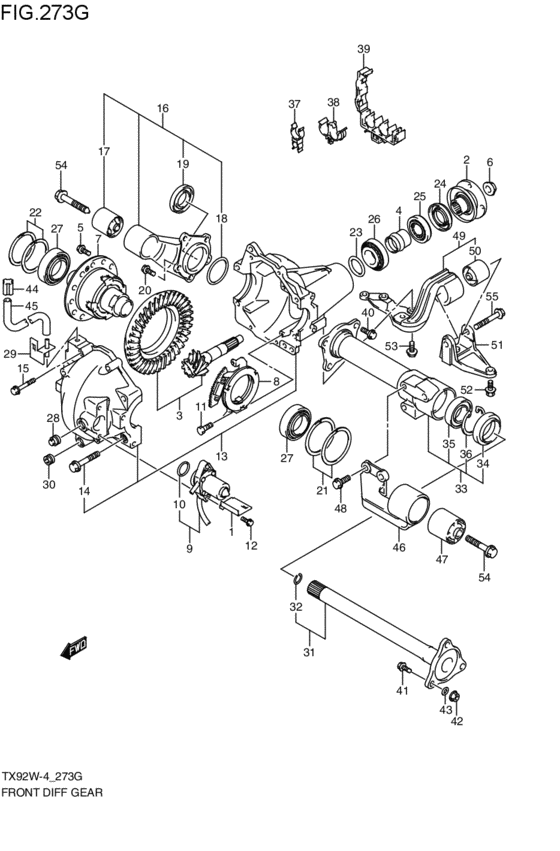

フロントデファレンシャルギヤ (2003-06-01~2005-04-01) Diagram Suzuki ESCUDO
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- H27A
- deice
- NDEICE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27571-54J00-000
BRACKET,DIFF MOTOR
2003-06-01~2005-04-01 |
27571-54J00-000 |
— | ||
|
2
|
2
27110-56B01-000 FLANGE,UNIVERSAL JOINT2003-06-01~2005-04-01 |
27110-56B01-000 |
from US $44.03 |
||
|
3
|
3
27300-54830-000
BEVEL PINION&GEAR SET
2003-06-01~2005-04-01 |
27300-54830-000 |
— | ||
|
4
|
4
27315-78E50-000 SPACER,DRIVE BEVEL PINION2003-06-01~2005-04-01 |
27315-78E50-000 |
from US $16.67 |
||
|
5
|
5
09103-10184-000 BOLT(10X25)2003-06-01~2005-04-01 |
09103-10184-000 |
from US $2.34 |
||
| replacement | |||||
|
5
|
5
09103-10253-000
Bolt,10x28
2003-06-01~2005-04-01 |
09103-10253-000 |
— | ||
|
6
|
6
27375-60A00-000 NUT,UNIVERSAL JOINT2003-06-01~2005-04-01 |
27375-60A00-000 |
from US $6.71 |
||
|
7
|
7
27410-54J00-000 CASE,FREE AXLE2003-06-01~2005-04-01 |
27410-54J00-000 |
from US $552.89 |
||
|
8
|
8
27750-54J00-000 ACTUATOR ASSY,FREE AXLE2003-06-01~2005-04-01 |
27750-54J00-000 |
from US $107.37 |
||
|
9
|
9
27760-54J00-000 MOTOR ASSY,FREE AXLE2003-06-01~2005-04-01 |
27760-54J00-000 |
from US $195.04 |
||
|
10
|
10
27761-54J00-000 O-RING2003-06-01~2005-04-01 |
27761-54J00-000 |
US $4.71 |
||
|
11
|
11
09100-06075-000 BOLT(6X14)Bolt, carrier (6x14) 2003-06-01~2005-04-01 |
09100-06075-000 |
from US $0.68 |
||
|
12
|
12
01550-06203-000
Bolt
2003-06-01~2005-04-01 |
01550-06203-000 |
— | ||
| replacement | |||||
|
12
|
12
01550-0620B-000 BoltBolt, inspection cap 2003-06-01~2005-04-01 |
01550-0620B-000 |
from US $0.76 |
||
|
13
|
13
27450-54J00-000
キャリアアッシ,ディファレンシャル,フロント
2003-06-01~2005-04-01 |
27450-54J00-000 |
— | ||
| replacement | |||||
|
13
|
13
27450-54J01-000
CARRIER ASSY,DIFF,FR
2003-06-01~2005-04-01 |
27450-54J01-000 |
— | ||
|
14
|
14
09111-12010-000 BOLT(12X58)2003-06-01~2005-04-01 |
09111-12010-000 |
from US $2.43 |
||
|
15
|
15
01550-08503-000
Bolt
2003-06-01~2005-04-01 |
01550-08503-000 |
— | ||
| replacement | |||||
|
15
|
15
01550-0850B-000 Bolt2003-06-01~2005-04-01 |
01550-0850B-000 |
from US $1.22 |
||
|
16
|
16
27610-54J00-000
RETAINER,DIFF SIDE,R
2003-06-01~2005-04-01 |
27610-54J00-000 |
— | ||
|
17
|
17
27550-60A00-000 MOUNTING,DIFF2003-06-01~2005-04-01 |
27550-60A00-000 |
from US $39.22 |
||
|
18
|
18
09280-74002-000 O RING(D:2,ID:74)O ring 2003-06-01~2005-04-01 |
09280-74002-000 |
from US $4.07 |
||
|
19
|
19
09283-35052-000 SEAL,OIL(35X62X14.8)2003-06-01~2005-04-01 |
09283-35052-000 |
from US $6.68 |
||
|
20
|
20
01550-10203-000
Bolt
2003-06-01~2005-04-01 |
01550-10203-000 |
— | ||
| replacement | |||||
|
20
|
20
01550-1020A-000 BoltBolt, bal sprocket 2003-06-01~2005-04-01 |
01550-1020A-000 |
from US $0.96 |
||
|
21
|
21
27453-54J00-275 SHIM,T:2.752003-06-01~2005-04-01 |
27453-54J00-275 |
from US $5.47 |
||
|
21
|
21
27453-54J00-285 SHIM,T:2.852003-06-01~2005-04-01 |
27453-54J00-285 |
from US $5.74 |
||
|
21
|
21
27453-54J00-295 SHIM,T:2.952003-06-01~2005-04-01 |
27453-54J00-295 |
from US $4.11 |
||
|
21
|
21
27453-54J00-300 SHIM,T:3.002003-06-01~2005-04-01 |
27453-54J00-300 |
from US $5.96 |
||
|
21
|
21
27453-54J00-305 SHIM,T:3.052003-06-01~2005-04-01 |
27453-54J00-305 |
from US $5.85 |
||
|
21
|
21
27453-54J00-315 SHIM,T:3.152003-06-01~2005-04-01 |
27453-54J00-315 |
from US $5.99 |
||
|
21
|
21
27453-54J00-325 SHIM,T:3.252003-06-01~2005-04-01 |
27453-54J00-325 |
from US $5.85 |
||
|
22
|
22
27453-54J10-175 SHIM,T:1.752003-06-01~2005-04-01 |
27453-54J10-175 |
from US $11.52 |
||
|
22
|
22
27453-54J10-185 SHIM,T:1.852003-06-01~2005-04-01 |
27453-54J10-185 |
from US $5.90 |
||
|
22
|
22
27453-54J10-195 SHIM,T:1.952003-06-01~2005-04-01 |
27453-54J10-195 |
from US $6.12 |
||
|
22
|
22
27453-54J10-200 SHIM,T:2.002003-06-01~2005-04-01 |
27453-54J10-200 |
from US $6.17 |
||
|
22
|
22
27453-54J10-205 SHIM,T:2.052003-06-01~2005-04-01 |
27453-54J10-205 |
from US $6.44 |
||
|
22
|
22
27453-54J10-215 SHIM,T:2.152003-06-01~2005-04-01 |
27453-54J10-215 |
from US $6.44 |
||
|
22
|
22
27453-54J10-225 SHIM,T:2.252003-06-01~2005-04-01 |
27453-54J10-225 |
from US $5.67 |
||
|
23
|
23
09181-35101-000 SHIM(35X42X0.5)Shim (t:0.5) 2003-06-01~2005-04-01 |
09181-35101-000 |
from US $1.49 |
||
|
23
|
23
09181-35111-000 SHIM(35X42X1)2003-06-01~2005-04-01 |
09181-35111-000 |
from US $2.24 |
||
|
23
|
23
09181-35112-000 SHIM(35X42X1.03)2003-06-01~2005-04-01 |
09181-35112-000 |
from US $2.24 |
||
|
23
|
23
09181-35114-000 SHIM(35X42X1.06)2003-06-01~2005-04-01 |
09181-35114-000 |
from US $1.46 |
||
|
23
|
23
09181-35115-000 SHIM(35X42X1.09)2003-06-01~2005-04-01 |
09181-35115-000 |
from US $2.24 |
||
|
23
|
23
09181-35117-000 SHIM(35X42X1.12)2003-06-01~2005-04-01 |
09181-35117-000 |
from US $1.44 |
||
|
23
|
23
09181-35118-000 SHIM(35X42X1.15)2003-06-01~2005-04-01 |
09181-35118-000 |
from US $1.76 |
||
|
23
|
23
09181-35119-000 SHIM(35X42X1.18)2003-06-01~2005-04-01 |
09181-35119-000 |
from US $1.82 |
||
|
23
|
23
09181-35121-000 SHIM(35X42X1.21)2003-06-01~2005-04-01 |
09181-35121-000 |
from US $1.58 |
||
|
23
|
23
09181-35122-000 SHIM(35X42X1.24)2003-06-01~2005-04-01 |
09181-35122-000 |
from US $1.76 |
||
|
23
|
23
09181-35124-000 SHIM(35X42X1.27)2003-06-01~2005-04-01 |
09181-35124-000 |
from US $1.69 |
||
|
23
|
23
09181-35125-000 SHIM(35X42X1.3)2003-06-01~2005-04-01 |
09181-35125-000 |
from US $1.76 |
||
|
24
|
24
09283-40027-000 SEAL,OIL(40x72x11x18)2003-06-01~2005-04-01 |
09283-40027-000 |
from US $7.54 |
||
|
25
|
25
09265-30017-000 BEARING(30X72X20.75)2003-06-01~2005-04-01 |
09265-30017-000 |
from US $32 |
||
|
26
|
26
09265-35011-000 BEARING(35X80X22.75)2003-06-01~2005-04-01 |
09265-35011-000 |
from US $40 |
||
|
27
|
27
09265-45002-000 BEARING(45.2X80X19.84)2003-06-01~2005-04-01 |
09265-45002-000 |
from US $45.60 |
||
|
28
|
28
27575-54J00-000
プラグ,オイルレベル
2003-06-01~2005-04-01 |
27575-54J00-000 |
— | ||
| replacement | |||||
|
28
|
28
27575-54J01-000 PLUG,OIL LEVEL2003-06-01~2005-04-01 |
27575-54J01-000 |
US $5.81 |
||
|
29
|
29
27895-54J00-000
UNION,DIFF BREATHER
2003-06-01~2005-04-01 |
27895-54J00-000 |
— | ||
|
30
|
30
09246-16010-000 PLUG2003-06-01~2005-04-01 |
09246-16010-000 |
US $4.37 |
||
| replacement | |||||
|
30
|
30
09246-16021-000 Plug,t/m Oil Drain2003-06-01~2005-04-01 |
09246-16021-000 |
from US $4.37 |
||
|
31
|
31
27470-54J00-000 SHAFT,FRONT DRIVE2003-06-01~2005-04-01 |
27470-54J00-000 |
US $164.13 |
||
|
32
|
32
44111-65D00-000 RING,SNAP2003-06-01~2005-04-01 |
44111-65D00-000 |
from US $1.60 |
||
|
33
|
33
27880-54J10-000
RETAINER,FR DRIVE SHAFT
2003-06-01~2005-04-01 |
27880-54J10-000 |
— | ||
|
34
|
34
09283-35052-000 SEAL,OIL(35X62X14.8)2003-06-01~2005-04-01 |
09283-35052-000 |
from US $6.68 |
||
|
35
|
35
08133-62067-000 BEARING2003-06-01~2005-04-01 |
08133-62067-000 |
from US $24 |
||
|
36
|
36
08331-41626-000
Ring 62mm
2003-06-01~2005-04-01 |
08331-41626-000 |
— | ||
| replacement | |||||
|
36
|
36
08331-4162A-000 CIRCLIP2003-06-01~2005-04-01 |
08331-4162A-000 |
from US $2.50 |
||
|
37
|
37
27892-65D00-000 CLAMP,DIFF BRTHR HOSE2003-06-01~2005-04-01 |
27892-65D00-000 |
US $1.68 |
||
|
38
|
38
27893-54J00-000
CLAMP,DIFF BRTHR HOS
2003-06-01~2005-04-01 |
27893-54J00-000 |
— | ||
|
39
|
39
09403-14313-000 CLAMP2003-06-01~2005-04-01 |
09403-14313-000 |
from US $2.40 |
||
|
40
|
40
01550-10203-000
Bolt
2003-06-01~2005-04-01 |
01550-10203-000 |
— | ||
| replacement | |||||
|
40
|
40
01550-1020A-000 BoltBolt, bal sprocket 2003-06-01~2005-04-01 |
01550-1020A-000 |
from US $0.96 |
||
|
41
|
41
09100-10262-000 BOLT(10X29)Bolt, arm knuckle tie-rod end 2003-06-01~2005-04-01 |
09100-10262-000 |
from US $1.19 |
||
|
42
|
42
08310-00103-000
Nut
2003-06-01~2005-04-01 |
08310-00103-000 |
— | ||
| replacements | |||||
|
42
|
42
08310-0010B-000 NUT2003-06-01~2005-04-01 |
08310-0010B-000 |
from US $0.83 |
||
|
42
|
42
08310-0010A-000 NUT2003-06-01~2005-04-01 |
08310-0010A-000 |
from US $0.80 |
||
|
43
|
43
08321-01103-000
Washer
2003-06-01~2005-04-01 |
08321-01103-000 |
— | ||
| replacements | |||||
|
43
|
43
08321-0110B-000 WASHER,LOCKWasher, knuckle end 2003-06-01~2005-04-01 |
08321-0110B-000 |
from US $0.96 |
||
|
43
|
43
08321-0110A-000 WASHER,LOCK2003-06-01~2005-04-01 |
08321-0110A-000 |
from US $0.96 |
||
|
44
|
44
27991-65D01-000 PLUG,BREATHER2003-06-01~2005-04-01 |
27991-65D01-000 |
from US $1.92 |
||
|
45
|
45
27891-54J00-000
HOSE,DIFF FR BREA
2003-06-01~2005-04-01 |
27891-54J00-000 |
— | ||
|
46
|
46
27621-65D00-000 BRACKET,MOUNTING,L2003-06-01~2005-04-01 |
27621-65D00-000 |
from US $57.69 |
||
|
47
|
47
27550-60A00-000 MOUNTING,DIFF2003-06-01~2005-04-01 |
27550-60A00-000 |
from US $39.22 |
||
|
48
|
48
01570-10303-000
Bolt
2003-06-01~2005-04-01 |
01570-10303-000 |
— | ||
| replacement | |||||
|
48
|
48
01570-1030A-000 Bolt2003-06-01~2005-04-01 |
01570-1030A-000 |
from US $1.12 |
||
|
49
|
49
27630-54J00-000
BRACKET,DIFF MOUNT RR UPPER
2003-06-01~2005-04-01 |
27630-54J00-000 |
— | ||
|
50
|
50
27550-52D00-000 MOUNTING,DIFF RR2003-06-01~2005-04-01 |
27550-52D00-000 |
from US $37.76 |
||
|
51
|
51
27641-54J00-000
BRACKET,DIFF MOUNT RR LOWER
2003-06-01~2005-04-01 |
27641-54J00-000 |
— | ||
|
52
|
52
27633-54J00-000
Bolt
2003-06-01~2005-04-01 |
27633-54J00-000 |
— | ||
|
53
|
53
01550-10203-000
Bolt
2003-06-01~2005-04-01 |
01550-10203-000 |
— | ||
| replacement | |||||
|
53
|
53
01550-1020A-000 BoltBolt, bal sprocket 2003-06-01~2005-04-01 |
01550-1020A-000 |
from US $0.96 |
||
|
54
|
54
09103-12033-000 BOLT(12X84)2003-06-01~2005-04-01 |
09103-12033-000 |
from US $5.49 |
||
|
55
|
55
09103-12068-000 BOLT(12X80)2003-06-01~2005-04-01 |
09103-12068-000 |
from US $3.20 |
||
