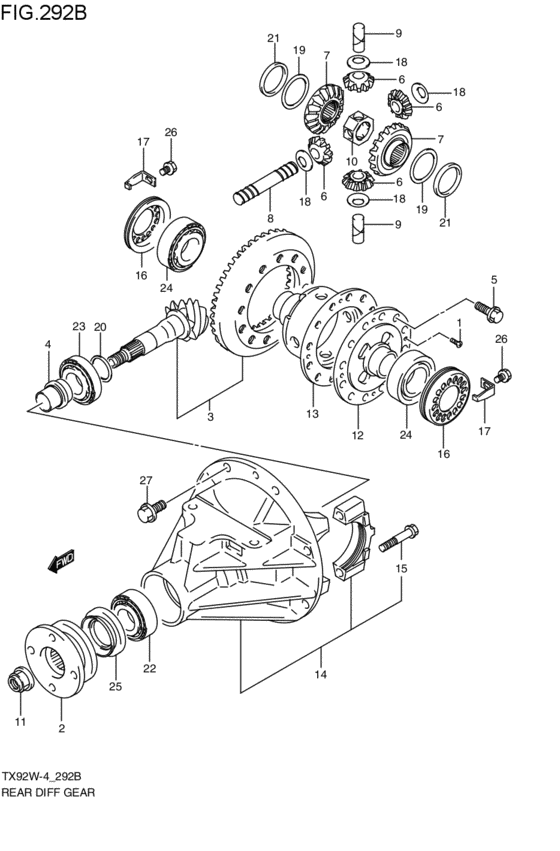

リヤデファレンシャルギヤ (2003-06-01~2005-04-01) Diagram Suzuki ESCUDO
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- H27A
- deice
- NDEICE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24728-65G20-000 SCREW,T/M LEFT CASE PLATE2003-06-01~2005-04-01 |
24728-65G20-000 |
from US $1.52 |
||
|
2
|
2
27110-68D20-000 FLANGE,UNIVERSAL JOINT2003-06-01~2005-04-01 |
27110-68D20-000 |
from US $57.08 |
||
|
3
|
3
27300-54850-000 BEVEL PINION&GEAR SET2003-06-01~2005-04-01 |
27300-54850-000 |
from US $662.90 |
||
|
4
|
4
27315-78E50-000 SPACER,DRIVE BEVEL PINION2003-06-01~2005-04-01 |
27315-78E50-000 |
from US $16.67 |
||
|
5
|
5
27323-54J00-000 BOLT,DRIVE BEVEL GEAR2003-06-01~2005-04-01 |
27323-54J00-000 |
from US $2.40 |
||
|
6
|
6
27331-68D00-000 PINION,DIFFERENTIAL2003-06-01~2005-04-01 |
27331-68D00-000 |
from US $56.52 |
||
|
7
|
7
27341-68D00-000 GEAR,DIFF2003-06-01~2005-04-01 |
27341-68D00-000 |
from US $62.44 |
||
|
8
|
8
27351-68D00-000 SHAFT,DIFF PINION NO.12003-06-01~2005-04-01 |
27351-68D00-000 |
from US $28.37 |
||
|
9
|
9
27355-68D00-000 SHAFT,DIFF PINION NO.22003-06-01~2005-04-01 |
27355-68D00-000 |
from US $22.95 |
||
|
10
|
10
27356-68D00-000 JOINT,DIFF PINION2003-06-01~2005-04-01 |
27356-68D00-000 |
from US $29.70 |
||
|
11
|
11
27375-60A00-000 NUT,UNIVERSAL JOINT2003-06-01~2005-04-01 |
27375-60A00-000 |
from US $6.71 |
||
|
12
|
12
27411-54J00-000 CASE,DIFF,L2003-06-01~2005-04-01 |
27411-54J00-000 |
from US $92.21 |
||
|
13
|
13
27421-54J00-000 CASE,DIFF,R2003-06-01~2005-04-01 |
27421-54J00-000 |
from US $204.24 |
||
|
14
|
14
27450-68D00-000 CARRIER ASSY,DIFF,RR2003-06-01~2005-04-01 |
27450-68D00-000 |
from US $190.78 |
||
|
15
|
15
09111-12010-000 BOLT(12X58)2003-06-01~2005-04-01 |
09111-12010-000 |
from US $2.43 |
||
|
16
|
16
27461-83000-000 ADJUSTER,DIFF SIDE BEARING2003-06-01~2005-04-01 |
27461-83000-000 |
from US $7.52 |
||
|
17
|
17
27462-63202-000 PLATE,BEARING LOCK2003-06-01~2005-04-01 |
27462-63202-000 |
from US $2.74 |
||
|
18
|
18
09164-19003-000 WASHER2003-06-01~2005-04-01 |
09164-19003-000 |
from US $1.92 |
||
|
19
|
19
09164-40010-000 WASHER2003-06-01~2005-04-01 |
09164-40010-000 |
from US $1.82 |
||
|
20
|
20
09181-35101-000 SHIM(35X42X0.5)Shim (t:0.5) 2003-06-01~2005-04-01 |
09181-35101-000 |
from US $1.49 |
||
|
20
|
20
09181-35111-000 SHIM(35X42X1)2003-06-01~2005-04-01 |
09181-35111-000 |
from US $2.24 |
||
|
20
|
20
09181-35112-000 SHIM(35X42X1.03)2003-06-01~2005-04-01 |
09181-35112-000 |
from US $2.24 |
||
|
20
|
20
09181-35114-000 SHIM(35X42X1.06)2003-06-01~2005-04-01 |
09181-35114-000 |
from US $1.46 |
||
|
20
|
20
09181-35115-000 SHIM(35X42X1.09)2003-06-01~2005-04-01 |
09181-35115-000 |
from US $2.24 |
||
|
20
|
20
09181-35117-000 SHIM(35X42X1.12)2003-06-01~2005-04-01 |
09181-35117-000 |
from US $1.44 |
||
|
20
|
20
09181-35118-000 SHIM(35X42X1.15)2003-06-01~2005-04-01 |
09181-35118-000 |
from US $1.76 |
||
|
20
|
20
09181-35119-000 SHIM(35X42X1.18)2003-06-01~2005-04-01 |
09181-35119-000 |
from US $1.82 |
||
|
20
|
20
09181-35121-000 SHIM(35X42X1.21)2003-06-01~2005-04-01 |
09181-35121-000 |
from US $1.58 |
||
|
20
|
20
09181-35122-000 SHIM(35X42X1.24)2003-06-01~2005-04-01 |
09181-35122-000 |
from US $1.76 |
||
|
20
|
20
09181-35124-000 SHIM(35X42X1.27)2003-06-01~2005-04-01 |
09181-35124-000 |
from US $1.69 |
||
|
20
|
20
09181-35125-000 SHIM(35X42X1.3)2003-06-01~2005-04-01 |
09181-35125-000 |
from US $1.76 |
||
|
21
|
21
09181-40187-000 SHIM(40X52X0.6)2003-06-01~2005-04-01 |
09181-40187-000 |
from US $2.05 |
||
|
21
|
21
09181-40188-000 SHIM(40X52X0.7)2003-06-01~2005-04-01 |
09181-40188-000 |
from US $1.49 |
||
|
21
|
21
09181-40190-000 SHIM(40X52X0.8)Shim (t:0.80) 2003-06-01~2005-04-01 |
09181-40190-000 |
from US $1.49 |
||
|
22
|
22
09265-30018-000 BEARING(30X72X20.75)2003-06-01~2005-04-01 |
09265-30018-000 |
from US $40.80 |
||
|
23
|
23
09265-35011-000 BEARING(35X80X22.75)2003-06-01~2005-04-01 |
09265-35011-000 |
from US $40 |
||
|
24
|
24
09265-45002-000 BEARING(45.2X80X19.84)2003-06-01~2005-04-01 |
09265-45002-000 |
from US $45.60 |
||
|
25
|
25
09283-40022-000 SEAL,OIL(40X72X18.5)2003-06-01~2005-04-01 |
09283-40022-000 |
from US $8.06 |
||
| replacement | |||||
|
25
|
25
09283-40027-000 SEAL,OIL(40x72x11x18)2003-06-01~2005-04-01 |
09283-40027-000 |
from US $7.54 |
||
|
26
|
26
01550-08123-000
Bolt
2003-06-01~2005-04-01 |
01550-08123-000 |
— | ||
| replacements | |||||
|
26
|
26
01550-0812B-000 BoltPlug, drain 2003-06-01~2005-04-01 |
01550-0812B-000 |
from US $0.96 |
||
|
26
|
26
01550-0812A-000 Bolt2003-06-01~2005-04-01 |
01550-0812A-000 |
from US $0.91 |
||
|
27
|
27
09112-10004-000 BOLT(10X35)2003-06-01~2005-04-01 |
09112-10004-000 |
US $26.50 |
||
