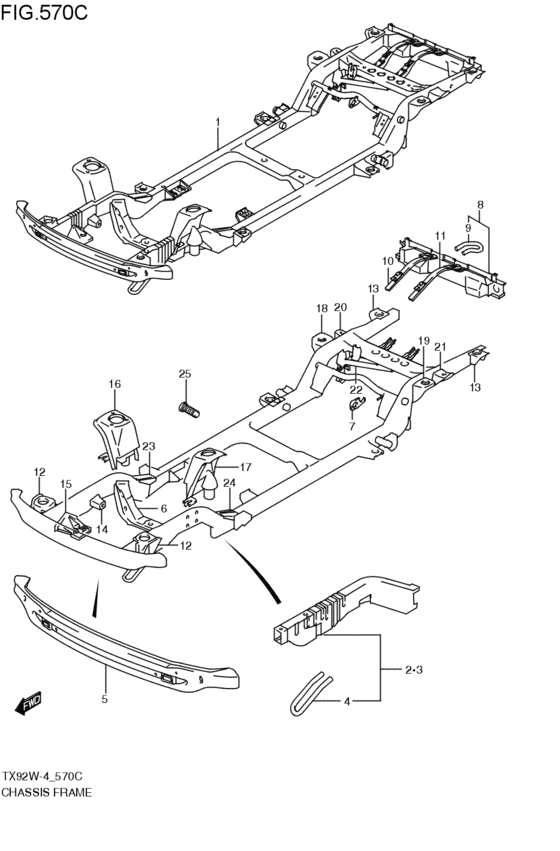

シャシフレ - ム (2003-06-01~2005-04-01) Diagram Suzuki ESCUDO
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- H27A
- deice
- NDEICE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57000-52D60-000
フレームアッシ
2003-06-01~2005-04-01 |
57000-52D60-000 |
— | ||
| replacement | |||||
|
1
|
1
57000-52D61-000
Frame assy
2003-06-01~2005-04-01 |
57000-52D61-000 |
— | ||
|
2
|
2
57110-52DV0-000 MEMBER,SIDE FRAME FR,R2003-06-01~2005-04-01 |
57110-52DV0-000 |
from US $251.48 |
||
|
3
|
3
57160-52DV0-000
MEMBER,SIDE FRAME FR,L
2003-06-01~2005-04-01 |
57160-52DV0-000 |
— | ||
|
4
|
4
57164-52D10-000 HOOK,FR TOWING2003-06-01~2005-04-01 |
57164-52D10-000 |
US $32.75 |
||
|
5
|
5
57210-52DV0-000
MEMBERFRONT BUMPER
2003-06-01~2005-04-01 |
57210-52DV0-000 |
— | ||
| replacement | |||||
|
5
|
5
57210-52DV1-000 MEMBER,FR BUMPER2003-06-01~2005-04-01 |
57210-52DV1-000 |
from US $254.99 |
||
|
6
|
6
57220-52D11-000 CROSSMEMBER,2ND2003-06-01~2005-04-01 |
57220-52D11-000 |
US $329.36 |
||
|
7
|
7
57240-52810-000
HOOK SET,FLOOR JOINT
2003-06-01~2005-04-01 |
57240-52810-000 |
— | ||
|
8
|
8
57260-52D00-000 CROSSMEMBER,TAIL2003-06-01~2005-04-01 |
57260-52D00-000 |
from US $138.47 |
||
|
9
|
9
57263-52D00-000 HOOK,RR TOWING2003-06-01~2005-04-01 |
57263-52D00-000 |
from US $14.04 |
||
|
10
|
10
57270-52D10-000 MEMBER,RR FRAME CTR,R2003-06-01~2005-04-01 |
57270-52D10-000 |
from US $70.25 |
||
|
11
|
11
57280-52D10-000 MEMBER,RR FRAME CTR,L2003-06-01~2005-04-01 |
57280-52D10-000 |
from US $70.25 |
||
|
12
|
12
57310-65D00-000 BRACKET,1ST MOUNTING2003-06-01~2005-04-01 |
57310-65D00-000 |
from US $19.76 |
||
|
13
|
13
57371-65D00-000 BRACKET,4TH MOUNTING2003-06-01~2005-04-01 |
57371-65D00-000 |
US $50.78 |
||
|
14
|
14
57410-65D00-000 BRACKET,FR DIFF MOUNTING2003-06-01~2005-04-01 |
57410-65D00-000 |
from US $24.75 |
||
|
15
|
15
57710-65D10-000 BRACKET,FR SUSPNSN FRAME2003-06-01~2005-04-01 |
57710-65D10-000 |
from US $22.46 |
||
|
16
|
16
57730-52D00-000
BRACKET,FR STRUT,R
2003-06-01~2005-04-01 |
57730-52D00-000 |
— | ||
|
17
|
17
57740-52D00-000
BRACKET,FR STRUT,L
2003-06-01~2005-04-01 |
57740-52D00-000 |
— | ||
|
18
|
18
57810-52D00-000
Bracket,rr coil spring,r
2003-06-01~2005-04-01 |
57810-52D00-000 |
— | ||
|
19
|
19
57820-52D00-000
BRACKET,RR COIL SPRING,L
2003-06-01~2005-04-01 |
57820-52D00-000 |
— | ||
|
20
|
20
57830-52D00-000
BRACKET,RR SHOCK ABS,R
2003-06-01~2005-04-01 |
57830-52D00-000 |
— | ||
|
21
|
21
57840-52D00-000
BRACKET,RR SHOCK ABS,L
2003-06-01~2005-04-01 |
57840-52D00-000 |
— | ||
|
22
|
22
57870-52D00-000
Bracket,lateral rod
2003-06-01~2005-04-01 |
57870-52D00-000 |
— | ||
|
23
|
23
57881-52D00-000
GUSSET,SIDE FRAME FR END,R
2003-06-01~2005-04-01 |
57881-52D00-000 |
— | ||
|
24
|
24
57891-52D00-000
GUSSET,SIDE FRAME FR END,L
2003-06-01~2005-04-01 |
57891-52D00-000 |
— | ||
|
25
|
25
09119-05018-000 BOLT(8X35)2003-06-01~2005-04-01 |
09119-05018-000 |
from US $0.63 |
||
