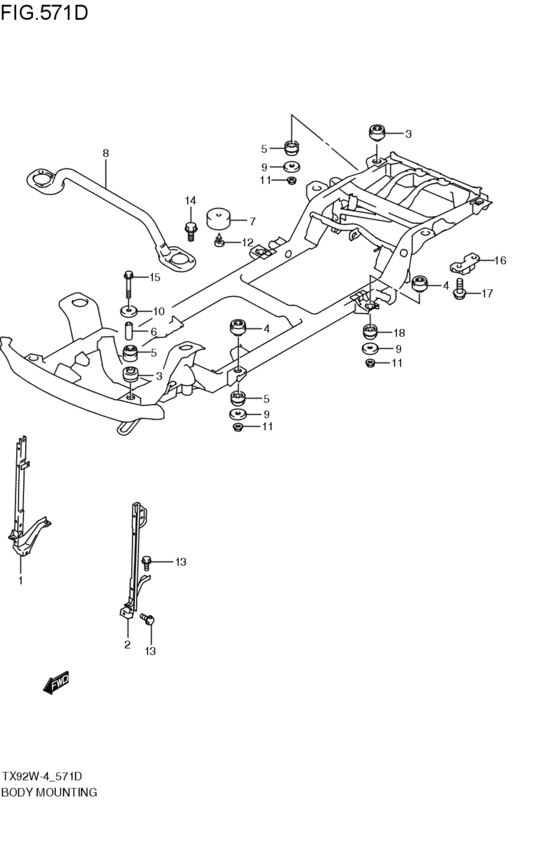

ボディマウンチング (2003-06-01~2005-04-01) Diagram Suzuki ESCUDO
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- H27A
- deice
- NDEICE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71410-52D10-000 STAY,RADIATOR,R2003-06-01~2005-04-01 |
71410-52D10-000 |
from US $44.16 |
||
|
2
|
2
71420-52D10-000 STAY,RADIATOR,L2003-06-01~2005-04-01 |
71420-52D10-000 |
from US $31.95 |
||
|
3
|
3
71511-65D00-000 CUSHION,BODY MTG NO.12003-06-01~2005-04-01 |
71511-65D00-000 |
from US $14.78 |
||
|
4
|
4
71511-52D00-000 CUSHION,BODY MTG NO.12003-06-01~2005-04-01 |
71511-52D00-000 |
from US $11.25 |
||
|
5
|
5
71512-65D00-000 CUSHION,BODY MTG NO.22003-06-01~2005-04-01 |
71512-65D00-000 |
from US $9.32 |
||
|
6
|
6
71515-65D00-000
COLLAR BODY 1ST MOUNTING
2003-06-01~2005-04-01 |
71515-65D00-000 |
— | ||
| replacement | |||||
|
6
|
6
71515-65D01-000 COLLAR,BODY 1ST MOUNTING2003-06-01~2005-04-01 |
71515-65D01-000 |
from US $2.72 |
||
|
7
|
7
71521-52D00-000 PAD,BODY MOUNTING2003-06-01~2005-04-01 |
71521-52D00-000 |
from US $4.14 |
||
|
8
|
8
71530-65D00-000 BAR,STRUT2003-06-01~2005-04-01 |
71530-65D00-000 |
from US $86.67 |
||
|
9
|
9
71632-83010-000
BOTTOM BODY MOUNTING
2003-06-01~2005-04-01 |
71632-83010-000 |
— | ||
| replacement | |||||
|
9
|
9
71632-83011-000 BOTTOM,BODY MOUNTING2003-06-01~2005-04-01 |
71632-83011-000 |
from US $2.24 |
||
|
10
|
10
71630-52D00-000
ボトム,ファーストボディマウンチング
2003-06-01~2005-04-01 |
71630-52D00-000 |
— | ||
| replacement | |||||
|
10
|
10
71630-52D01-000
BOTTOM,1ST BODY MOUNTING
2003-06-01~2005-04-01 |
71630-52D01-000 |
— | ||
|
11
|
11
09159-10060-000 NUT2003-06-01~2005-04-01 |
09159-10060-000 |
from US $1.28 |
||
|
12
|
12
09409-10302-5PK CLIP(BLACK)ブラック; 2003-06-01~2005-04-01 |
09409-10302-5PK |
from US $1.06 |
||
|
13
|
13
01551-08163-000
Bolt
2003-06-01~2005-04-01 |
01551-08163-000 |
— | ||
| replacements | |||||
|
13
|
13
01551-0816C-000 Bolt2003-06-01~2005-04-01 |
01551-0816C-000 |
from US $0.96 |
||
|
13
|
13
01551-0816A-000
ボルト
2003-06-01~2005-04-01 |
01551-0816A-000 |
— | ||
|
14
|
14
01550-10203-000
Bolt
2003-06-01~2005-04-01 |
01550-10203-000 |
— | ||
| replacement | |||||
|
14
|
14
01550-1020A-000 BoltBolt, bal sprocket 2003-06-01~2005-04-01 |
01550-1020A-000 |
from US $0.96 |
||
|
15
|
15
09103-10299-000 BOLT(10X95)2003-06-01~2005-04-01 |
09103-10299-000 |
from US $5.11 |
||
|
16
|
16
71450-52D00-000 HOOK,SHIPPING RR2003-06-01~2005-04-01 |
71450-52D00-000 |
from US $13.19 |
||
|
17
|
17
09103-12043-000 BOLT(12X20)2003-06-01~2005-04-01 |
09103-12043-000 |
from US $1.28 |
||
|
18
|
18
71512-65D10-000 CUSHION,BODY 3RD MTG NO.22003-06-01~2005-04-01 |
71512-65D10-000 |
from US $6.32 |
||
