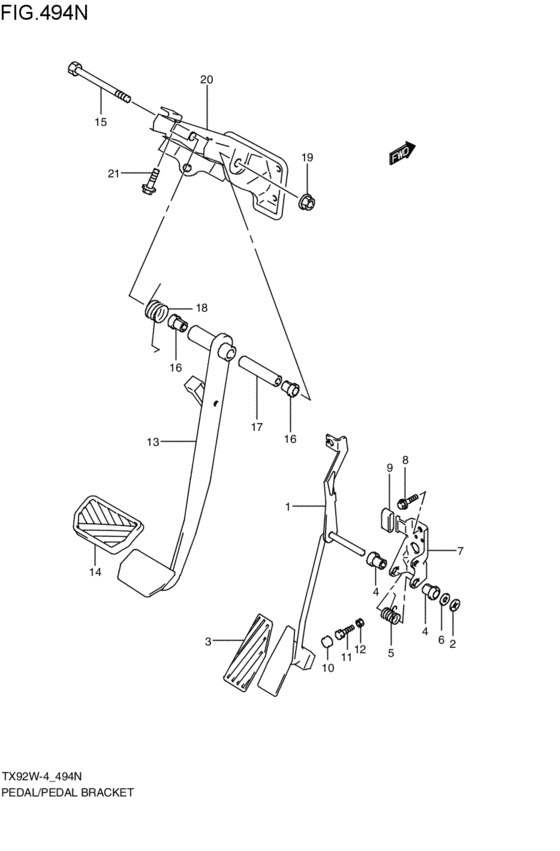

pedal / pedal bracket (2003-06-01~2005-04-01) Diagram Suzuki ESCUDO
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- H27A
- deice
- NDEICE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
49410-77E10-000 PEDAL,ACCELERATOR2003-06-01~2005-04-01 |
49410-77E10-000 |
US $36.25 |
||
|
2
|
2
09148-09001-000 NUT2003-06-01~2005-04-01 |
09148-09001-000 |
from US $2.02 |
||
|
3
|
3
49451-60B00-000 PAD,ACCELERATOR PEDAL2003-06-01~2005-04-01 |
49451-60B00-000 |
from US $1.26 |
||
|
4
|
4
09307-09001-000 BUSH2003-06-01~2005-04-01 |
09307-09001-000 |
from US $1.89 |
||
|
5
|
5
09448-21005-000 SPRING2003-06-01~2005-04-01 |
09448-21005-000 |
from US $1.64 |
||
|
6
|
6
09160-09016-000 WASHER(9.5X20X1)2003-06-01~2005-04-01 |
09160-09016-000 |
from US $0.91 |
||
|
7
|
7
49511-65D00-000 BRACKET,ACCELERATOR2003-06-01~2005-04-01 |
49511-65D00-000 |
from US $8.73 |
||
|
8
|
8
02162-06123-000
Bolt (6x12)
2003-06-01~2005-04-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
8
|
8
02162-0612B-000 SCREWBolt 2003-06-01~2005-04-01 |
02162-0612B-000 |
from US $0.80 |
||
|
8
|
8
02162-0612A-000 SCREWBolt, bracket 2003-06-01~2005-04-01 |
02162-0612A-000 |
from US $0.79 |
||
|
9
|
9
49416-60A00-000 CUSHION,ACCEL PEDAL RETURN2003-06-01~2005-04-01 |
49416-60A00-000 |
from US $0.63 |
||
|
10
|
10
09251-09002-000
CAP(OD:13.6)
2003-06-01~2005-04-01 |
09251-09002-000 |
— | ||
| replacement | |||||
|
10
|
10
09251-09008-000 Cap(Od:13.6)2003-06-01~2005-04-01 |
09251-09008-000 |
from US $1.69 |
||
|
11
|
11
09100-06159-000 BOLT(6X34)2003-06-01~2005-04-01 |
09100-06159-000 |
US $15.50 |
||
|
12
|
12
08310-00063-000
Nut
2003-06-01~2005-04-01 |
08310-00063-000 |
— | ||
| replacements | |||||
|
12
|
12
08310-0006B-000 NUTNut gear shift link rod 2003-06-01~2005-04-01 |
08310-0006B-000 |
from US $0.76 |
||
|
12
|
12
08310-0006A-000 NUT2003-06-01~2005-04-01 |
08310-0006A-000 |
from US $0.76 |
||
|
13
|
13
49610-65D10-000
PEDAL,BRAKE
2003-06-01~2005-04-01 |
49610-65D10-000 |
— | ||
|
14
|
14
49751-58J10-000 PAD,PEDAL2003-06-01~2005-04-01 |
49751-58J10-000 |
from US $5.02 |
||
|
15
|
15
09100-10226-000 BOLT(10X85)2003-06-01~2005-04-01 |
09100-10226-000 |
US $14.40 |
||
|
16
|
16
09307-13005-000 BUSHBushing 2003-06-01~2005-04-01 |
09307-13005-000 |
from US $2.88 |
||
|
17
|
17
09180-10121-000 SPACER(10.1X13X73.8)2003-06-01~2005-04-01 |
09180-10121-000 |
US $30.20 |
||
|
18
|
18
49691-65D00-000 SPRING,BRAKE PEDAL2003-06-01~2005-04-01 |
49691-65D00-000 |
from US $3.78 |
||
|
19
|
19
08316-20103-000
Nut
2003-06-01~2005-04-01 |
08316-20103-000 |
— | ||
| replacement | |||||
|
19
|
19
08316-2010B-000 NUT2003-06-01~2005-04-01 |
08316-2010B-000 |
from US $0.76 |
||
|
20
|
20
49710-52DA0-000
BRACKET,PEDAL
2003-06-01~2005-04-01 |
49710-52DA0-000 |
— | ||
|
21
|
21
01550-08203-000
Bolt
2003-06-01~2005-04-01 |
01550-08203-000 |
— | ||
| replacements | |||||
|
21
|
21
01550-0820B-000 Bolt2003-06-01~2005-04-01 |
01550-0820B-000 |
from US $0.91 |
||
|
21
|
21
01550-0820A-000 BoltBolt, funnel bracket 2003-06-01~2005-04-01 |
01550-0820A-000 |
from US $1.12 |
||
