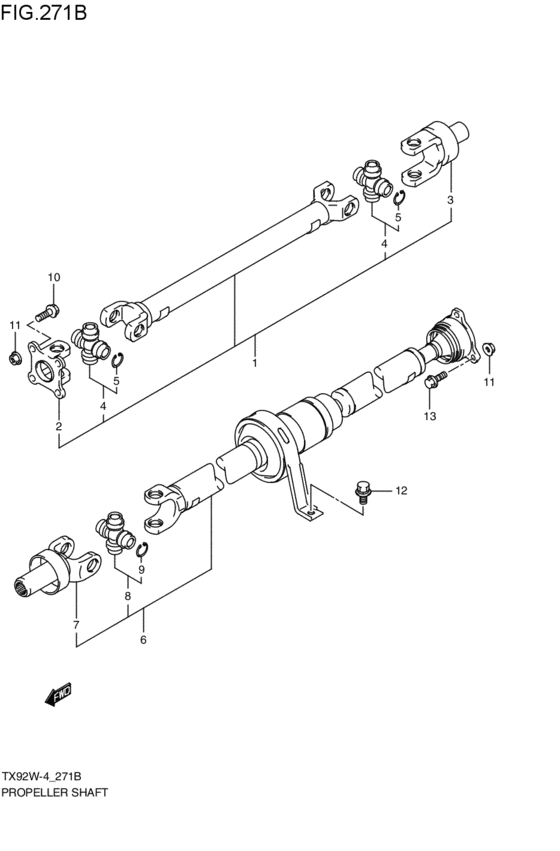

propeller shaft (2003-06-01~2005-04-01) Diagram Suzuki ESCUDO
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- H27A
- deice
- NDEICE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27101-78EA1-000 SHAFT ASSY,PROPELLER FRONT2003-06-01~2005-04-01 |
27101-78EA1-000 |
from US $238.64 |
||
|
2
|
2
27131-56B00-000 YOKE,CROSS JOINT FLANGE2003-06-01~2005-04-01 |
27131-56B00-000 |
from US $47.18 |
||
|
3
|
3
27140-60A00-000 YOKE,SLIDING2003-06-01~2005-04-01 |
27140-60A00-000 |
from US $77.22 |
||
|
4
|
4
27200-83812-000
JOINT SET,UNIVERSAL
2003-06-01~2005-04-01 |
27200-83812-000 |
— | ||
| replacement | |||||
|
4
|
4
27200-83813-000 Joint Set,universal2003-06-01~2005-04-01 |
27200-83813-000 |
from US $56.36 |
||
|
5
|
5
51118-36213-000 RING,SNAP2003-06-01~2005-04-01 |
51118-36213-000 |
from US $1.31 |
||
|
6
|
6
27102-54J00-000 SHAFT ASSY,PROPELLER REAR2003-06-01~2005-04-01 |
27102-54J00-000 |
from US $1,533.78 |
||
|
7
|
7
27140-53J00-000 YOKE,SLIDING2003-06-01~2005-04-01 |
27140-53J00-000 |
US $154.19 |
||
|
8
|
8
27200-53830-000 JOINT ASSY,UNIVERSAL2003-06-01~2005-04-01 |
27200-53830-000 |
from US $79.74 |
||
|
9
|
9
08331-41266-000
Circlip
2003-06-01~2005-04-01 |
08331-41266-000 |
— | ||
| replacement | |||||
|
9
|
9
08331-41269-000 CIRCLIP2003-06-01~2005-04-01 |
08331-41269-000 |
from US $1.91 |
||
|
10
|
10
01500-10303-000
Bolt
2003-06-01~2005-04-01 |
01500-10303-000 |
— | ||
| replacement | |||||
|
10
|
10
01500-1030A-000 Bolt2003-06-01~2005-04-01 |
01500-1030A-000 |
from US $0.96 |
||
|
11
|
11
09159-10091-000 NUT2003-06-01~2005-04-01 |
09159-10091-000 |
from US $2.09 |
||
|
12
|
12
01580-10203-000
ボルト
2003-06-01~2005-04-01 |
01580-10203-000 |
— | ||
| replacement | |||||
|
12
|
12
01580-1020A-000 Bolt2003-06-01~2005-04-01 |
01580-1020A-000 |
US $19.50 |
||
|
13
|
13
09103-10395-000 BOLT(10X30)2003-06-01~2005-04-01 |
09103-10395-000 |
from US $5.17 |
||
