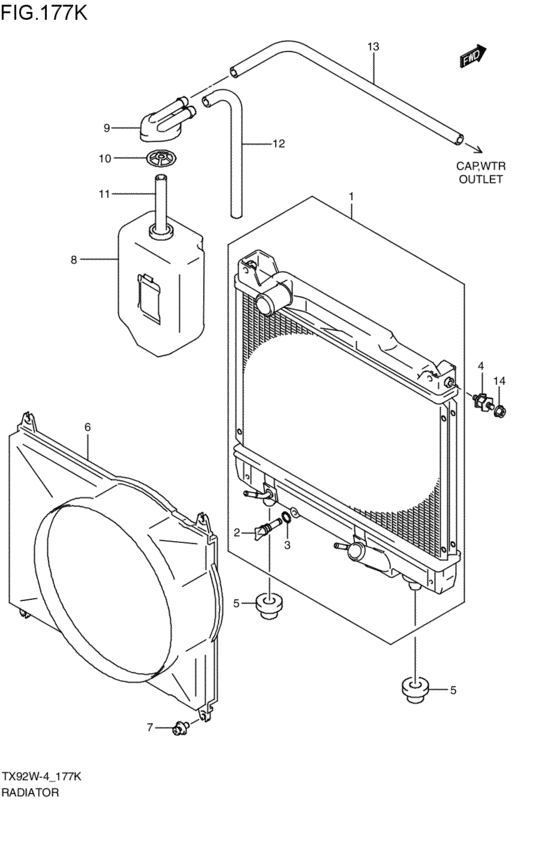

radiator (2003-06-01~2005-04-01) Diagram Suzuki ESCUDO
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- H27A
- deice
- NDEICE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17700-52D30-000
RADIATOR ASSY
2003-06-01~2005-04-01 |
17700-52D30-000 |
— | ||
| replacement | |||||
|
1
|
1
17700-52D31-000 RADIATOR ASSY2003-06-01~2005-04-01 |
17700-52D31-000 |
from US $770.88 |
||
|
2
|
2
17751-61A00-000 PLUG,DRAIN2003-06-01~2005-04-01 |
17751-61A00-000 |
from US $4.80 |
||
|
3
|
3
17759-72010-000 O-RING2003-06-01~2005-04-01 |
17759-72010-000 |
from US $1.52 |
||
|
4
|
4
14770-48700-000
BUSH
2003-06-01~2005-04-01 |
14770-48700-000 |
— | ||
| replacement | |||||
|
4
|
4
14770-48701-000 Bush2003-06-01~2005-04-01 |
14770-48701-000 |
from US $12.04 |
||
|
5
|
5
17812-82000-000 BUSHING,RADIATOR SUPPORT2003-06-01~2005-04-01 |
17812-82000-000 |
from US $2.27 |
||
|
6
|
6
17761-52D10-000 SHROUD,FAN2003-06-01~2005-04-01 |
17761-52D10-000 |
US $44.98 |
||
|
7
|
7
17795-65D00-000 CLIP,FAN SHROUD2003-06-01~2005-04-01 |
17795-65D00-000 |
from US $1.52 |
||
|
8
|
8
17931-65D00-000 TANK,WATER RESERVE2003-06-01~2005-04-01 |
17931-65D00-000 |
from US $40.48 |
||
|
9
|
9
17932-60G10-000 CAP,WATER RESERVE TANK2003-06-01~2005-04-01 |
17932-60G10-000 |
from US $5.65 |
||
|
10
|
10
17933-60B00-000 RUBBER,WTR RSV TANK CAPRubber, tank cap 2003-06-01~2005-04-01 |
17933-60B00-000 |
from US $1.98 |
||
|
11
|
11
09352-70111-600 HOSE(7X11X600)L:600>190; 2003-06-01~2005-04-01 |
09352-70111-600 |
from US $6.84 |
||
|
12
|
12
17939-65D00-000 HOSE,RSVR TANK VENT2003-06-01~2005-04-01 |
17939-65D00-000 |
from US $3.62 |
||
|
13
|
13
09352-70121-600 HOSE(7X12.1X600)Hose (inmani to iac) L:600>500; 2003-06-01~2005-04-01 |
09352-70121-600 |
from US $5.93 |
||
|
14
|
14
08316-10083-000
Nut
2003-06-01~2005-04-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
14
|
14
08316-1008B-000 NUT2003-06-01~2005-04-01 |
08316-1008B-000 |
from US $0.76 |
||
