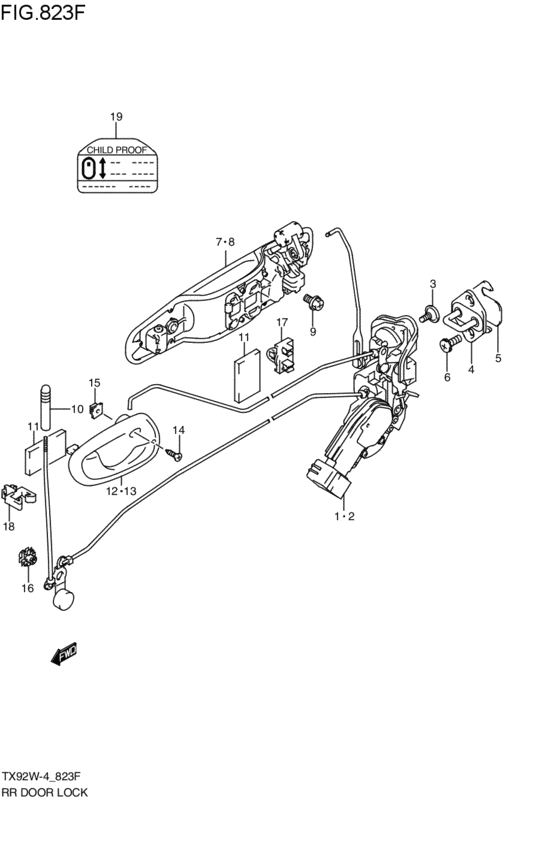

rear door lock (2003-06-01~2005-04-01) Diagram Suzuki ESCUDO
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- H27A
- deice
- NDEICE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82301-52D10-000
LATCH ASSY DOOR RH
2003-06-01~2005-04-01 |
82301-52D10-000 |
— | ||
| replacement | |||||
|
1
|
1
82301-52D11-000
LATCH ASSY,RR DR,R
2003-06-01~2005-04-01 |
82301-52D11-000 |
— | ||
|
2
|
2
82302-52D10-000
LATCH DOOR LH
2003-06-01~2005-04-01 |
82302-52D10-000 |
— | ||
| replacement | |||||
|
2
|
2
82302-52D11-000 LATCH ASSY,RR DR,L2003-06-01~2005-04-01 |
82302-52D11-000 |
from US $222.50 |
||
|
3
|
3
82291-65D10-000
スクリュ,フロントドアラッチ
2003-06-01~2005-04-01 |
82291-65D10-000 |
— | ||
| replacement | |||||
|
3
|
3
82291-65D11-000 SCREW2003-06-01~2005-04-01 |
82291-65D11-000 |
US $2.69 |
||
|
4
|
4
82610-60A01-000 STRIKER,FR DOOR LATCH2003-06-01~2005-04-01 |
82610-60A01-000 |
from US $10.71 |
||
|
5
|
5
78199-78000-000 SPACER,DOOR LOCK STRIKER2003-06-01~2005-04-01 |
78199-78000-000 |
from US $0.68 |
||
|
6
|
6
09137-08011-000 SCREW(8X18)2003-06-01~2005-04-01 |
09137-08011-000 |
from US $1.40 |
||
|
7
|
7
82810-52D10-CFS
HANDLE,DOOR OUTER,R
ベージュ/クローム; 2003-06-01~2005-04-01 |
82810-52D10-CFS |
— | ||
|
7
|
7
82810-52D10-EG6 HANDLE,SIDE DOOR OUT,Rホワイト/クローム; 2003-06-01~2005-04-01 |
82810-52D10-EG6 |
from US $54.61 |
||
|
7
|
7
82810-52D10-EG7 HANDLE,SIDE DOOR OUT,Rベージュ/クローム; 2003-06-01~2005-04-01 |
82810-52D10-EG7 |
from US $59.94 |
||
|
7
|
7
82810-52D10-L8D HANDLE,SIDE DOOR OUT,Rシルバー/クローム; 2003-06-01~2005-04-01 |
82810-52D10-L8D |
from US $54.23 |
||
|
7
|
7
82810-52D10-N0E
HANDLE,SIDE DOOR OUT,R
ブルー/クローム; 2003-06-01~2005-04-01 |
82810-52D10-N0E |
— | ||
|
8
|
8
82820-52D10-CFS
HANDLE,DOOR OUTER,L
ベージュ/クローム; 2003-06-01~2005-04-01 |
82820-52D10-CFS |
— | ||
|
8
|
8
82820-52D10-EG6 HANDLE,SIDE DOOR OUT,Lホワイト/クローム; 2003-06-01~2005-04-01 |
82820-52D10-EG6 |
from US $52.63 |
||
|
8
|
8
82820-52D10-EG7
HANDLE,SIDE DOOR OUT,L
ベージュ/クローム; 2003-06-01~2005-04-01 |
82820-52D10-EG7 |
— | ||
|
8
|
8
82820-52D10-L8D HANDLE,SIDE DOOR OUT,Lシルバー/クローム; 2003-06-01~2005-04-01 |
82820-52D10-L8D |
from US $89.08 |
||
|
8
|
8
82820-52D10-N0E HANDLE,SIDE DOOR OUT,Lブルー/クローム; 2003-06-01~2005-04-01 |
82820-52D10-N0E |
US $83.90 |
||
|
9
|
9
02162-06123-000
Bolt (6x12)
2003-06-01~2005-04-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
9
|
9
02162-0612B-000 SCREWBolt 2003-06-01~2005-04-01 |
02162-0612B-000 |
from US $0.80 |
||
|
9
|
9
02162-0612A-000 SCREWBolt, bracket 2003-06-01~2005-04-01 |
02162-0612A-000 |
from US $0.79 |
||
|
10
|
10
82982-65D00-R8H KNOB, DOOR INSIDE LOCK (BEIGE)ベ-ジユ; 2003-06-01~2005-04-01 |
82982-65D00-R8H |
from US $2.72 |
||
|
10
|
10
82982-65D00-R8J Knob, Door Inside Lock (Gray)グレ-; 2003-06-01~2005-04-01 |
82982-65D00-R8J |
from US $2.72 |
||
|
11
|
11
77591-75000-000 PAD2003-06-01~2005-04-01 |
77591-75000-000 |
from US $0.56 |
||
|
12
|
12
83110-76G10-KM6
HANDLE,SIDE DR INSIDE,R(GRAY)
グレー/クローム; 2003-06-01~2005-04-01 |
83110-76G10-KM6 |
— | ||
| replacement | |||||
|
12
|
12
83110-76G11-KM6 HANDLE,SIDE DR INSIDE,Rグレー/クローム; 2003-06-01~2005-04-01 |
83110-76G11-KM6 |
US $92 |
||
|
12
|
12
83110-76G10-KM7
HANDLE,SIDE DR INSIDE,R(CHROME
ベージュ/クローム; 2003-06-01~2005-04-01 |
83110-76G10-KM7 |
— | ||
| replacement | |||||
|
12
|
12
83110-76G11-KM7 HANDLE,SIDE DR INSIDE,Rベージュ/クローム; 2003-06-01~2005-04-01 |
83110-76G11-KM7 |
from US $35.33 |
||
|
13
|
13
83130-76G10-KM6
HANDLE,SIDE DR INSIDE,L(GRAY)
グレー/クローム; 2003-06-01~2005-04-01 |
83130-76G10-KM6 |
— | ||
| replacement | |||||
|
13
|
13
83130-76G11-KM6 HANDLE,SIDE DR INSIDE,Lグレー/クローム; 2003-06-01~2005-04-01 |
83130-76G11-KM6 |
from US $26.62 |
||
|
13
|
13
83130-76G10-KM7
HANDLE,SIDE DR INSIDE,L(CHROME
ベージュ/クローム; 2003-06-01~2005-04-01 |
83130-76G10-KM7 |
— | ||
| replacement | |||||
|
13
|
13
83130-76G11-KM7 HANDLE,SIDE DR INSIDE,Lベージュ/クローム; 2003-06-01~2005-04-01 |
83130-76G11-KM7 |
US $35.33 |
||
|
14
|
14
03121-05163-000
Screw
2003-06-01~2005-04-01 |
03121-05163-000 |
— | ||
| replacement | |||||
|
14
|
14
03121-0516A-000 SCREW2003-06-01~2005-04-01 |
03121-0516A-000 |
from US $0.96 |
||
|
15
|
15
83119-60B00-000 NUT,FR DOOR INSIDE HANDLE2003-06-01~2005-04-01 |
83119-60B00-000 |
from US $1.06 |
||
|
16
|
16
83261-56B00-000 PIN,FR DOOR INSIDE LOCK ROD2003-06-01~2005-04-01 |
83261-56B00-000 |
from US $1.55 |
||
|
17
|
17
83271-50E00-000 CLIP,DR HANDLE ROD2003-06-01~2005-04-01 |
83271-50E00-000 |
from US $1.60 |
||
|
18
|
18
09403-07324-000 CLAMP2003-06-01~2005-04-01 |
09403-07324-000 |
from US $1.35 |
||
|
19
|
19
86951-54G00-000 PLATE,CHILD LOCK CAUTION2003-11-01~2005-04-01 |
86951-54G00-000 |
from US $0.50 |
||
|
19
|
19
86951-78004-000 CAUTION PLATE,CHILD PROOF2003-06-01~2003-10-01 |
86951-78004-000 |
US $1.60 |
||
