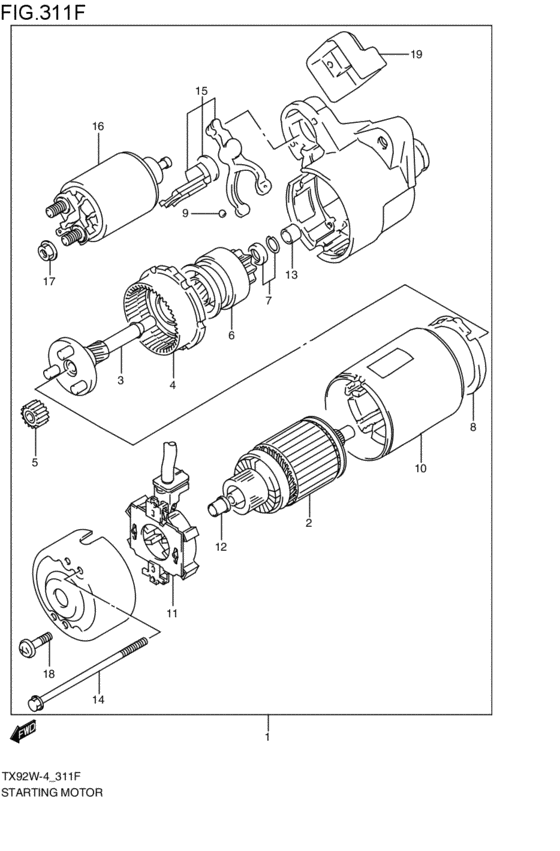

starting motor (2003-06-01~2005-04-01) Diagram Suzuki ESCUDO
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- H27A
- deice
- NDEICE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-67D20-000 MOTOR ASSY,STARTING2003-06-01~2005-04-01 |
31100-67D20-000 |
from US $462.58 |
||
| replacement | |||||
|
1
|
1
31100-67D20-REM
Starting motor
2003-06-01~2005-04-01 |
31100-67D20-REM |
— | ||
|
2
|
2
31311-67D20-000
ARMATURE ASSY
2003-06-01~2005-04-01 |
31311-67D20-000 |
— | ||
|
3
|
3
31341-67D10-000 SHAFT ASSY,GEAR2003-06-01~2005-04-01 |
31341-67D10-000 |
from US $176.13 |
||
|
4
|
4
31343-60A00-000
GEAR ASSY,INTERNAL
2003-06-01~2005-04-01 |
31343-60A00-000 |
— | ||
|
5
|
5
31344-86030-000 GEAR,PLNTY2003-06-01~2005-04-01 |
31344-86030-000 |
from US $18.09 |
||
|
6
|
6
31320-86030-000 CLUTCH,OVER RUNNING2003-06-01~2005-04-01 |
31320-86030-000 |
from US $93.31 |
||
|
7
|
7
31313-86030-000 STOPPER SET2003-06-01~2005-04-01 |
31313-86030-000 |
US $11.50 |
||
| replacement | |||||
|
7
|
7
31314-86030-000 Stopper Set2003-06-01~2005-04-01 |
31314-86030-000 |
from US $11.50 |
||
|
8
|
8
31345-60A00-000 PACKING2003-06-01~2005-04-01 |
31345-60A00-000 |
US $5.37 |
||
|
9
|
9
31193-86030-000 BALL2003-06-01~2005-04-01 |
31193-86030-000 |
from US $0.83 |
||
|
10
|
10
31110-67D20-000
YOKE ASSY
2003-06-01~2005-04-01 |
31110-67D20-000 |
— | ||
|
11
|
11
31173-60A22-000 HOLDER ASSY,BRUSH2003-06-01~2005-04-01 |
31173-60A22-000 |
from US $63.84 |
||
|
12
|
12
31172-64B60-000 BEARING,REAR2003-06-01~2005-04-01 |
31172-64B60-000 |
from US $8.21 |
||
|
13
|
13
31152-79030-000 BEARING,FRONT2003-06-01~2005-04-01 |
31152-79030-000 |
from US $5.11 |
||
|
14
|
14
31261-67D20-000 Bolt2003-06-01~2005-04-01 |
31261-67D20-000 |
from US $4.14 |
||
|
15
|
15
31191-86030-000
LEVER ASSY
2003-06-01~2005-04-01 |
31191-86030-000 |
— | ||
|
16
|
16
31220-86032-000 SWITCH ASSY2003-06-01~2005-04-01 |
31220-86032-000 |
from US $107.37 |
||
|
17
|
17
08316-10083-000
Nut
2003-06-01~2005-04-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
17
|
17
08316-1008B-000 NUT2003-06-01~2005-04-01 |
08316-1008B-000 |
from US $0.76 |
||
|
18
|
18
31136-79030-000 SCREW ASSY2003-06-01~2005-04-01 |
31136-79030-000 |
US $3.38 |
||
| replacement | |||||
|
18
|
18
31175-79030-000 Screw Set2003-06-01~2005-04-01 |
31175-79030-000 |
US $8.16 |
||
|
19
|
19
31385-67D10-000
HEAT PROTECTOR
2003-06-01~2005-04-01 |
31385-67D10-000 |
— | ||
