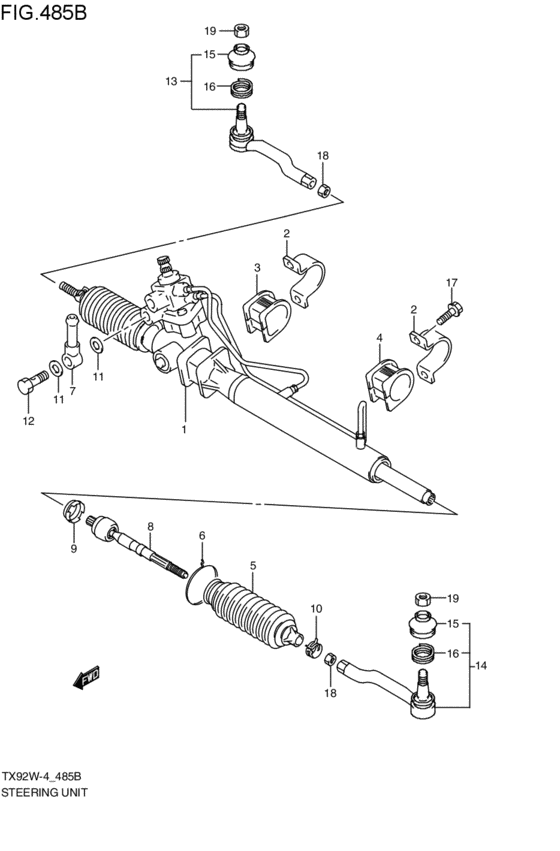

steering unit (2003-06-01~2005-04-01) Diagram Suzuki ESCUDO
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- H27A
- deice
- NDEICE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48580-54J00-000
GEAR ASSY,POWER STEERING
2003-06-01~2005-04-01 |
48580-54J00-000 |
— | ||
|
2
|
2
48521-54J00-000 BRACKET,STEERING GEAR2003-06-01~2005-04-01 |
48521-54J00-000 |
US $15.24 |
||
|
3
|
3
48525-54J00-000 MOUNT,STRG PINION SIDE2003-06-01~2005-04-01 |
48525-54J00-000 |
from US $17 |
||
|
4
|
4
48526-54J00-000 MOUNT,STRG RACK SIDE2003-06-01~2005-04-01 |
48526-54J00-000 |
from US $18.22 |
||
|
5
|
5
48571-65D00-000 BOOT,STEERING2003-06-01~2005-04-01 |
48571-65D00-000 |
from US $22.80 |
||
|
6
|
6
48575-54J00-000 WIRE,RACK BOOT2003-06-01~2005-04-01 |
48575-54J00-000 |
US $4.86 |
||
|
7
|
7
48516-65D00-000 PIPE,RETURN2003-06-01~2005-04-01 |
48516-65D00-000 |
from US $7.94 |
||
|
8
|
8
48830-65D00-000 TIE-ROD,STEERING2003-06-01~2005-04-01 |
48830-65D00-000 |
from US $86.67 |
||
|
9
|
9
48841-54J00-000 WASHER,STEERING TIE ROD LOCK2003-06-01~2005-04-01 |
48841-54J00-000 |
from US $8.61 |
||
|
10
|
10
09401-16403-000 CLIPClip, 2nd air hose no.2 2003-06-01~2005-04-01 |
09401-16403-000 |
from US $1.28 |
||
|
11
|
11
09168-14014-000 GASKET(14X18X1.5)2003-06-01~2005-04-01 |
09168-14014-000 |
from US $1.10 |
||
|
12
|
12
09360-14011-000 UNION2003-06-01~2005-04-01 |
09360-14011-000 |
from US $4.66 |
||
|
13
|
13
48810-65D00-000 END TIE ROD RH2003-06-01~2005-04-01 |
48810-65D00-000 |
US $68.09 |
||
| replacements | |||||
|
13
|
13
48810-65D01-000 END,STEERING TIE-ROD,R2003-06-01~2005-04-01 |
48810-65D01-000 |
from US $68.09 |
||
|
13
|
13
04111-3020A-000 PIN2003-06-01~2005-04-01 |
04111-3020A-000 |
from US $0.59 |
||
|
13
|
13
08314-4012A-000 NUT2003-06-01~2005-04-01 |
08314-4012A-000 |
from US $0.99 |
||
|
14
|
14
48820-65D00-000 END TIE ROD STEERING2003-06-01~2005-04-01 |
48820-65D00-000 |
US $78.93 |
||
| replacements | |||||
|
14
|
14
48820-65D01-000 END,STEERING TIE-ROD,L2003-06-01~2005-04-01 |
48820-65D01-000 |
from US $78.93 |
||
|
14
|
14
04111-3020A-000 PIN2003-06-01~2005-04-01 |
04111-3020A-000 |
from US $0.59 |
||
|
14
|
14
08314-4012A-000 NUT2003-06-01~2005-04-01 |
08314-4012A-000 |
from US $0.99 |
||
|
15
|
15
48806-80000-000
BOOT SET
2003-06-01~2005-04-01 |
48806-80000-000 |
— | ||
| replacements | |||||
|
15
|
15
48806-80001-000
Boot Set
2003-06-01~2005-04-01 |
48806-80001-000 |
— | ||
|
15
|
15
48800-80810-000 Boot Set2003-06-01~2005-04-01 |
48800-80810-000 |
US $32 |
||
|
16
|
16
09401-27402-000 CLIP2003-06-01~2005-04-01 |
09401-27402-000 |
from US $1.04 |
||
|
17
|
17
01551-10253-000
Bolt
2003-06-01~2005-04-01 |
01551-10253-000 |
— | ||
| replacement | |||||
|
17
|
17
01551-1025A-000 Bolt2003-06-01~2005-04-01 |
01551-1025A-000 |
US $1.12 |
||
|
18
|
18
08310-00143-000
Nut
2003-06-01~2005-04-01 |
08310-00143-000 |
— | ||
| replacement | |||||
|
18
|
18
08310-0014A-000 NUT2003-06-01~2005-04-01 |
08310-0014A-000 |
from US $0.91 |
||
|
19
|
19
09159-12052-000 NUT2003-06-01~2005-04-01 |
09159-12052-000 |
US $1.60 |
||
