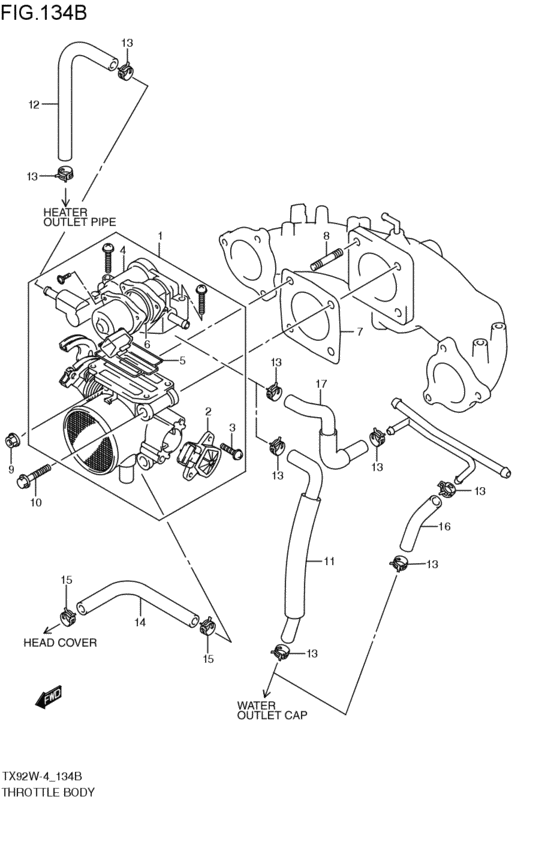

throttle body (2003-06-01~2005-04-01) Diagram Suzuki ESCUDO
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- H27A
- deice
- NDEICE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13400-52D00-000 BODY ASSY,THROTTLE2003-06-01~2005-04-01 |
13400-52D00-000 |
from US $1,143.92 |
||
|
2
|
2
13420-65D00-000
SENSORTHRTL POSITION
2003-06-01~2005-04-01 |
13420-65D00-000 |
— | ||
| replacement | |||||
|
2
|
2
13420-65D01-000 SENSOR,THROTTLE POSITION2003-06-01~2005-04-01 |
13420-65D01-000 |
from US $222.39 |
||
|
3
|
3
13428-65D00-000 SCREW,TP-SENSOR2003-06-01~2005-04-01 |
13428-65D00-000 |
from US $1.33 |
||
|
4
|
4
18137-52D00-000 VALVE,IAC2003-06-01~2005-04-01 |
18137-52D00-000 |
from US $370.37 |
||
|
5
|
5
13411-52D00-000 O-RING,IAC VALVE NO.12003-06-01~2005-04-01 |
13411-52D00-000 |
from US $7.40 |
||
|
6
|
6
13412-52D00-000 O-RING,IAC VALVE NO.22003-06-01~2005-04-01 |
13412-52D00-000 |
from US $3.60 |
||
|
7
|
7
13421-52D00-000 GASKET,THROTTLE BODY2003-06-01~2005-04-01 |
13421-52D00-000 |
from US $4.48 |
||
|
8
|
8
01421-08503-000
Bolt, stud
2003-06-01~2005-04-01 |
01421-08503-000 |
— | ||
| replacement | |||||
|
8
|
8
01421-0850A-000 BOLT,STUD2003-06-01~2005-04-01 |
01421-0850A-000 |
from US $4.18 |
||
|
9
|
9
08316-10083-000
Nut
2003-06-01~2005-04-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
9
|
9
08316-1008B-000 NUT2003-06-01~2005-04-01 |
08316-1008B-000 |
from US $0.76 |
||
|
10
|
10
01550-08553-000
Bolt
2003-06-01~2005-04-01 |
01550-08553-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0855B-000 Bolt2003-06-01~2005-04-01 |
01550-0855B-000 |
from US $1.58 |
||
|
10
|
10
01550-0855A-000 BoltBolt, gear holder 2003-06-01~2005-04-01 |
01550-0855A-000 |
from US $1.22 |
||
|
11
|
11
11190-77820-000 HOSE&PIPE SET,PCV H272003-06-01~2004-09-01 |
11190-77820-000 |
from US $38.72 |
||
|
12
|
12
09356-75141-600 HOSE(7.5X14.5X600)L:600>300; 2003-06-01~2005-04-01 |
09356-75141-600 |
from US $7.67 |
||
|
13
|
13
09401-12410-000 CLIPClip, filter outlet 2003-06-01~2004-09-01 |
09401-12410-000 |
from US $1.49 |
||
|
14
|
14
09355-13207-600 HOSE(13X20X600)Hose, breather L:600>170; 2003-06-01~2005-04-01 |
09355-13207-600 |
from US $12.46 |
||
|
15
|
15
09401-18404-000 CLIP2003-06-01~2005-04-01 |
09401-18404-000 |
from US $1.37 |
||
|
16
|
16
13491-77E10-000 HOSE,WTR THB INLET NO.12004-09-01~2005-04-01 |
13491-77E10-000 |
from US $5.51 |
||
|
17
|
17
13492-77E10-000 HOSE,WTR THB INLET NO.22004-09-01~2005-04-01 |
13492-77E10-000 |
US $9.16 |
||
