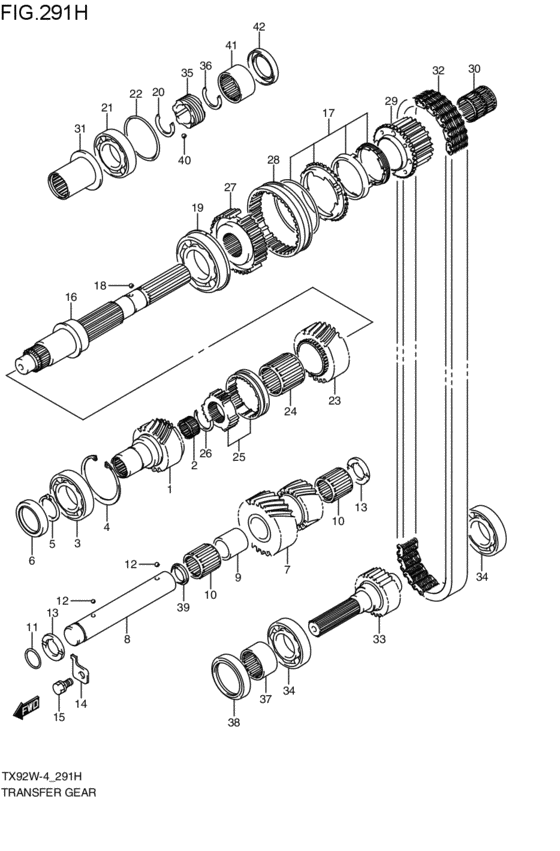

transfer gear (2003-06-01~2005-04-01) Diagram Suzuki ESCUDO
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- H27A
- deice
- NDEICE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29110-53J00-000
GEAR,T/F INPUT
2003-06-01~2005-04-01 |
29110-53J00-000 |
— | ||
|
2
|
2
09263-24022-000 BEARING(24X30X17)2003-06-01~2005-04-01 |
09263-24022-000 |
from US $12.56 |
||
|
3
|
3
29112-68D01-000 BEARING,T/F INPUT2003-06-01~2005-04-01 |
29112-68D01-000 |
from US $26.10 |
||
|
4
|
4
09381-72001-000 RING,SNAP2003-06-01~2005-04-01 |
09381-72001-000 |
from US $14.02 |
||
|
5
|
5
08331-31406-000
Circlip
2003-06-01~2005-04-01 |
08331-31406-000 |
— | ||
| replacement | |||||
|
5
|
5
08331-31409-000 CIRCLIP2003-06-01~2005-04-01 |
08331-31409-000 |
from US $1.35 |
||
|
6
|
6
29113-68D00-000 SEAL,T/F INPUT GEAR2003-06-01~2005-04-01 |
29113-68D00-000 |
from US $11.39 |
||
|
7
|
7
29121-53J00-000
GEAR,T/F COUNTER
2003-06-01~2005-04-01 |
29121-53J00-000 |
— | ||
|
8
|
8
29131-60A02-000 SHAFT,T/F COUNTER2003-06-01~2005-04-01 |
29131-60A02-000 |
from US $23.69 |
||
|
9
|
9
09180-26004-000 SPACER(26X31X33.7)2003-06-01~2005-04-01 |
09180-26004-000 |
from US $3.56 |
||
|
10
|
10
09263-25051-000 BEARING(25.4X33.3X31.7)2003-06-01~2005-04-01 |
09263-25051-000 |
from US $25.60 |
||
|
11
|
11
09280-21008-000 O RING(D:2.5,ID:21)O ring (d:2.5,id:21) 2003-06-01~2005-04-01 |
09280-21008-000 |
from US $1.51 |
||
|
12
|
12
06111-06003-000 BALL2003-06-01~2005-04-01 |
06111-06003-000 |
from US $0.76 |
||
|
13
|
13
09166-25012-000 WASHER2003-06-01~2005-04-01 |
09166-25012-000 |
from US $9.36 |
||
|
14
|
14
29136-60A01-000 PLATE,T/F COUNTER SHAFT2003-06-01~2005-04-01 |
29136-60A01-000 |
from US $0.72 |
||
|
15
|
15
01570-08163-000
Bolt
2003-06-01~2005-04-01 |
01570-08163-000 |
— | ||
| replacement | |||||
|
15
|
15
01570-0816A-000 Bolt2003-06-01~2005-04-01 |
01570-0816A-000 |
from US $1.12 |
||
|
16
|
16
29141-53J00-000
SHAFT,T/F OUTPUT RR
2003-06-01~2005-04-01 |
29141-53J00-000 |
— | ||
|
17
|
17
24430-82D00-000 RING ASSY,T/F DRIVE SYNC2003-06-01~2005-04-01 |
24430-82D00-000 |
from US $96.44 |
||
|
18
|
18
06111-06003-000 BALL2003-06-01~2005-04-01 |
06111-06003-000 |
from US $0.76 |
||
|
19
|
19
08173-62100-000 BEARING2003-06-01~2005-04-01 |
08173-62100-000 |
from US $53.26 |
||
|
20
|
20
09380-30007-000 RING,SNAP2003-06-01~2005-04-01 |
09380-30007-000 |
from US $1.67 |
||
|
21
|
21
09262-30077-000 BEARING(30X72X19)Bearing, sub t/m output, r 2003-06-01~2005-04-01 |
09262-30077-000 |
from US $39.20 |
||
|
22
|
22
09181-62003-000 SHIM(62X71X0.1)2003-06-01~2005-04-01 |
09181-62003-000 |
from US $0.92 |
||
|
22
|
22
09181-62004-000 SHIM(62X71X0.3)2003-06-01~2005-04-01 |
09181-62004-000 |
from US $1.01 |
||
|
22
|
22
09181-62008-000 SHIM(62X71X0.2)2003-06-01~2005-04-01 |
09181-62008-000 |
from US $1.62 |
||
|
23
|
23
29211-53J00-000
GEAR,T/F OUTPUT LOW
2003-06-01~2005-04-01 |
29211-53J00-000 |
— | ||
|
24
|
24
09263-38006-000 BEARING(38.1X47.6X44.4)2003-06-01~2005-04-01 |
09263-38006-000 |
from US $49.25 |
||
|
25
|
25
29230-60A01-000 HUB ASSY,REDUCTION2003-06-01~2005-04-01 |
29230-60A01-000 |
from US $69.86 |
||
|
26
|
26
09380-34003-000 CIRCLIP2003-06-01~2005-04-01 |
09380-34003-000 |
from US $0.97 |
||
|
27
|
27
29231-82D00-000 HUB,FR DRIVE CLUTCH2003-06-01~2005-04-01 |
29231-82D00-000 |
from US $35.82 |
||
|
28
|
28
29241-82D00-000 SLEEVE,FRONT DRIVE CLUTCH2003-06-01~2005-04-01 |
29241-82D00-000 |
from US $61.74 |
||
|
29
|
29
29221-53J00-000 SPROCKET,T/F DRIVE2003-06-01~2005-04-01 |
29221-53J00-000 |
from US $98.62 |
||
|
30
|
30
09263-40014-000 BEARING(40.4X48X55.3)2003-06-01~2005-04-01 |
09263-40014-000 |
from US $28.78 |
||
|
31
|
31
29222-53J00-000 BUSH,T/F SPROCKET2003-06-01~2005-04-01 |
29222-53J00-000 |
from US $21.78 |
||
|
32
|
32
29225-53J00-000 CHAIN,T/F DRIVE2003-06-01~2005-04-01 |
29225-53J00-000 |
US $283.88 |
||
|
33
|
33
29151-53J00-000 SHAFT,T/F OUTPUT FR2003-06-01~2005-04-01 |
29151-53J00-000 |
from US $123.77 |
||
|
34
|
34
09262-30077-000 BEARING(30X72X19)Bearing, sub t/m output, r 2003-06-01~2005-04-01 |
09262-30077-000 |
from US $39.20 |
||
|
35
|
35
29411-50J10-000
Gear,speedometer drive
2003-06-01~2005-04-01 |
29411-50J10-000 |
— | ||
|
36
|
36
09380-30007-000 RING,SNAP2003-06-01~2005-04-01 |
09380-30007-000 |
from US $1.67 |
||
|
37
|
37
09263-40006-000 BEARING(40X47X30)2003-06-01~2005-04-01 |
09263-40006-000 |
from US $38.81 |
||
|
38
|
38
09283-40021-000 SEAL,OIL(40X54X10)Oil seal, final drive,fr 2003-06-01~2005-04-01 |
09283-40021-000 |
from US $11.39 |
||
|
39
|
39
29133-60A00-000 RING,T/F COUNTER GEAR FRICTION2003-06-01~2005-04-01 |
29133-60A00-000 |
from US $8.12 |
||
|
40
|
40
06111-06003-000 BALL2003-06-01~2005-04-01 |
06111-06003-000 |
from US $0.76 |
||
|
41
|
41
09263-44001-000 BEARING(44X52X30)2003-06-01~2005-04-01 |
09263-44001-000 |
from US $28.06 |
||
|
42
|
42
09283-44015-000 SEAL,OIL(44X60X9.5)2003-06-01~2005-04-01 |
09283-44015-000 |
from US $15.01 |
||
