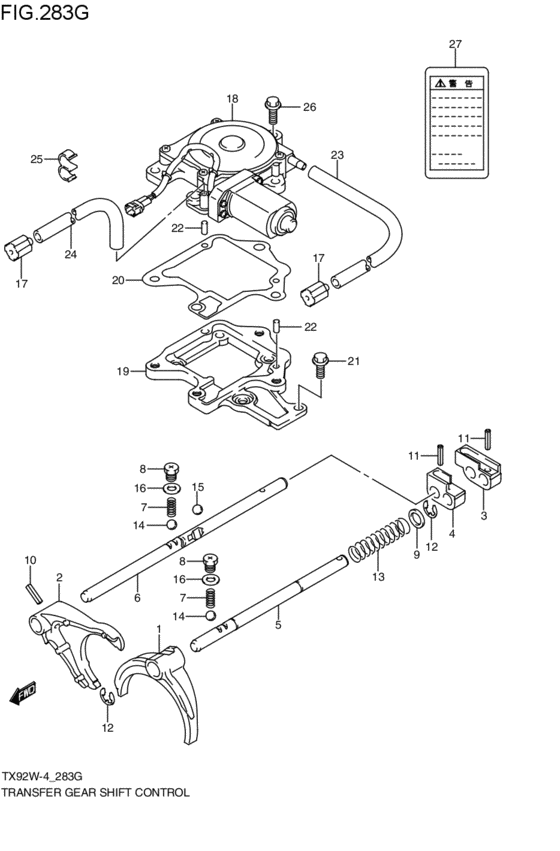

transfer gearlever control (2003-06-01~2005-04-01) Diagram Suzuki ESCUDO
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- H27A
- deice
- NDEICE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29311-50J00-000
FORK,T/F FRONT DRIVE SHIFT
2003-06-01~2005-04-01 |
29311-50J00-000 |
— | ||
|
2
|
2
29321-60A11-000 FORK,T/F REDUCTION SHIFT2003-06-01~2005-04-01 |
29321-60A11-000 |
from US $42.28 |
||
|
3
|
3
29330-50J00-000
Yoke comp,t/f front drive mtr
2003-06-01~2005-04-01 |
29330-50J00-000 |
— | ||
|
4
|
4
29330-50J10-000
YOKE,T/F REDUCTION MTR
2003-06-01~2005-04-01 |
29330-50J10-000 |
— | ||
|
5
|
5
29331-50J00-000
SHAFT,T/F FRONT DRIVE MTR SHF
2003-06-01~2005-04-01 |
29331-50J00-000 |
— | ||
|
6
|
6
29332-50J00-000
SHAFT,T/F REDUCTION MTR SHIFT
2003-06-01~2005-04-01 |
29332-50J00-000 |
— | ||
|
7
|
7
29415-60A00-000 SPRING,T/F GEAR SHF SFT LCTG2003-06-01~2005-04-01 |
29415-60A00-000 |
from US $1.44 |
||
|
8
|
8
09128-10002-000 BOLT(10X9)2003-06-01~2005-04-01 |
09128-10002-000 |
from US $0.47 |
||
|
9
|
9
09181-14167-000 SHIM(14X22X1)Washer, gear shift rh 2003-06-01~2005-04-01 |
09181-14167-000 |
from US $0.81 |
||
|
10
|
10
09205-05012-000 PIN,SPRING(5X25)2003-06-01~2005-04-01 |
09205-05012-000 |
from US $1.17 |
||
|
11
|
11
09205-06007-000 PIN,SPRING(6X25)Pin (6x27) 2003-06-01~2005-04-01 |
09205-06007-000 |
from US $1.04 |
||
|
12
|
12
09383-10002-000 E RING2003-06-01~2005-04-01 |
09383-10002-000 |
from US $1.31 |
||
|
13
|
13
09440-18028-000 SPRING2003-06-01~2005-04-01 |
09440-18028-000 |
from US $1.80 |
||
|
14
|
14
06111-10003-000 BALL2003-06-01~2005-04-01 |
06111-10003-000 |
from US $0.96 |
||
|
15
|
15
06111-12004-000 BALL2003-06-01~2005-04-01 |
06111-12004-000 |
from US $1.06 |
||
|
16
|
16
08322-01103-000
Washer
2003-06-01~2005-04-01 |
08322-01103-000 |
— | ||
| replacements | |||||
|
16
|
16
08322-0110B-000 WASHERWasher, knuckle end 2003-06-01~2005-04-01 |
08322-0110B-000 |
from US $0.76 |
||
|
16
|
16
08322-0110A-000 WASHERWasher, knuckle end 2003-06-01~2005-04-01 |
08322-0110A-000 |
from US $0.80 |
||
|
17
|
17
27991-65D01-000 PLUG,BREATHER2003-06-01~2005-04-01 |
27991-65D01-000 |
from US $1.92 |
||
|
18
|
18
29300-54J00-000 ACTUATOR ASSY,T/F MOTOR SHIFT2003-06-01~2005-04-01 |
29300-54J00-000 |
US $411.84 |
||
|
19
|
19
29751-54J00-000
PLATE,T/F ACTUATOR
2003-06-01~2005-04-01 |
29751-54J00-000 |
— | ||
|
20
|
20
29752-54J00-000 GASKET,ACTUATOR PLATE2003-06-01~2005-04-01 |
29752-54J00-000 |
US $5.59 |
||
|
21
|
21
09103-08393-000 BOLT(8X20)2003-06-01~2005-04-01 |
09103-08393-000 |
from US $3.96 |
||
|
22
|
22
09202-06037-000
PIN
2003-06-01~2005-04-01 |
09202-06037-000 |
— | ||
|
23
|
23
09352-70113-00B
HOSE(7X11X2000)
L2000>1150; 2003-06-01~2005-04-01 |
09352-70113-00B |
— | ||
| replacement | |||||
|
23
|
23
09352-70119-00B Hose(7X11X2000)L2000>1150; 2003-06-01~2005-04-01 |
09352-70119-00B |
from US $22.40 |
||
|
24
|
24
09352-70113-00B
HOSE(7X11X2000)
L:2000>880; 2003-06-01~2005-04-01 |
09352-70113-00B |
— | ||
| replacement | |||||
|
24
|
24
09352-70119-00B Hose(7X11X2000)L:2000>880; 2003-06-01~2005-04-01 |
09352-70119-00B |
from US $22.40 |
||
|
25
|
25
09408-00100-000 CLIP2003-06-01~2005-04-01 |
09408-00100-000 |
US $19.50 |
||
|
26
|
26
01550-08203-000
Bolt
2003-06-01~2005-04-01 |
01550-08203-000 |
— | ||
| replacements | |||||
|
26
|
26
01550-0820B-000 Bolt2003-06-01~2005-04-01 |
01550-0820B-000 |
from US $0.91 |
||
|
26
|
26
01550-0820A-000 BoltBolt, funnel bracket 2003-06-01~2005-04-01 |
01550-0820A-000 |
from US $1.12 |
||
|
27
|
27
28381-50J80-000
エンブレム,トランスファギヤシフト
2003-06-01~2005-04-01 |
28381-50J80-000 |
— | ||
