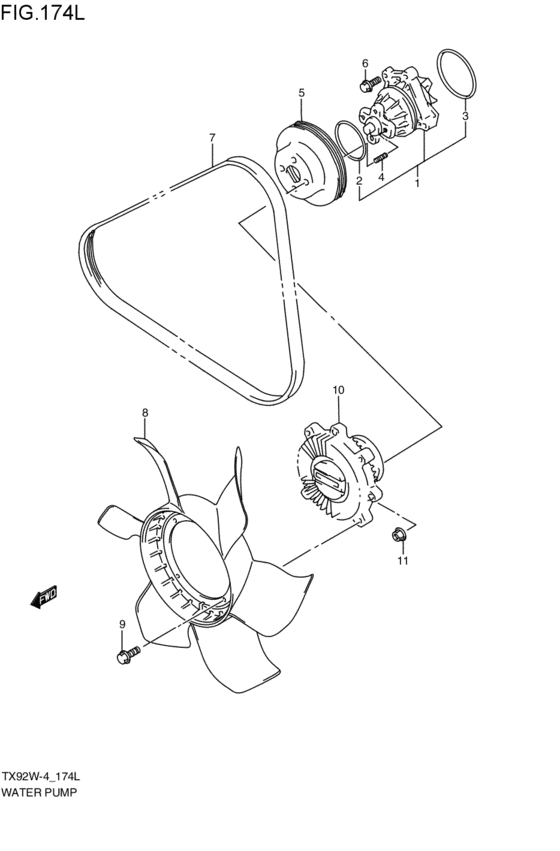

water pump (2003-06-01~2005-04-01) Diagram Suzuki ESCUDO
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- H27A
- deice
- NDEICE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17400-85830-000
Pump set,water
2003-06-01~2005-04-01 |
17400-85830-000 |
— | ||
| replacement | |||||
|
1
|
1
17400-85831-000
PUMP SET,WATER
2003-06-01~2005-04-01 |
17400-85831-000 |
— | ||
|
2
|
2
09280-62003-000 O RING(D:3.5,ID:60.7)2003-06-01~2005-04-01 |
09280-62003-000 |
from US $3.92 |
||
|
3
|
3
09280-71003-000 O RING(D:3.5,ID:70)2003-06-01~2005-04-01 |
09280-71003-000 |
from US $12.24 |
||
|
4
|
4
09108-08244-000 BOLT,STUD2003-06-01~2005-04-01 |
09108-08244-000 |
from US $1.06 |
||
|
5
|
5
17511-85FA1-000 PULLEY,WATER PUMP2003-06-01~2005-04-01 |
17511-85FA1-000 |
from US $48.17 |
||
|
6
|
6
01550-08303-000
Bolt
2003-06-01~2005-04-01 |
01550-08303-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0830B-000 Bolt2003-06-01~2005-04-01 |
01550-0830B-000 |
from US $1.06 |
||
|
6
|
6
01550-0830A-000 BoltBolt, mount oil seal cover 2003-06-01~2005-04-01 |
01550-0830A-000 |
from US $1.06 |
||
|
7
|
7
17521-85FA0-000 BELT,WATER PUMP 4PK9302003-06-01~2005-04-01 |
17521-85FA0-000 |
from US $33.71 |
||
|
8
|
8
17110-52D00-000 FAN,ENG COOLING2003-06-01~2005-04-01 |
17110-52D00-000 |
from US $91.12 |
||
|
9
|
9
01550-06203-000
Bolt
2003-06-01~2005-04-01 |
01550-06203-000 |
— | ||
| replacement | |||||
|
9
|
9
01550-0620B-000 BoltBolt, inspection cap 2003-06-01~2005-04-01 |
01550-0620B-000 |
from US $0.76 |
||
|
10
|
10
17120-52D10-000 CLUTCH ASSY,FAN2003-06-01~2005-04-01 |
17120-52D10-000 |
from US $208.82 |
||
|
11
|
11
08316-10083-000
Nut
2003-06-01~2005-04-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
11
|
11
08316-1008B-000 NUT2003-06-01~2005-04-01 |
08316-1008B-000 |
from US $0.76 |
||
