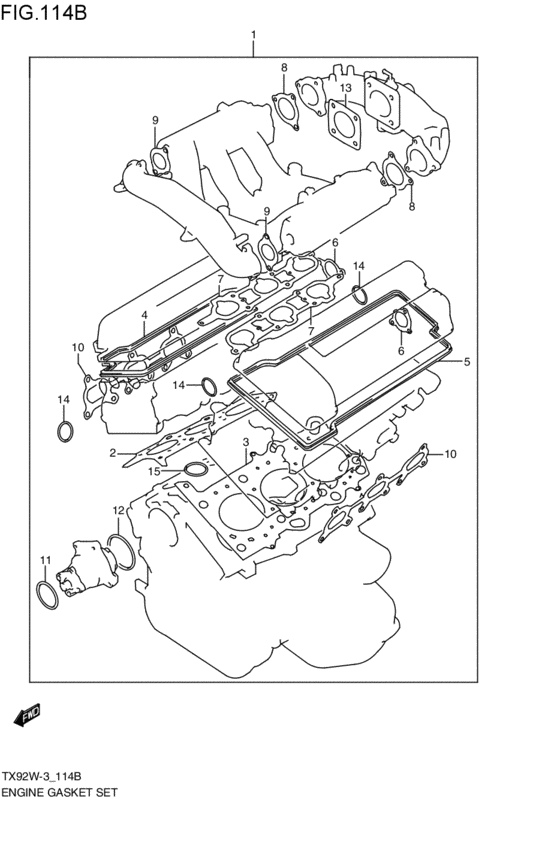

engine gasket set (2002-11-01~2003-05-01) Diagram Suzuki ESCUDO
- Year
- 2002 - 2011
- Sales region
- Japan
- grade
- LZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11400-52821-000
ガスケットセット,エンジン
2002-11-01~2003-05-01 |
11400-52821-000 |
— | ||
| replacement | |||||
|
1
|
1
11400-52823-000 GASKET SET,ENGINE2002-11-01~2003-05-01 |
11400-52823-000 |
from US $411.28 |
||
|
2
|
2
11141-52D01-000 GASKET,CYL HEAD,R2002-11-01~2003-05-01 |
11141-52D01-000 |
from US $113.60 |
||
|
3
|
3
11142-52D01-000 GASKET,CYL HEAD,L2002-11-01~2003-05-01 |
11142-52D01-000 |
from US $111.53 |
||
|
4
|
4
11176-85FA0-000 GASKET,CYL HEAD COVER,R2002-11-01~2003-05-01 |
11176-85FA0-000 |
from US $31.01 |
||
|
5
|
5
11186-85FA0-000 GASKET,CYL HEAD COVER,L2002-11-01~2003-05-01 |
11186-85FA0-000 |
from US $30.87 |
||
|
6
|
6
17579-85FA0-000 GASKET,WTR OUTLET CAP2002-11-01~2003-05-01 |
17579-85FA0-000 |
from US $7.52 |
||
|
7
|
7
13119-77E00-000 GASKET,INTK MANF2002-11-01~2003-05-01 |
13119-77E00-000 |
from US $13.43 |
||
|
8
|
8
13122-67D00-000 GASKET,COLLECTOR2002-11-01~2003-05-01 |
13122-67D00-000 |
from US $6.14 |
||
|
9
|
9
13139-67D00-000 GASKET,SURGE TANK PIPE2002-11-01~2003-05-01 |
13139-67D00-000 |
from US $2.72 |
||
|
10
|
10
14140-67D02-000
GASKETSV 625
2002-11-01~2003-05-01 |
14140-67D02-000 |
— | ||
| replacement | |||||
|
10
|
10
14140-67D03-000 GASKET,EXH MANF2002-11-01~2003-05-01 |
14140-67D03-000 |
from US $35.57 |
||
|
11
|
11
09280-62003-000 O RING(D:3.5,ID:60.7)2002-11-01~2003-05-01 |
09280-62003-000 |
from US $3.92 |
||
|
12
|
12
09280-71003-000 O RING(D:3.5,ID:70)2002-11-01~2003-05-01 |
09280-71003-000 |
from US $12.24 |
||
|
13
|
13
13421-52D00-000 GASKET,THROTTLE BODY2002-11-01~2003-05-01 |
13421-52D00-000 |
from US $4.48 |
||
|
14
|
14
09280-34005-000 O RING(D:3.5,ID:33.7)2002-11-01~2003-05-01 |
09280-34005-000 |
from US $2.08 |
||
|
15
|
15
09280-44008-000 O RING(D:2.4,ID:39.5)2002-11-01~2003-05-01 |
09280-44008-000 |
from US $3.04 |
||
