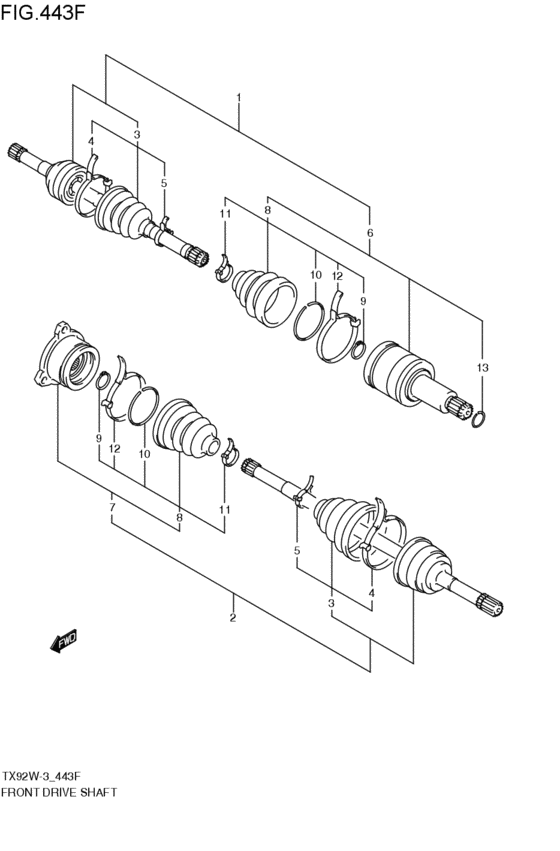

front-drive shaft (2002-11-01~2003-05-01) Diagram Suzuki ESCUDO
- Year
- 2002 - 2011
- Sales region
- Japan
- grade
- LZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44101-67D01-000 SHAFT ASSY,FRONT DRIVE,R2002-11-01~2003-05-01 |
44101-67D01-000 |
from US $539.93 |
||
|
2
|
2
44102-67D00-000 SHAFT ASSY,FRONT DRIVE,L2002-11-01~2003-05-01 |
44102-67D00-000 |
from US $492.59 |
||
|
3
|
3
44118-67D01-000
BOOT SET,WHEEL SIDE
2002-11-01~2003-05-01 |
44118-67D01-000 |
— | ||
| replacement | |||||
|
3
|
3
44118-67D02-000 BOOT SET,WHEEL SIDE2002-11-01~2003-05-01 |
44118-67D02-000 |
from US $106.72 |
||
|
4
|
4
44121-78E00-000 CLAMP,BOOT2002-11-01~2003-05-01 |
44121-78E00-000 |
from US $6.48 |
||
|
5
|
5
44124-78E00-000 CLAMP,BOOT2002-11-01~2003-05-01 |
44124-78E00-000 |
from US $5.09 |
||
|
6
|
6
44114-67D01-000
JOINT ASSY,DIFF SIDE,R
2002-11-01~2003-05-01 |
44114-67D01-000 |
— | ||
| replacement | |||||
|
6
|
6
44114-67D02-000 JOINT ASSY,DIFF SIDE,R2002-11-01~2003-05-01 |
44114-67D02-000 |
US $457.60 |
||
|
7
|
7
44115-67D00-000 JOINT ASSY,DIFF SIDE,L2002-11-01~2003-05-01 |
44115-67D00-000 |
from US $325.85 |
||
|
8
|
8
44119-67D01-000
Boot set,diff side
2002-11-01~2003-05-01 |
44119-67D01-000 |
— | ||
| replacement | |||||
|
8
|
8
44119-59JA0-000 BOOT SET,DIFF SIDE2002-11-01~2003-05-01 |
44119-59JA0-000 |
from US $99.36 |
||
|
9
|
9
44111-60A00-000 RING,SNAP2002-11-01~2003-05-01 |
44111-60A00-000 |
from US $1.33 |
||
|
10
|
10
44112-78E00-000 CIRCLIP2002-11-01~2003-05-01 |
44112-78E00-000 |
from US $2.43 |
||
|
11
|
11
44124-78E00-000 CLAMP,BOOT2002-11-01~2003-05-01 |
44124-78E00-000 |
from US $5.09 |
||
|
12
|
12
44123-78E00-000 CLAMP,BOOT2002-11-01~2003-05-01 |
44123-78E00-000 |
from US $6.28 |
||
|
13
|
13
44111-65D00-000 RING,SNAPライト; 2002-11-01~2003-05-01 |
44111-65D00-000 |
from US $1.60 |
||
