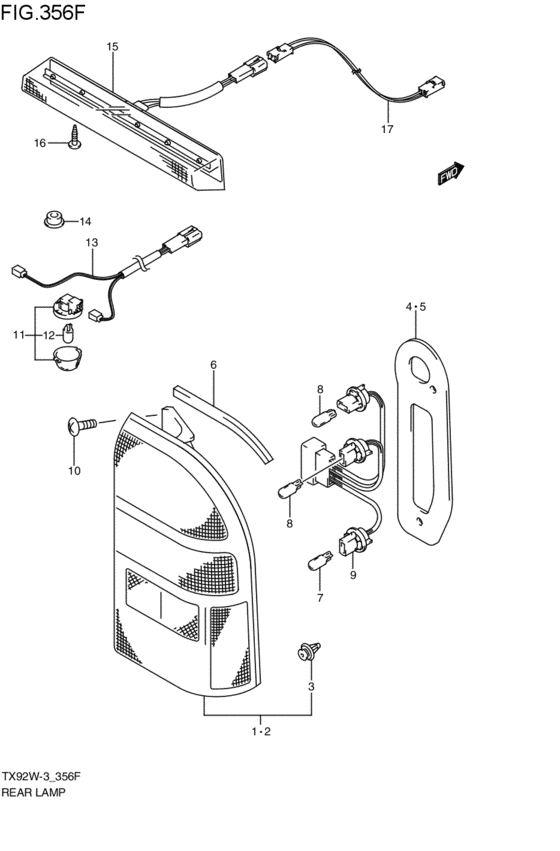

rear lamp (2002-11-01~2003-05-01) Diagram Suzuki ESCUDO
- Year
- 2002 - 2011
- Sales region
- Japan
- grade
- LZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35650-65D10-000 LAMP UNIT,RR COMB,R2002-11-01~2003-05-01 |
35650-65D10-000 |
from US $85.32 |
||
|
2
|
2
35670-65D10-000 LAMP UNIT,RR COMB,L2002-11-01~2003-05-01 |
35670-65D10-000 |
from US $126.70 |
||
|
3
|
3
71812-78F00-000 CLIP2002-11-01~2003-05-01 |
71812-78F00-000 |
from US $1.67 |
||
|
4
|
4
35657-65D00-000 GASKET,LAMP UNIT,R2002-11-01~2003-05-01 |
35657-65D00-000 |
from US $5.40 |
||
|
5
|
5
35677-65D00-000 GASKET,LAMP UNIT,L2002-11-01~2003-05-01 |
35677-65D00-000 |
from US $6.32 |
||
|
6
|
6
35653-65D00-000 SEAL,LAMP UNIT2002-11-01~2003-05-01 |
35653-65D00-000 |
from US $3.78 |
||
|
7
|
7
09471-12192-000 BULB(12V21/5W)2002-11-01~2003-05-01 |
09471-12192-000 |
from US $3.19 |
||
|
8
|
8
09471-12191-000 BULB(12V21W)2002-11-01~2003-05-01 |
09471-12191-000 |
from US $5.04 |
||
|
9
|
9
35658-65D00-000 SOCKET&CORD ASSY2002-11-01~2003-05-01 |
35658-65D00-000 |
from US $19.33 |
||
|
10
|
10
02142-06163-000
Screw
2002-11-01~2003-05-01 |
02142-06163-000 |
— | ||
| replacement | |||||
|
10
|
10
02142-0616A-000 SCREW2002-11-01~2003-05-01 |
02142-0616A-000 |
from US $0.76 |
||
|
11
|
11
35910-75F11-000
Lamp assy, license
2002-11-01~2003-05-01 |
35910-75F11-000 |
— | ||
| replacement | |||||
|
11
|
11
35910-75F12-000 Lamp assy,license2002-11-01~2003-05-01 |
35910-75F12-000 |
from US $14.33 |
||
|
12
|
12
09471-12081-000
Bulb (12v,5w)
TOKAI DENSO; 2002-11-01~2003-05-01 |
09471-12081-000 |
— | ||
| replacement | |||||
|
12
|
12
09471-12216-000 BULB(12V5W)Bulb (12v5w) TOKAI DENSO; 2002-11-01~2003-05-01 |
09471-12216-000 |
from US $3.02 |
||
|
13
|
13
36843-65D00-000 WIRE,LICENSE LAMP2002-11-01~2003-05-01 |
36843-65D00-000 |
from US $9 |
||
|
14
|
14
09308-06009-000 GROMMET2002-11-01~2003-05-01 |
09308-06009-000 |
US $1.76 |
||
|
15
|
15
35810-82D10-000 LAMP ASSY,HIGH MT STOP2002-11-01~2003-05-01 |
35810-82D10-000 |
from US $78.21 |
||
|
16
|
16
03242-04163-000
Screw
2002-11-01~2003-05-01 |
03242-04163-000 |
— | ||
| replacement | |||||
|
16
|
16
03242-0416B-000 SCREW2002-11-01~2003-05-01 |
03242-0416B-000 |
from US $2.88 |
||
|
17
|
17
36842-65D00-000 WIRE,HIGH MOUNT STOP LAMP2002-11-01~2003-05-01 |
36842-65D00-000 |
from US $9.27 |
||
