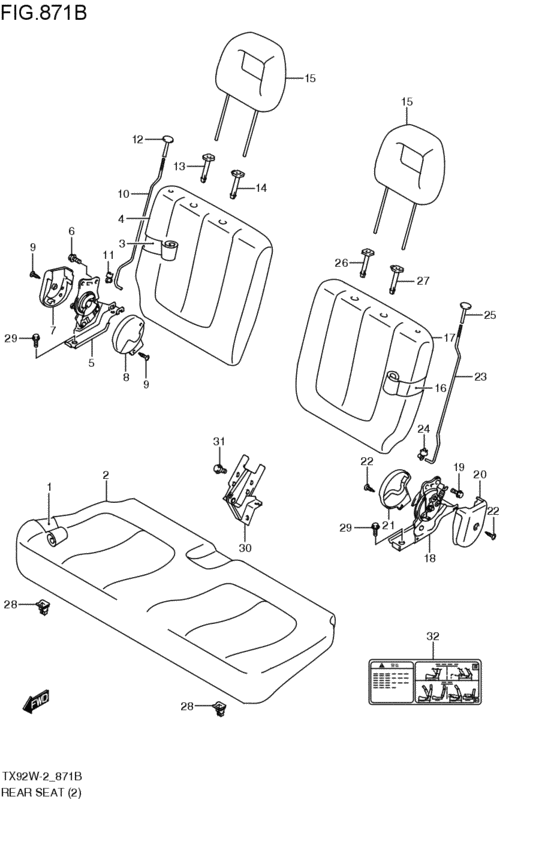

rear seat (サードシート,KD2(KANSAI)シートトリム; LZ:KAN; 2002-01-01~2002-11-01) Diagram Suzuki ESCUDO
- Year
- 2002 - 2011
- Sales region
- Japan
- Engine
- H27A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- KAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
88160-52DC0-000
Pad comp,3rd cush
KD2(KANSAI); LZ:KAN; 2002-01-01~2002-11-01 |
88160-52DC0-000 |
— | ||
|
2
|
2
88180-52DC0-JU2
トリム,サードクッション
ブラウン/グレー,KD2(KANSAI); LZ:KAN; 2002-01-01~2002-11-01 |
88180-52DC0-JU2 |
— | ||
|
3
|
3
88305-52DC0-000
バックサブアッシ,サード,ライト
KD2(KANSAI); LZ:KAN; 2002-01-01~2002-11-01 |
88305-52DC0-000 |
— | ||
|
4
|
4
88380-52DC0-JU2
トリム,サードバック,ライト
ブラウン/グレー,KD2(KANSAI); LZ:KAN; 2002-01-01~2002-11-01 |
88380-52DC0-JU2 |
— | ||
|
5
|
5
88210-52DA0-000
リクライニングアッシ,サード,ライト
LZ:KAN; 2002-01-01~2002-11-01 |
88210-52DA0-000 |
— | ||
| replacement | |||||
|
5
|
5
88210-52DA1-000
RECLINING ASSY,RR,R
LZ:KAN; 2002-01-01~2002-11-01 |
88210-52DA1-000 |
— | ||
|
6
|
6
01550-10203-000
Bolt
LZ:KAN; 2002-01-01~2002-11-01 |
01550-10203-000 |
— | ||
| replacement | |||||
|
6
|
6
01550-1020A-000 BoltBolt, bal sprocket LZ:KAN; 2002-01-01~2002-11-01 |
01550-1020A-000 |
from US $0.96 |
||
|
7
|
7
87221-65DL0-T01
COVER,RR RECL OUTSIDE,R
グレ-; LZ:KAN; 2002-01-01~2002-11-01 |
87221-65DL0-T01 |
— | ||
|
8
|
8
88222-52DA0-T01
COVER,3RD RECL INSIDE,R
グレ-; LZ:KAN; 2002-01-01~2002-11-01 |
88222-52DA0-T01 |
— | ||
|
9
|
9
03242-05123-000
Screw, inner cover
LZ:KAN; 2002-01-01~2002-11-01 |
03242-05123-000 |
— | ||
| replacement | |||||
|
9
|
9
03241-0512A-000 SCREWLZ:KAN; 2002-01-01~2002-11-01 |
03241-0512A-000 |
from US $0.68 |
||
|
10
|
10
88215-52DA0-000
ROD,3RD RCLNG,R
LZ:KAN; 2002-01-01~2002-11-01 |
88215-52DA0-000 |
— | ||
|
11
|
11
09403-04306-000 CLAMPConnector, choke rod LZ:KAN; 2002-01-01~2002-11-01 |
09403-04306-000 |
US $20.20 |
||
|
12
|
12
87211-74G00-T01
Knob, rear back (gray)
グレ-; LZ:KAN; 2002-01-01~2002-11-01 |
87211-74G00-T01 |
— | ||
| replacement | |||||
|
12
|
12
87211-74G10-T01 KNOB,RR BACKグレ-; LZ:KAN; 2002-01-01~2002-11-01 |
87211-74G10-T01 |
from US $3.96 |
||
|
13
|
13
85341-81A00-T01 GUIDE,HEADRESTRAINTグレ-; LZ:KAN; 2002-01-01~2002-11-01 |
85341-81A00-T01 |
US $6.04 |
||
|
14
|
14
85840-81A00-T01
Guide, headrestraint (gray)
グレ-; LZ:KAN; 2002-01-01~2002-11-01 |
85840-81A00-T01 |
— | ||
| replacement | |||||
|
14
|
14
85840-81A10-T01 GUIDE,HEADRESTRAINTグレ-; LZ:KAN; 2002-01-01~2002-11-01 |
85840-81A10-T01 |
US $13.73 |
||
|
15
|
15
86401-52DC0-R6V
ヘッドレストレイントアッシ
グレー,KD2(KANSAI); LZ:KAN; 2002-01-01~2002-11-01 |
86401-52DC0-R6V |
— | ||
|
16
|
16
88306-52DC0-000
バックサブアッシ,サード,レフト
KD2(KANSAI); LZ:KAN; 2002-01-01~2002-11-01 |
88306-52DC0-000 |
— | ||
|
17
|
17
88880-52DC0-JU2
トリム,サードバック,レフト
ブラウン/グレー,KD2(KANSAI); LZ:KAN; 2002-01-01~2002-11-01 |
88880-52DC0-JU2 |
— | ||
|
18
|
18
88710-52DA0-000
リクライニングアッシ,サード,レフト
LZ:KAN; 2002-01-01~2002-11-01 |
88710-52DA0-000 |
— | ||
| replacement | |||||
|
18
|
18
88710-52DA1-000
RECLINING ASSY,RR,L
LZ:KAN; 2002-01-01~2002-11-01 |
88710-52DA1-000 |
— | ||
|
19
|
19
01550-10203-000
Bolt
LZ:KAN; 2002-01-01~2002-11-01 |
01550-10203-000 |
— | ||
| replacement | |||||
|
19
|
19
01550-1020A-000 BoltBolt, bal sprocket LZ:KAN; 2002-01-01~2002-11-01 |
01550-1020A-000 |
from US $0.96 |
||
|
20
|
20
87721-65DL0-T01
Cover,rr recl outside,l(gray)
グレ-; LZ:KAN; 2002-01-01~2002-11-01 |
87721-65DL0-T01 |
— | ||
|
21
|
21
88722-52DA0-T01
COVER,3RD RECL INSIDE,L
グレ-; LZ:KAN; 2002-01-01~2002-11-01 |
88722-52DA0-T01 |
— | ||
|
22
|
22
03242-05123-000
Screw, inner cover
LZ:KAN; 2002-01-01~2002-11-01 |
03242-05123-000 |
— | ||
| replacement | |||||
|
22
|
22
03241-0512A-000 SCREWLZ:KAN; 2002-01-01~2002-11-01 |
03241-0512A-000 |
from US $0.68 |
||
|
23
|
23
88715-52DA0-000
ROD,3RD RCLNG,L
LZ:KAN; 2002-01-01~2002-11-01 |
88715-52DA0-000 |
— | ||
|
24
|
24
09403-04306-000 CLAMPConnector, choke rod LZ:KAN; 2002-01-01~2002-11-01 |
09403-04306-000 |
US $20.20 |
||
|
25
|
25
87211-74G00-T01
Knob, rear back (gray)
グレ-; LZ:KAN; 2002-01-01~2002-11-01 |
87211-74G00-T01 |
— | ||
| replacement | |||||
|
25
|
25
87211-74G10-T01 KNOB,RR BACKグレ-; LZ:KAN; 2002-01-01~2002-11-01 |
87211-74G10-T01 |
from US $3.96 |
||
|
26
|
26
85341-81A00-T01 GUIDE,HEADRESTRAINTグレ-; LZ:KAN; 2002-01-01~2002-11-01 |
85341-81A00-T01 |
US $6.04 |
||
|
27
|
27
85840-81A00-T01
Guide, headrestraint (gray)
グレ-; LZ:KAN; 2002-01-01~2002-11-01 |
85840-81A00-T01 |
— | ||
| replacement | |||||
|
27
|
27
85840-81A10-T01 GUIDE,HEADRESTRAINTグレ-; LZ:KAN; 2002-01-01~2002-11-01 |
85840-81A10-T01 |
US $13.73 |
||
|
28
|
28
87460-76G01-000 HOOK,RR SEAT CUSHLZ:KAN; 2002-01-01~2002-11-01 |
87460-76G01-000 |
from US $1.92 |
||
|
29
|
29
01551-10203-000
Bolt, 3rd striker
LZ:KAN; 2002-01-01~2002-11-01 |
01551-10203-000 |
— | ||
| replacement | |||||
|
29
|
29
01551-1020A-000 BoltLZ:KAN; 2002-01-01~2002-11-01 |
01551-1020A-000 |
US $17.30 |
||
|
30
|
30
88950-52DA0-000
HINGE,3RD BACK CTR
LZ:KAN; 2002-01-01~2002-11-01 |
88950-52DA0-000 |
— | ||
|
31
|
31
01551-10203-000
Bolt, 3rd striker
LZ:KAN; 2002-01-01~2002-11-01 |
01551-10203-000 |
— | ||
| replacement | |||||
|
31
|
31
01551-1020A-000 BoltLZ:KAN; 2002-01-01~2002-11-01 |
01551-1020A-000 |
US $17.30 |
||
|
32
|
32
86720-52DC0-000
ラベル,シートウォーニング
LZ:KAN; 2002-01-01~2002-11-01 |
86720-52DC0-000 |
— | ||
