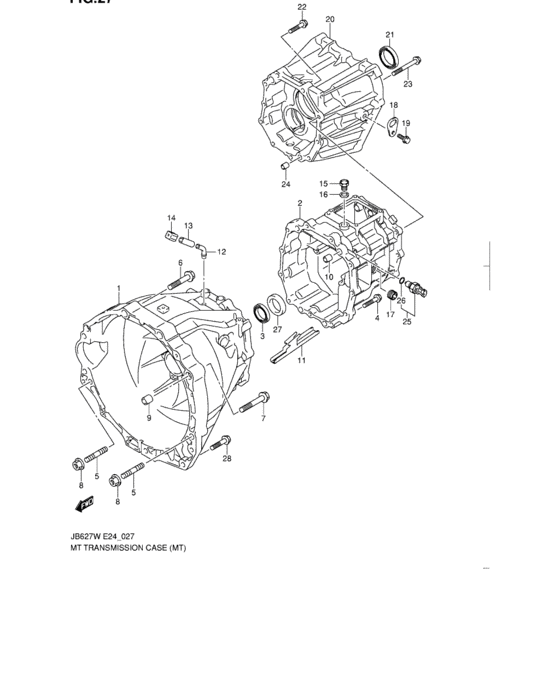

Mt tm case (MT) Diagram Suzuki GRAND VITARA
- Year
- -
- Sales region
- Pacific
- transmission
- MT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24711-64J00-000 CASE,T/M,FR |
24711-64J00-000 |
from US $414.70 |
||
|
2
|
2
24721-84A01-000 CASE,T/M,RR |
24721-84A01-000 |
from US $230 |
||
|
3
|
3
09283-30074-000 SEAL,OIL(30X42X7) |
09283-30074-000 |
from US $6.28 |
||
|
4
|
4
01550-0840A-000 Bolt |
01550-0840A-000 |
from US $1.12 |
||
|
5
|
5
09108-12012-000 BOLT,STUD |
09108-12012-000 |
from US $2.72 |
||
|
6
|
6
01550-1265A-000 Bolt |
01550-1265A-000 |
US $24.70 |
||
|
7
|
7
01550-1275A-000 Bolt |
01550-1275A-000 |
from US $2.08 |
||
|
8
|
8
08316-1012A-000 NUT |
08316-1012A-000 |
from US $0.96 |
||
|
9
|
9
09206-15001-000 PIN(12.4X15X17) |
09206-15001-000 |
from US $1.92 |
||
|
10
|
10
04211-13149-000 PIN |
04211-13149-000 |
from US $1.44 |
||
|
11
|
11
24815-84A00-000 GUTTER,OIL |
24815-84A00-000 |
from US $4.25 |
||
|
12
|
12
24821-59J00-000 UNION,BREATHER |
24821-59J00-000 |
from US $1.64 |
||
|
13
|
13
09352-70113-600
HOSE(7X11X600)
L:600->40 |
09352-70113-600 |
— | ||
| replacement | |||||
|
13
|
13
09352-70119-600 Hose(7X11X600)L:600->40 |
09352-70119-600 |
from US $4.96 |
||
|
14
|
14
27991-65D01-000 PLUG,BREATHER |
27991-65D01-000 |
from US $1.92 |
||
|
15
|
15
09247-14029-000 PLUG |
09247-14029-000 |
from US $1.60 |
||
|
16
|
16
22913-59J10-000 GASKET,14X20X0.9 |
22913-59J10-000 |
from US $1.52 |
||
|
17
|
17
09246-16010-000 PLUG |
09246-16010-000 |
US $4.37 |
||
| replacement | |||||
|
17
|
17
09246-16021-000 Plug,t/m Oil Drain |
09246-16021-000 |
from US $4.37 |
||
|
18
|
18
11851-72B21-000 HOOK,ENGINE |
11851-72B21-000 |
from US $1.78 |
||
|
19
|
19
01550-0816A-000 BoltBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
|
20
|
20
24771-64J00-000
ケース,アダプタ
|
24771-64J00-000 |
— | ||
| replacement | |||||
|
20
|
20
24771-64J01-000 CASE,ADAPTER |
24771-64J01-000 |
US $281.52 |
||
|
21
|
21
09283-44015-000 SEAL,OIL(44X60X9.5) |
09283-44015-000 |
from US $15.01 |
||
|
22
|
22
01550-0840A-000 Bolt |
01550-0840A-000 |
from US $1.12 |
||
|
23
|
23
01550-0880A-000 Bolt |
01550-0880A-000 |
from US $1.67 |
||
|
24
|
24
04211-13149-000 PIN |
04211-13149-000 |
from US $1.44 |
||
|
25
|
25
37610-76G10-000 SWITCH ASSY,BACK UP |
37610-76G10-000 |
from US $18.09 |
||
|
26
|
26
09280-11002-000 O RING(D:1.9,ID:11.4) |
09280-11002-000 |
from US $0.97 |
||
|
27
|
27
24151-64J00-000 SEAL,PUMP |
24151-64J00-000 |
from US $14.22 |
||
|
28
|
28
01550-1050A-000 BoltBolt, exhaust tube |
01550-1050A-000 |
from US $1.28 |
||
