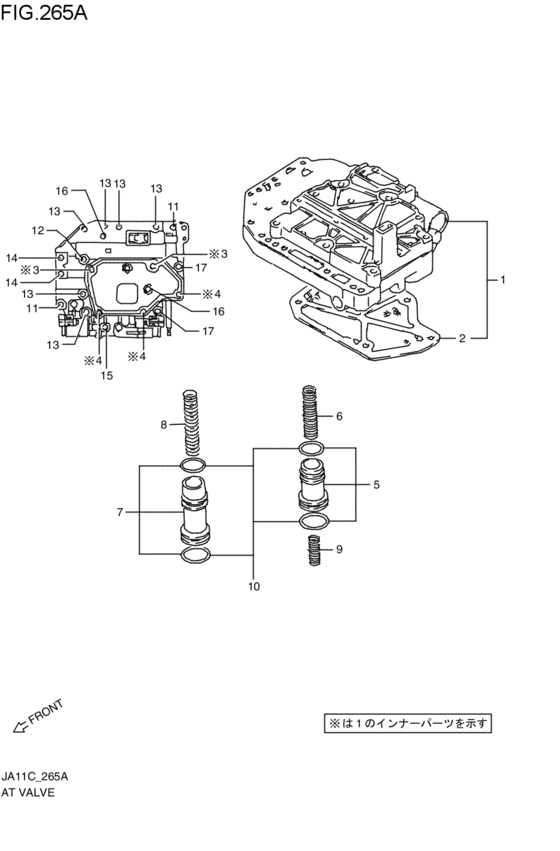

at - valve (3AT; 1992-06-01~) Diagram Suzuki JIMNY
- Year
- 1994
- Sales region
- Japan
- Engine
- 2V
- supercharge
- TURBO
- drive
- 4WD
- transmission
- 3AT
- grade
- CC
- type
- TYPE4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
26500-83C00-000
バルブアッシ,トランスミッション
3AT; 1992-06-01~ |
26500-83C00-000 |
— | ||
| replacement | |||||
|
1
|
1
26500-83C02-000
Body assy,t/m valve
3AT; 1992-06-01~ |
26500-83C02-000 |
— | ||
|
2
|
2
26570-83C00-000 STRAINER ASSY,OIL3AT; 1992-06-01~ |
26570-83C00-000 |
US $68 |
||
|
3
|
3
26596-85500-000 BOLT,VALVE BODY NO.53AT; 1992-06-01~ |
26596-85500-000 |
US $1.62 |
||
|
4
|
4
26597-85500-000 BOLT,VALVE BODY NO.63AT; 1992-06-01~ |
26597-85500-000 |
US $1.62 |
||
|
5
|
5
26531-83CT0-000 PISTON SET,C1 ACC3AT; 1992-06-01~ |
26531-83CT0-000 |
US $47.10 |
||
|
6
|
6
26563-68C10-000
SPRING,ACC FWD PISTON UPPER
3AT; 1992-06-01~ |
26563-68C10-000 |
— | ||
|
7
|
7
26532-83CT0-000
PISTON SET,B1 ACC
3AT; 1992-06-01~ |
26532-83CT0-000 |
— | ||
|
8
|
8
26561-85580-000
Spring,acc 2nd brake piston
3AT; 1992-06-01~ |
26561-85580-000 |
— | ||
|
9
|
9
26562-68C10-000
SPRING,ACC FWD PISTON LOWER
3AT; 1992-06-01~ |
26562-68C10-000 |
— | ||
|
10
|
10
26533-72BT0-000 SEAL RING SET,ACC3AT; 1992-06-01~ |
26533-72BT0-000 |
US $10.49 |
||
|
11
|
11
26586-85500-000 BOLT,VALVE BODY NO.23AT; 1992-06-01~ |
26586-85500-000 |
US $1.73 |
||
|
12
|
12
26587-85500-000 BOLT,VALVE BODY NO.33AT; 1992-06-01~ |
26587-85500-000 |
US $2.02 |
||
|
13
|
13
26588-85500-000 BOLT,VALVE BODY NO.13AT; 1992-06-01~ |
26588-85500-000 |
US $1.77 |
||
|
14
|
14
26589-85500-000 BOLT,VALVE BODY NO.43AT; 1992-06-01~ |
26589-85500-000 |
from US $1.08 |
||
|
15
|
15
26598-85500-000 BOLT,VALVE BODY NO.63AT; 1992-06-01~ |
26598-85500-000 |
US $1.95 |
||
|
16
|
16
26565-55A10-000
スプリング,プレッシャレギュレータバルブ
3AT; 1992-06-01~ |
26565-55A10-000 |
— | ||
|
17
|
17
26566-55A10-000
スプリング,アキュムレータセカンドブレーキリターン
3AT; 1992-06-01~ |
26566-55A10-000 |
— | ||
