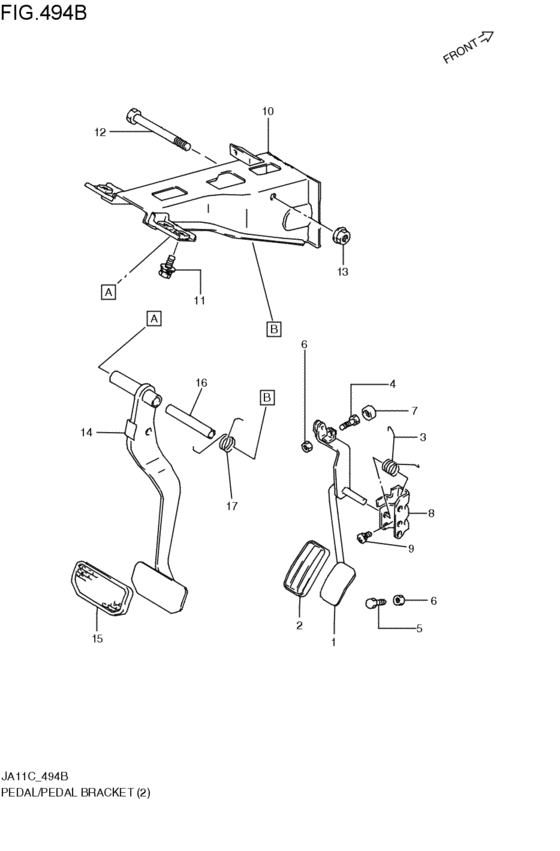

pedal / pedal bracket (3AT; 1990-02-01~) Diagram Suzuki JIMNY
- Year
- 1994
- Sales region
- Japan
- Engine
- 2V
- supercharge
- TURBO
- drive
- 4WD
- transmission
- 3AT
- grade
- CC
- type
- TYPE4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
49410-82C00-000
ペダル,アクセレレータ
3AT; 1992-06-01~ |
49410-82C00-000 |
— | ||
|
2
|
2
49451-80100-000 PAD,ACCELERATOR PEDAL3AT; 1992-06-01~ |
49451-80100-000 |
from US $3.22 |
||
|
3
|
3
09448-21003-000
SPRING
3AT; 1992-06-01~ |
09448-21003-000 |
— | ||
| replacement | |||||
|
3
|
3
09448-21005-000 SPRING3AT; 1992-06-01~ |
09448-21005-000 |
from US $1.64 |
||
|
4
|
4
01500-06253-000 BoltBolt, fuel injection bracket 3AT; 1992-06-01~ |
01500-06253-000 |
US $2.49 |
||
| replacement | |||||
|
4
|
4
01500-0625A-000 BoltBolt, gear shift arm 3AT; 1992-06-01~ |
01500-0625A-000 |
from US $0.96 |
||
|
5
|
5
09111-06055-000
ボルト,6X38
3AT; 1992-06-01~ |
09111-06055-000 |
— | ||
|
6
|
6
08310-00063-000
Nut
3AT; 1992-06-01~ |
08310-00063-000 |
— | ||
| replacements | |||||
|
6
|
6
08310-0006B-000 NUTNut gear shift link rod 3AT; 1992-06-01~ |
08310-0006B-000 |
from US $0.76 |
||
|
6
|
6
08310-0006A-000 NUT3AT; 1992-06-01~ |
08310-0006A-000 |
from US $0.76 |
||
|
7
|
7
09251-09002-000
CAP(OD:13.6)
3AT; 1992-06-01~ |
09251-09002-000 |
— | ||
| replacement | |||||
|
7
|
7
09251-09008-000 Cap(Od:13.6)3AT; 1992-06-01~ |
09251-09008-000 |
from US $1.69 |
||
|
8
|
8
49511-80101-000
ブラケット,アクセレレータ
3AT; 1992-06-01~ |
49511-80101-000 |
— | ||
| replacement | |||||
|
8
|
8
49511-80102-000 BRACKET,ACCELERATOR3AT; 1992-06-01~ |
49511-80102-000 |
US $8.10 |
||
|
9
|
9
01570-06123-000
Bolt
3AT; 1992-06-01~ |
01570-06123-000 |
— | ||
| replacements | |||||
|
9
|
9
01570-0612B-000 BoltBolt, upper 3AT; 1992-06-01~ |
01570-0612B-000 |
US $0.96 |
||
|
9
|
9
01570-0612A-000 BoltBolt 3AT; 1992-06-01~ |
01570-0612A-000 |
from US $0.96 |
||
|
10
|
10
49710-82C10-000
ブラケット,ペダル
3AT; 1992-06-01~ |
49710-82C10-000 |
— | ||
|
11
|
11
09139-08015-000 SCREW(8X30)3AT; 1992-06-01~ |
09139-08015-000 |
from US $0.52 |
||
|
12
|
12
09100-10151-000 BOLT(10X107)3AT; 1992-06-01~ |
09100-10151-000 |
from US $4.33 |
||
|
13
|
13
08316-20103-000
Nut
3AT; 1992-06-01~ |
08316-20103-000 |
— | ||
| replacement | |||||
|
13
|
13
08316-2010B-000 NUT3AT; 1992-06-01~ |
08316-2010B-000 |
from US $0.76 |
||
|
14
|
14
49610-82C10-000
ペダル,ブレーキ
3AT; 1992-06-01~ |
49610-82C10-000 |
— | ||
|
15
|
15
49751-86300-000
Pad, brake pedal
3AT; 1992-06-01~ |
49751-86300-000 |
— | ||
| replacement | |||||
|
15
|
15
49751-58J10-000 PAD,PEDAL3AT; 1992-06-01~ |
49751-58J10-000 |
from US $5.02 |
||
|
16
|
16
09180-10097-000 SPACER(10.1X13X88)3AT; 1992-06-01~ |
09180-10097-000 |
US $42 |
||
|
17
|
17
09448-31029-000 SPRING3AT; 1992-06-01~ |
09448-31029-000 |
US $38.60 |
||
