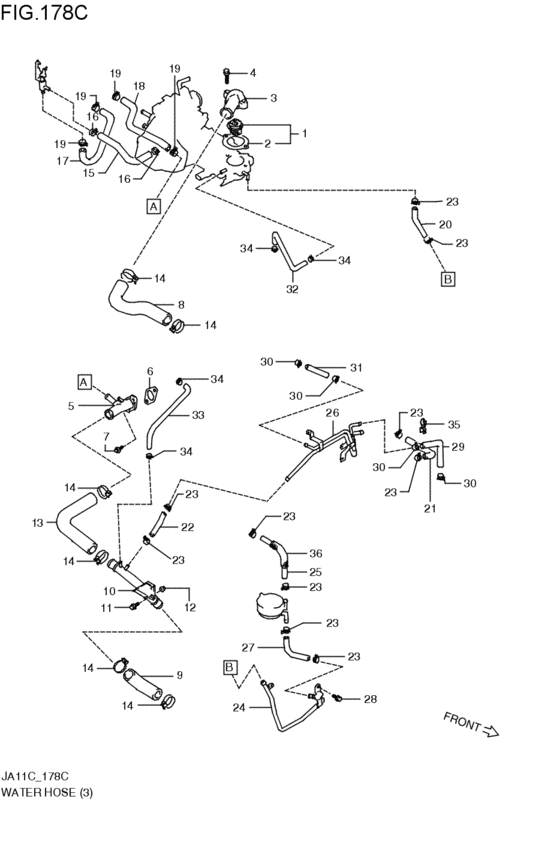

water hose (TYPE3:3AT; 1992-06-01~1993-11-01) Diagram Suzuki JIMNY
- Year
- 1992 - 1994
- Sales region
- Japan
- Engine
- 2V
- supercharge
- TURBO
- drive
- 4WD
- transmission
- 3AT
- grade
- CC
- type
- TYPE3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17600-85811-000 THERMOSTAT SET,WATER 82 DEGTYPE3:3AT; 1992-06-01~1993-11-01 |
17600-85811-000 |
from US $21.38 |
||
|
1
|
1
17600-85821-000 THERMOSTAT SET,WATER 88 DEGゴクカンレイチシヨウ; TYPE3:3AT; 1992-06-01~1993-11-01 |
17600-85821-000 |
from US $20.22 |
||
|
2
|
2
17569-82001-H17 GASKET,WTR THERMO CAPTYPE3:3AT; 1992-06-01~1993-11-01 |
17569-82001-H17 |
from US $1.82 |
||
|
3
|
3
17561-79110-000
キャップ,サーモスタット
TYPE3:3AT; 1992-06-01~1993-11-01 |
17561-79110-000 |
— | ||
|
4
|
4
01550-08303-000
Bolt
TYPE3:3AT; 1992-06-01~1993-11-01 |
01550-08303-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0830B-000 BoltTYPE3:3AT; 1992-06-01~1993-11-01 |
01550-0830B-000 |
from US $1.06 |
||
|
4
|
4
01550-0830A-000 BoltBolt, mount oil seal cover TYPE3:3AT; 1992-06-01~1993-11-01 |
01550-0830A-000 |
from US $1.06 |
||
|
5
|
5
17550-80701-000 PIPE,WATER INLETTYPE3:3AT; 1992-06-01~1993-11-01 |
17550-80701-000 |
US $163.20 |
||
|
6
|
6
17559-73000-H17
ガスケット,ウォータ,インレット
TYPE3:3AT; 1992-06-01~1993-11-01 |
17559-73000-H17 |
— | ||
| replacement | |||||
|
6
|
6
17559-73010-000 GASKET,WATER INLET PIPETYPE3:3AT; 1992-06-01~1993-11-01 |
17559-73010-000 |
from US $1.52 |
||
|
7
|
7
01550-06203-000
Bolt
TYPE3:3AT; 1992-06-01~1993-11-01 |
01550-06203-000 |
— | ||
| replacement | |||||
|
7
|
7
01550-0620B-000 BoltBolt, inspection cap TYPE3:3AT; 1992-06-01~1993-11-01 |
01550-0620B-000 |
from US $0.76 |
||
|
8
|
8
17841-80000-000 HOSE,RADIATOR INLETTYPE3:3AT; 1992-06-01~1993-11-01 |
17841-80000-000 |
from US $21.13 |
||
|
9
|
9
17851-83C00-000
ホース,ラジエータアウトレット,NO.1
TYPE3:3AT; 1992-06-01~1993-11-01 |
17851-83C00-000 |
— | ||
|
10
|
10
17860-83C10-000
パイプ,ラジエータ,アウトレット
TYPE3:3AT; 1992-06-01~1993-11-01 |
17860-83C10-000 |
— | ||
| replacement | |||||
|
10
|
10
17860-83C1V-000
パイプ,ラジエータ,アウトレット
TYPE3:3AT; 1992-06-01~1993-11-01 |
17860-83C1V-000 |
— | ||
|
11
|
11
01550-06123-000
Bolt
TYPE3:3AT; 1992-06-01~1993-11-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0612B-000 BoltBolt, clamp TYPE3:3AT; 1992-06-01~1993-11-01 |
01550-0612B-000 |
from US $0.76 |
||
|
11
|
11
01550-0612A-000 BoltTYPE3:3AT; 1992-06-01~1993-11-01 |
01550-0612A-000 |
from US $0.76 |
||
|
12
|
12
08316-10063-000
Nut
TYPE3:3AT; 1992-06-01~1993-11-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
12
|
12
08316-1006B-000 NUTTYPE3:3AT; 1992-06-01~1993-11-01 |
08316-1006B-000 |
from US $0.80 |
||
|
13
|
13
17852-83000-000 HOSE,RADIATOR OUTLET NO.2TYPE3:3AT; 1992-06-01~1993-11-01 |
17852-83000-000 |
from US $22.55 |
||
|
14
|
14
09400-36312-000 CLAMPTYPE3:3AT; 1992-06-01~1993-11-01 |
09400-36312-000 |
from US $1.67 |
||
|
15
|
15
17871-80700-000
ホース,インテークツーバルブ
TYPE3:3AT; 1992-06-01~1993-11-01 |
17871-80700-000 |
— | ||
| replacements | |||||
|
15
|
15
09401-18404-000 CLIPTYPE3:3AT; 1992-06-01~1993-11-01 |
09401-18404-000 |
from US $1.37 |
||
|
15
|
15
17800-71810-000
HOSE SET,HEATER
TYPE3:3AT; 1992-06-01~1993-11-01 |
17800-71810-000 |
— | ||
|
16
|
16
09400-22312-000 CLAMPTYPE3:3AT; 1992-06-01~1993-11-01 |
09400-22312-000 |
from US $1.82 |
||
|
17
|
17
17872-83000-000
ホース,バルブツーヒータ
TYPE3:3AT; 1992-06-01~1993-11-01 |
17872-83000-000 |
— | ||
| replacements | |||||
|
17
|
17
09401-18404-000 CLIPTYPE3:3AT; 1992-06-01~1993-11-01 |
09401-18404-000 |
from US $1.37 |
||
|
17
|
17
17800-71810-000
HOSE SET,HEATER
TYPE3:3AT; 1992-06-01~1993-11-01 |
17800-71810-000 |
— | ||
|
18
|
18
17873-80700-000
ホース,ヒータツーインレット
TYPE3:3AT; 1992-06-01~1993-11-01 |
17873-80700-000 |
— | ||
| replacements | |||||
|
18
|
18
09401-18404-000 CLIPTYPE3:3AT; 1992-06-01~1993-11-01 |
09401-18404-000 |
from US $1.37 |
||
|
18
|
18
17873-80701-000
ホース,ヒータ(ヒータツーインレット)
TYPE3:3AT; 1992-06-01~1993-11-01 |
17873-80701-000 |
— | ||
|
19
|
19
09401-20402-000
Clip, air hose no.3
TYPE3:3AT; 1992-06-01~1993-11-01 |
09401-20402-000 |
— | ||
| replacement | |||||
|
19
|
19
09401-20406-000 CLIPTYPE3:3AT; 1992-06-01~1993-11-01 |
09401-20406-000 |
US $1.98 |
||
|
20
|
20
09352-90141-600 HOSE(9X14X600)L:600>120; TYPE3:3AT; 1992-06-01~1993-11-01 |
09352-90141-600 |
US $26.40 |
||
|
21
|
21
09352-90141-600 HOSE(9X14X600)L:600>175; TYPE3:3AT; 1992-06-01~1993-11-01 |
09352-90141-600 |
US $26.40 |
||
|
22
|
22
09352-90141-600 HOSE(9X14X600)L:600>230; TYPE3:3AT; 1992-06-01~1993-11-01 |
09352-90141-600 |
US $26.40 |
||
|
23
|
23
09401-13413-000 ClipClip, air hose no.1 TYPE3:3AT; 1992-06-01~1993-11-01 |
09401-13413-000 |
US $2.15 |
||
| replacement | |||||
|
23
|
23
09401-13417-000 CLIPTYPE3:3AT; 1992-06-01~1993-11-01 |
09401-13417-000 |
from US $0.79 |
||
|
24
|
24
17950-83C10-000
パイプ,オイルクーラウォータ,インレット
TYPE3:3AT; 1992-06-01~1993-11-01 |
17950-83C10-000 |
— | ||
| replacement | |||||
|
24
|
24
17950-83C1V-000
パイプ,オイルクーラウォータ,インレット
TYPE3:3AT; 1992-06-01~1993-11-01 |
17950-83C1V-000 |
— | ||
|
25
|
25
09352-90141-600 HOSE(9X14X600)L:600>200; TYPE3:3AT; 1992-06-01~1993-11-01 |
09352-90141-600 |
US $26.40 |
||
|
26
|
26
17960-83C10-000
パイプ,ターボウォータ,アウトレット
TYPE3:3AT; 1992-06-01~1993-11-01 |
17960-83C10-000 |
— | ||
| replacement | |||||
|
26
|
26
17960-83C1V-000
パイプ,ターボウォータ,アウトレット
TYPE3:3AT; 1992-06-01~1993-11-01 |
17960-83C1V-000 |
— | ||
|
27
|
27
17959-83C10-000
ホース,オイルクーラウォータ,インレット
TYPE3:3AT; 1992-06-01~1993-11-01 |
17959-83C10-000 |
— | ||
| replacements | |||||
|
27
|
27
09401-14404-000 CLIPTYPE3:3AT; 1992-06-01~1993-11-01 |
09401-14404-000 |
from US $3.59 |
||
|
27
|
27
17972-78A50-000
ホース,パイプツーインレットケース
TYPE3:3AT; 1992-06-01~1993-11-01 |
17972-78A50-000 |
— | ||
|
28
|
28
01550-08123-000
Bolt
TYPE3:3AT; 1992-06-01~1993-11-01 |
01550-08123-000 |
— | ||
| replacements | |||||
|
28
|
28
01550-0812B-000 BoltPlug, drain TYPE3:3AT; 1992-06-01~1993-11-01 |
01550-0812B-000 |
from US $0.96 |
||
|
28
|
28
01550-0812A-000 BoltTYPE3:3AT; 1992-06-01~1993-11-01 |
01550-0812A-000 |
from US $0.91 |
||
|
29
|
29
09356-58127-600 HOSE(5.8X12.2X600)Hose (p/r to v/s) L:600>195; TYPE3:3AT; 1992-06-01~1993-11-01 |
09356-58127-600 |
from US $13.64 |
||
|
30
|
30
09401-11409-000
クリップ
TYPE3:3AT; 1992-06-01~1993-11-01 |
09401-11409-000 |
— | ||
| replacements | |||||
|
30
|
30
09401-11413-000 CLIPTYPE3:3AT; 1992-06-01~1993-11-01 |
09401-11413-000 |
from US $0.88 |
||
|
30
|
30
09401-10409-000 CLIPTYPE3:3AT; 1992-06-01~1993-11-01 |
09401-10409-000 |
from US $1.28 |
||
|
31
|
31
09356-58127-600 HOSE(5.8X12.2X600)Hose (p/r to v/s) L:600>280; TYPE3:3AT; 1992-06-01~1993-11-01 |
09356-58127-600 |
from US $13.64 |
||
|
32
|
32
17857-83C00-000
ホース,ISCウォータ,インレット
TYPE3:3AT; 1992-06-01~1993-11-01 |
17857-83C00-000 |
— | ||
|
33
|
33
09352-70121-600 HOSE(7X12.1X600)Hose (inmani to iac) L:600>250; TYPE3:3AT; 1992-06-01~1993-11-01 |
09352-70121-600 |
from US $5.93 |
||
|
34
|
34
09401-11407-000
CLIP
TYPE3:3AT; 1992-06-01~1993-11-01 |
09401-11407-000 |
— | ||
| replacement | |||||
|
34
|
34
09401-11415-000 CLIPTYPE3:3AT; 1992-06-01~1993-11-01 |
09401-11415-000 |
from US $1.06 |
||
|
35
|
35
09408-00050-000 CLAMPTYPE3:3AT; 1992-06-01~1993-11-01 |
09408-00050-000 |
from US $1.28 |
||
|
36
|
36
17858-86501-000 PROTECTOR,HOSETYPE3:3AT; 1992-12-01~1993-11-01 |
17858-86501-000 |
US $11.68 |
||
