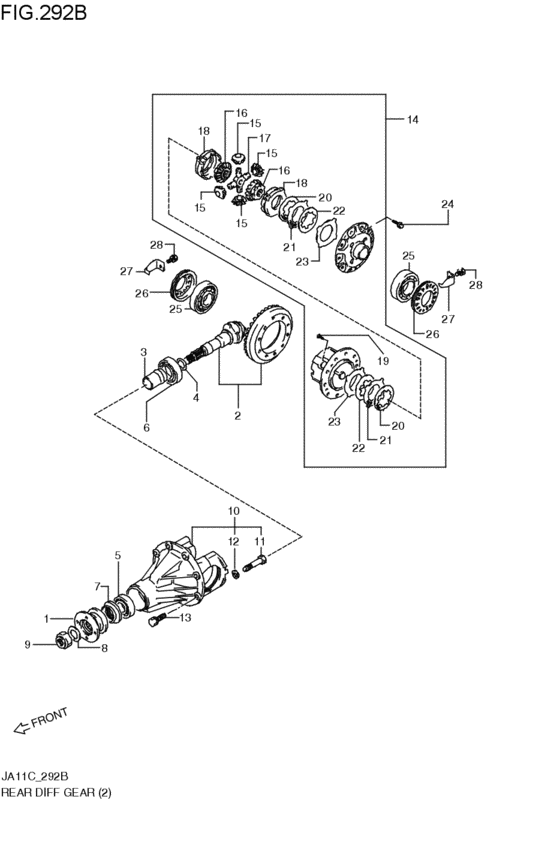

リヤデファレンシャルギヤ (C:SA; 1990-02-01~1995-01-01) Diagram Suzuki JIMNY
- Year
- 1991 - 1992
- Sales region
- Japan
- Engine
- 2V
- supercharge
- TURBO
- drive
- 4WD
- transmission
- 5MT
- grade
- SA
- type
- TYPE2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27110-83001-000
FLANGE,UNIVERSAL JOINT
C:SA; 1990-02-01~1991-03-01 |
27110-83001-000 |
— | ||
|
1
|
1
27110-83002-000 FLANGE,UNIVERSAL JOINTC:SA; 1991-03-01~1995-01-01 |
27110-83002-000 |
US $69.92 |
||
|
2
|
2
27300-55821-000
ベベルピニオン/ギヤセット
C:SA:5MT; 1990-02-01~1991-03-01 |
27300-55821-000 |
— | ||
| replacements | |||||
|
2
|
2
27110-83002-000 FLANGE,UNIVERSAL JOINTC:SA:5MT; 1990-02-01~1991-03-01 |
27110-83002-000 |
US $69.92 |
||
|
2
|
2
27300-55822-000
ベベルピニオン/ギヤセット
C:SA:5MT; 1990-02-01~1991-03-01 |
27300-55822-000 |
— | ||
|
2
|
2
27300-55822-000
ベベルピニオン/ギヤセット
C:SA:5MT; 1991-03-01~1995-01-01 |
27300-55822-000 |
— | ||
|
3
|
3
27315-60A01-000 SPACER,DRIVE BEVEL PINIONC:SA; 1990-02-01~1995-01-01 |
27315-60A01-000 |
from US $16.83 |
||
|
4
|
4
09181-35122-000 SHIM(35X42X1.24)C:SA; 1990-02-01~1995-01-01 |
09181-35122-000 |
from US $1.76 |
||
|
4
|
4
09181-35125-000 SHIM(35X42X1.3)C:SA; 1990-02-01~1995-01-01 |
09181-35125-000 |
from US $1.76 |
||
|
4
|
4
09181-35012-000 SHIM(35X42X1)C:SA; 1990-02-01~1995-01-01 |
09181-35012-000 |
from US $0.70 |
||
|
4
|
4
09181-35014-000
Shim 35x42x1.06
C:SA; 1990-02-01~1995-01-01 |
09181-35014-000 |
— | ||
|
4
|
4
09181-35101-000 SHIM(35X42X0.5)Shim (t:0.5) C:SA; 1990-02-01~1995-01-01 |
09181-35101-000 |
from US $1.49 |
||
|
4
|
4
09181-35117-000 SHIM(35X42X1.12)C:SA; 1990-02-01~1995-01-01 |
09181-35117-000 |
from US $1.44 |
||
|
4
|
4
09181-35119-000 SHIM(35X42X1.18)C:SA; 1990-02-01~1995-01-01 |
09181-35119-000 |
from US $1.82 |
||
|
5
|
5
09265-30010-000 BEARING(30X72X20.75)C:SA; 1990-02-01~1995-01-01 |
09265-30010-000 |
from US $45.60 |
||
|
6
|
6
09265-35002-000
ベアリング,35X80X22.75
C:SA; 1990-02-01~1995-01-01 |
09265-35002-000 |
— | ||
| replacement | |||||
|
6
|
6
09265-35011-000 BEARING(35X80X22.75)C:SA; 1990-02-01~1995-01-01 |
09265-35011-000 |
from US $40 |
||
|
7
|
7
09283-40027-000 SEAL,OIL(40x72x11x18)C:SA; 1990-02-01~1995-01-01 |
09283-40027-000 |
from US $7.54 |
||
|
8
|
8
09160-20056-000 WASHER(20.1X36X4)C:SA; 1990-02-01~1995-01-01 |
09160-20056-000 |
from US $1.40 |
||
|
9
|
9
27375-60A00-000 NUT,UNIVERSAL JOINTC:SA; 1990-02-01~1995-01-01 |
27375-60A00-000 |
from US $6.71 |
||
|
10
|
10
27450-60830-000 CARRIER ASSY,DIFFC:SA; 1990-02-01~1995-01-01 |
27450-60830-000 |
from US $183.92 |
||
|
11
|
11
09111-12010-000 BOLT(12X58)C:SA; 1990-02-01~1995-01-01 |
09111-12010-000 |
from US $2.43 |
||
|
12
|
12
08321-01123-000
Washer
C:SA; 1990-02-01~1995-01-01 |
08321-01123-000 |
— | ||
| replacement | |||||
|
12
|
12
08321-0112A-000 WASHER,LOCKC:SA; 1990-02-01~1995-01-01 |
08321-0112A-000 |
from US $0.76 |
||
|
13
|
13
01570-08253-000
Bolt, upper
C:SA; 1990-02-01~1995-01-01 |
01570-08253-000 |
— | ||
| replacements | |||||
|
13
|
13
01570-0825B-000 BoltC:SA; 1990-02-01~1995-01-01 |
01570-0825B-000 |
from US $1.28 |
||
|
13
|
13
01570-0825A-000 BoltC:SA; 1990-02-01~1995-01-01 |
01570-0825A-000 |
from US $1.06 |
||
|
14
|
14
27400-83810-000
LSD SET
C:SA; 1990-02-01~1995-01-01 |
27400-83810-000 |
— | ||
|
15
|
15
27331-60A40-000
ピニオン,ディファレンシャル
C:SA; 1990-02-01~1995-01-01 |
27331-60A40-000 |
— | ||
|
16
|
16
27341-83010-000
ギヤ,ディファレンシャル
C:SA; 1990-02-01~1995-01-01 |
27341-83010-000 |
— | ||
|
17
|
17
27351-60A40-000
スパイダ,ディファレンシャルピニオン
C:SA; 1990-02-01~1995-01-01 |
27351-60A40-000 |
— | ||
|
18
|
18
27356-83010-000
リング,LSDプレッシャ
C:SA; 1990-02-01~1995-01-01 |
27356-83010-000 |
— | ||
|
19
|
19
02122-05083-000
SCREW
C:SA; 1990-02-01~1995-01-01 |
02122-05083-000 |
— | ||
| replacement | |||||
|
19
|
19
02122-0508B-000 New Genuine PartC:SA; 1990-02-01~1995-01-01 |
02122-0508B-000 |
US $14.70 |
||
|
20
|
20
27432-60A40-170
Disk,lsd friction t1.7
C:SA; 1990-02-01~1995-01-01 |
27432-60A40-170 |
— | ||
|
20
|
20
27432-60A40-180
DISC,LSD FRICTION T1.8
C:SA; 1990-02-01~1995-01-01 |
27432-60A40-180 |
— | ||
|
21
|
21
27433-60A40-170
PLATE,LSD FRICTION T1.7
C:SA; 1990-02-01~1995-01-01 |
27433-60A40-170 |
— | ||
|
21
|
21
27433-60A40-180
PLATE,LSD FRICTION T1.8
C:SA; 1990-02-01~1995-01-01 |
27433-60A40-180 |
— | ||
|
22
|
22
27435-60A40-000 DISC,LSD SPRINGC:SA; 1990-02-01~1995-01-01 |
27435-60A40-000 |
US $48.21 |
||
|
23
|
23
27434-60A40-000
PLATE,LSD SPRING
C:SA; 1990-02-01~1995-01-01 |
27434-60A40-000 |
— | ||
|
24
|
24
09103-10028-000
Bolt, oil pump drive gear
C:SA; 1990-02-01~1995-01-01 |
09103-10028-000 |
— | ||
| replacement | |||||
|
24
|
24
09103-10290-000 BOLT(10X20)Bolt, oil pump drive gear C:SA; 1990-02-01~1995-01-01 |
09103-10290-000 |
from US $1.76 |
||
|
25
|
25
09265-45002-000 BEARING(45.2X80X19.84)C:SA; 1990-02-01~1995-01-01 |
09265-45002-000 |
from US $45.60 |
||
|
26
|
26
27461-83000-000 ADJUSTER,DIFF SIDE BEARINGC:SA; 1990-02-01~1995-01-01 |
27461-83000-000 |
from US $7.52 |
||
|
27
|
27
27462-63202-000 PLATE,BEARING LOCKC:SA; 1990-02-01~1995-01-01 |
27462-63202-000 |
from US $2.74 |
||
|
28
|
28
01570-08123-000
Bolt
C:SA; 1990-02-01~1995-01-01 |
01570-08123-000 |
— | ||
| replacement | |||||
|
28
|
28
01570-0812A-000 BoltC:SA; 1990-02-01~1995-01-01 |
01570-0812A-000 |
US $14.40 |
||
