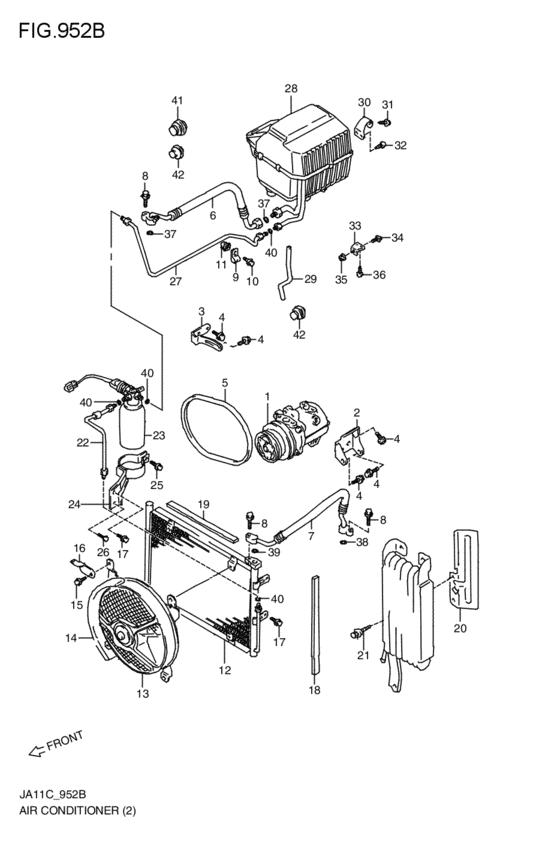

air-conditioner (エアコンツキ; TYPE3:(SA,SC); 1992-06-01~1994-03-01) Diagram Suzuki JIMNY
- Year
- 1992 - 1994
- Sales region
- Japan
- Engine
- 2V
- supercharge
- TURBO
- drive
- 4WD
- transmission
- 5MT
- grade
- SC
- type
- TYPE3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
95200-55C11-000
コンプレッサ/マグネットクラッチ
TYPE3:(SA,SC); 1992-06-01~1994-03-01 |
95200-55C11-000 |
— | ||
|
2
|
2
95113-55C10-000
ブラケット,コンプレッサパワーステアリング
TYPE3:(SA,SC); 1992-06-01~1994-03-01 |
95113-55C10-000 |
— | ||
|
3
|
3
95112-55C10-000
ステー,コンプレッサアジャスト
TYPE3:(SA,SC); 1992-06-01~1994-03-01 |
95112-55C10-000 |
— | ||
|
4
|
4
01550-08203-000
Bolt
TYPE3:(SA,SC); 1992-06-01~1994-03-01 |
01550-08203-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0820B-000 BoltTYPE3:(SA,SC); 1992-06-01~1994-03-01 |
01550-0820B-000 |
from US $0.91 |
||
|
4
|
4
01550-0820A-000 BoltBolt, funnel bracket TYPE3:(SA,SC); 1992-06-01~1994-03-01 |
01550-0820A-000 |
from US $1.12 |
||
|
5
|
5
95141-55C10-000 V-BELT,4PK 855TYPE3:(SA,SC); 1992-06-01~1994-03-01 |
95141-55C10-000 |
US $38 |
||
|
6
|
6
95710-55C02-000
ホース,コンプレッササクション
TYPE3:(SA,SC); 1992-06-01~1994-03-01 |
95710-55C02-000 |
— | ||
|
7
|
7
95720-55CV0-000
ホース,ディスチャージ
TYPE3:(SA,SC); 1992-06-01~1994-03-01 |
95720-55CV0-000 |
— | ||
|
8
|
8
01550-08203-000
Bolt
TYPE3:(SA,SC); 1992-06-01~1994-03-01 |
01550-08203-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0820B-000 BoltTYPE3:(SA,SC); 1992-06-01~1994-03-01 |
01550-0820B-000 |
from US $0.91 |
||
|
8
|
8
01550-0820A-000 BoltBolt, funnel bracket TYPE3:(SA,SC); 1992-06-01~1994-03-01 |
01550-0820A-000 |
from US $1.12 |
||
|
9
|
9
09403-06405-000 CLAMPTYPE3:(SA,SC); 1992-06-01~1994-03-01 |
09403-06405-000 |
US $11.80 |
||
|
10
|
10
09132-06010-000 SCREW(6X16)TYPE3:(SA,SC); 1992-06-01~1994-03-01 |
09132-06010-000 |
from US $1.13 |
||
|
11
|
11
09148-05018-000 NUTTYPE3:(SA,SC); 1992-06-01~1994-03-01 |
09148-05018-000 |
from US $0.68 |
||
|
12
|
12
95310-55C10-000
コンデンサ
TYPE3:(SA,SC); 1992-06-01~1994-03-01 |
95310-55C10-000 |
— | ||
|
13
|
13
95320-55X51-000 FAN ASSY,CONDTYPE3:(SA,SC); 1992-06-01~1994-03-01 |
95320-55X51-000 |
from US $241.05 |
||
|
14
|
14
95321-55C00-000
パッキング,コンデンサファン
TYPE3:(SA,SC); 1992-06-01~1994-03-01 |
95321-55C00-000 |
— | ||
|
15
|
15
01550-06103-000
Bolt, front
TYPE3:(SA,SC); 1992-06-01~1994-03-01 |
01550-06103-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0610B-000 BoltBolt TYPE3:(SA,SC); 1992-06-01~1994-03-01 |
01550-0610B-000 |
from US $0.96 |
||
|
15
|
15
01550-0610A-000 BoltTYPE3:(SA,SC); 1992-06-01~1994-03-01 |
01550-0610A-000 |
from US $0.96 |
||
|
16
|
16
95587-73A00-000
BRACKET,CONN
TYPE3:(SA,SC); 1992-06-01~1994-03-01 |
95587-73A00-000 |
— | ||
|
17
|
17
01550-06163-000
Bolt
TYPE3:(SA,SC); 1992-06-01~1994-03-01 |
01550-06163-000 |
— | ||
| replacements | |||||
|
17
|
17
01550-0616B-000 BoltTYPE3:(SA,SC); 1992-06-01~1994-03-01 |
01550-0616B-000 |
from US $0.76 |
||
|
17
|
17
01550-0616A-000 BoltTYPE3:(SA,SC); 1992-06-01~1994-03-01 |
01550-0616A-000 |
from US $0.76 |
||
|
22
|
22
95732-55C10-000
パイプ,コンデンサ,アウトレット
TYPE3:(SA,SC); 1992-06-01~1994-03-01 |
95732-55C10-000 |
— | ||
|
23
|
23
95330-50B40-000
レシーバドライヤ
TYPE3:(SA,SC); 1992-06-01~1994-03-01 |
95330-50B40-000 |
— | ||
|
24
|
24
95930-55C00-000
ブラケット,レシーバドライヤ
TYPE3:(SA,SC); 1992-06-01~1994-03-01 |
95930-55C00-000 |
— | ||
|
25
|
25
01550-06203-000
Bolt
TYPE3:(SA,SC); 1992-06-01~1994-03-01 |
01550-06203-000 |
— | ||
| replacement | |||||
|
25
|
25
01550-0620B-000 BoltBolt, inspection cap TYPE3:(SA,SC); 1992-06-01~1994-03-01 |
01550-0620B-000 |
from US $0.76 |
||
|
26
|
26
01500-06163-000
Bolt
TYPE3:(SA,SC); 1992-06-01~1994-03-01 |
01500-06163-000 |
— | ||
| replacement | |||||
|
26
|
26
01500-0616A-000 BoltTYPE3:(SA,SC); 1992-06-01~1994-03-01 |
01500-0616A-000 |
from US $0.76 |
||
|
27
|
27
95734-55C00-000
パイプ,レシーバドライヤ,アウトレット
TYPE3:(SA,SC); 1992-06-01~1994-03-01 |
95734-55C00-000 |
— | ||
|
28
|
28
95400-73A01-000
ユニット,エバポレータ
TYPE3:(SA,SC); 1992-06-01~1994-03-01 |
95400-73A01-000 |
— | ||
|
29
|
29
95421-73A00-000
ホース,ドレーン
TYPE3:(SA,SC); 1992-06-01~1994-03-01 |
95421-73A00-000 |
— | ||
|
30
|
30
95961-73A00-000
ブラケット,エバポレータ
TYPE3:(SA,SC); 1992-06-01~1994-03-01 |
95961-73A00-000 |
— | ||
|
31
|
31
09132-06010-000 SCREW(6X16)TYPE3:(SA,SC); 1992-06-01~1994-03-01 |
09132-06010-000 |
from US $1.13 |
||
|
32
|
32
03141-06123-000
Screw 6x12
TYPE3:(SA,SC); 1992-06-01~1994-03-01 |
03141-06123-000 |
— | ||
| replacement | |||||
|
32
|
32
03141-0612A-000 SCREWTYPE3:(SA,SC); 1992-06-01~1994-03-01 |
03141-0612A-000 |
US $0.76 |
||
|
33
|
33
95962-73A01-000
ブラケット,エバポレータ,ロア
TYPE3:(SA,SC); 1992-06-01~1994-03-01 |
95962-73A01-000 |
— | ||
|
34
|
34
95915-73A00-000
ボルト,エバポレータ
TYPE3:(SA,SC); 1992-06-01~1994-03-01 |
95915-73A00-000 |
— | ||
|
35
|
35
08361-15083-000
Nut
TYPE3:(SA,SC); 1992-06-01~1994-03-01 |
08361-15083-000 |
— | ||
| replacement | |||||
|
35
|
35
08361-1508A-000 NUTTYPE3:(SA,SC); 1992-06-01~1994-03-01 |
08361-1508A-000 |
from US $3.20 |
||
|
36
|
36
03541-06163-000
スクリュ
TYPE3:(SA,SC); 1992-06-01~1994-03-01 |
03541-06163-000 |
— | ||
| replacement | |||||
|
36
|
36
03541-0616A-000 SCREWTYPE3:(SA,SC); 1992-06-01~1994-03-01 |
03541-0616A-000 |
from US $0.64 |
||
|
37
|
37
95897-60E00-000 O-RINGTYPE3:(SA,SC); 1992-06-01~1994-03-01 |
95897-60E00-000 |
US $30.50 |
||
|
38
|
38
95894-60E00-000 O-RINGTYPE3:(SA,SC); 1992-06-01~1994-03-01 |
95894-60E00-000 |
US $1.28 |
||
|
39
|
39
95895-50G00-000 O-RING,D:2.4 ID:10.8TYPE3:(SA,SC); 1992-06-01~1994-03-01 |
95895-50G00-000 |
from US $1.28 |
||
|
40
|
40
95891-60E00-000 O-RINGTYPE3:(SA,SC); 1992-06-01~1994-03-01 |
95891-60E00-000 |
US $0.70 |
||
|
41
|
41
95761-73A00-000 GROMMET,CAR AIR CON,30TYPE3:(SA,SC); 1992-06-01~1994-03-01 |
95761-73A00-000 |
from US $3.84 |
||
|
42
|
42
74814-82000-000 GROMMET,CAR AIR CON,NO.2TYPE3:(SA,SC); 1992-06-01~1994-03-01 |
74814-82000-000 |
US $6.08 |
||
