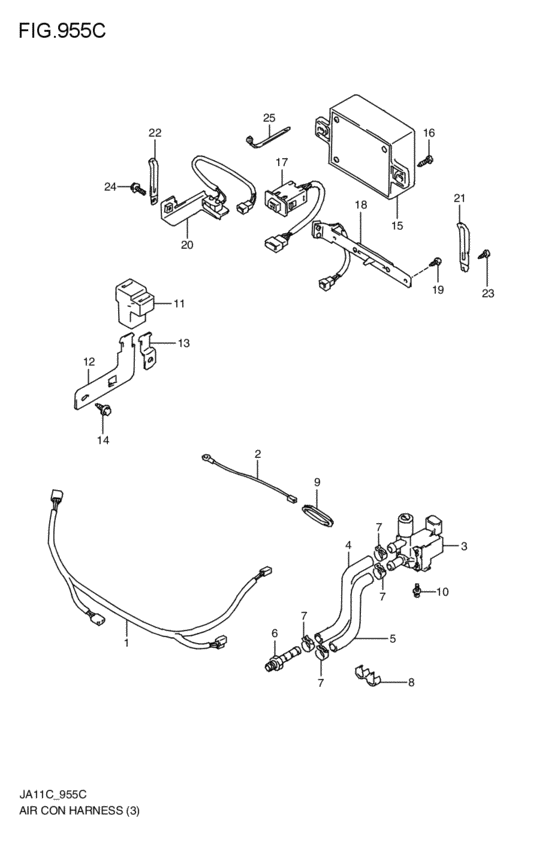

air-conditioner harness (エアコンツキ; TYPE3:SD,TYPE4:(SE,SA),TYPE5:SF; 1992-06-01~1995-10-01) Diagram Suzuki JIMNY
- Year
- 1992 - 1994
- Sales region
- Japan
- Engine
- 2V
- supercharge
- TURBO
- drive
- 4WD
- transmission
- 5MT
- grade
- SD
- type
- TYPE3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
95583-82C60-000
ハーネス,エアコンジョイント
TYPE3:SD,TYPE4:(SE,SA),TYPE5:SF; 1992-06-01~1995-10-01 |
95583-82C60-000 |
— | ||
|
2
|
2
95585-86400-000 LINK,FUSIBLETYPE3:SD,TYPE4:(SE,SA),TYPE5:SF; 1992-06-01~1995-10-01 |
95585-86400-000 |
US $10.30 |
||
|
3
|
3
95161-60D00-000 VSV,IDLE UPTYPE3:SD,TYPE4:(SE,SA),TYPE5:SF; 1992-06-01~1995-10-01 |
95161-60D00-000 |
US $68.40 |
||
|
4
|
4
09355-70125-600 HOSE(7X12X600)Hose, fuel (pump to separator) L:600>200; TYPE3:SD,TYPE4:(SE,SA),TYPE5:SF; 1992-06-01~1995-10-01 |
09355-70125-600 |
from US $6.54 |
||
| replacement | |||||
|
4
|
4
44421-12FR0-000 HOSEL:600>200; TYPE3:SD,TYPE4:(SE,SA),TYPE5:SF; 1992-06-01~1995-10-01 |
44421-12FR0-000 |
from US $17.46 |
||
|
5
|
5
09355-70125-600 HOSE(7X12X600)Hose, fuel (pump to separator) L:600>220; TYPE3:SD,TYPE4:(SE,SA),TYPE5:SF; 1992-06-01~1995-10-01 |
09355-70125-600 |
from US $6.54 |
||
| replacement | |||||
|
5
|
5
44421-12FR0-000 HOSEL:600>220; TYPE3:SD,TYPE4:(SE,SA),TYPE5:SF; 1992-06-01~1995-10-01 |
44421-12FR0-000 |
from US $17.46 |
||
|
6
|
6
09362-09010-000
UNION
TYPE3:SD,TYPE4:(SE,SA),TYPE5:SF; 1992-06-01~1995-10-01 |
09362-09010-000 |
— | ||
|
7
|
7
09401-12404-000 CLIPClip TYPE3:SD,TYPE4:(SE,SA),TYPE5:SF; 1992-06-01~1995-10-01 |
09401-12404-000 |
from US $1.10 |
||
|
8
|
8
09408-00043-000 CLAMPHolder, fuse case TYPE3:SD,TYPE4:(SE,SA),TYPE5:SF; 1992-06-01~1995-10-01 |
09408-00043-000 |
US $9.60 |
||
|
9
|
9
09308-19001-000 GROMMETTYPE3:SD,TYPE4:(SE,SA),TYPE5:SF; 1992-06-01~1995-10-01 |
09308-19001-000 |
US $23.20 |
||
|
10
|
10
02112-06083-000
Screw
TYPE3:SD,TYPE4:(SE,SA),TYPE5:SF; 1992-06-01~1995-10-01 |
02112-06083-000 |
— | ||
| replacement | |||||
|
10
|
10
02112-0608A-000 SCREWTYPE3:SD,TYPE4:(SE,SA),TYPE5:SF; 1992-06-01~1995-10-01 |
02112-0608A-000 |
from US $0.91 |
||
|
11
|
11
95576-73A00-000 RELAY ASSY,CLG FANTYPE3:SD,TYPE4:(SE,SA),TYPE5:SF; 1992-06-01~1995-10-01 |
95576-73A00-000 |
from US $21.60 |
||
|
12
|
12
95573-73A00-000
ブラケット,ファンリレー
TYPE3:SD,TYPE4:(SE,SA),TYPE5:SF; 1992-06-01~1995-10-01 |
95573-73A00-000 |
— | ||
|
13
|
13
95981-73A00-000 BRACKET,FUSETYPE3:SD,TYPE4:(SE,SA),TYPE5:SF; 1992-06-01~1995-10-01 |
95981-73A00-000 |
from US $3.56 |
||
|
14
|
14
03141-06123-000
Screw 6x12
TYPE3:SD,TYPE4:(SE,SA),TYPE5:SF; 1992-06-01~1995-10-01 |
03141-06123-000 |
— | ||
| replacement | |||||
|
14
|
14
03141-0612A-000 SCREWTYPE3:SD,TYPE4:(SE,SA),TYPE5:SF; 1992-06-01~1995-10-01 |
03141-0612A-000 |
US $0.76 |
||
|
15
|
15
95575-73A02-000
コントローラアッシ
TYPE3:SD,TYPE4:(SE,SA),TYPE5:SF; 1992-06-01~1995-10-01 |
95575-73A02-000 |
— | ||
|
16
|
16
03541-05163-000
Screw
TYPE3:SD,TYPE4:(SE,SA),TYPE5:SF; 1992-06-01~1995-10-01 |
03541-05163-000 |
— | ||
| replacement | |||||
|
16
|
16
03541-0516A-000 SCREWTYPE3:SD,TYPE4:(SE,SA),TYPE5:SF; 1992-06-01~1995-10-01 |
03541-0516A-000 |
from US $0.76 |
||
|
17
|
17
95571-73A00-000
スイッチ,エアコン
TYPE3:SD,TYPE4:(SE,SA),TYPE5:SF; 1992-06-01~1995-10-01 |
95571-73A00-000 |
— | ||
|
18
|
18
95579-73A02-000
ボリュームアッシ
TYPE3:SD,TYPE4:(SE,SA),TYPE5:SF; 1992-06-01~1995-10-01 |
95579-73A02-000 |
— | ||
|
19
|
19
03141-04123-000
Screw
TYPE3:SD,TYPE4:(SE,SA),TYPE5:SF; 1992-06-01~1995-10-01 |
03141-04123-000 |
— | ||
| replacement | |||||
|
19
|
19
03142-0412B-000 SCREWTYPE3:SD,TYPE4:(SE,SA),TYPE5:SF; 1992-06-01~1995-10-01 |
03142-0412B-000 |
from US $0.80 |
||
|
20
|
20
95572-55C00-000
スイッチアッシ,アクセルオフ
TYPE3:SD,TYPE4:(SE,SA),TYPE5:SF; 1992-06-01~1995-10-01 |
95572-55C00-000 |
— | ||
|
21
|
21
09404-06206-000
CLAMP(L:45)
TYPE3:SD,TYPE4:(SE,SA),TYPE5:SF; 1992-06-01~1995-10-01 |
09404-06206-000 |
— | ||
| replacements | |||||
|
21
|
21
09404-06432-000
CLAMP(L:65)
TYPE3:SD,TYPE4:(SE,SA),TYPE5:SF; 1992-06-01~1995-10-01 |
09404-06432-000 |
— | ||
|
21
|
21
09404-06039-000 Clamp(L:65)TYPE3:SD,TYPE4:(SE,SA),TYPE5:SF; 1992-06-01~1995-10-01 |
09404-06039-000 |
from US $1.82 |
||
|
21
|
21
09404-06031-000 Clamp,rsvr Tank Ovfl HoseTYPE3:SD,TYPE4:(SE,SA),TYPE5:SF; 1992-06-01~1995-10-01 |
09404-06031-000 |
from US $1.37 |
||
|
22
|
22
09404-06208-000
Clamp
TYPE3:SD,TYPE4:(SE,SA),TYPE5:SF; 1992-06-01~1995-10-01 |
09404-06208-000 |
— | ||
| replacements | |||||
|
22
|
22
09404-06434-000
CLAMP(L:80 T:1.0)
TYPE3:SD,TYPE4:(SE,SA),TYPE5:SF; 1992-06-01~1995-10-01 |
09404-06434-000 |
— | ||
|
22
|
22
09404-06033-000 ClampTYPE3:SD,TYPE4:(SE,SA),TYPE5:SF; 1992-06-01~1995-10-01 |
09404-06033-000 |
from US $1.43 |
||
|
22
|
22
09404-06036-000 Clamp(L:80)TYPE3:SD,TYPE4:(SE,SA),TYPE5:SF; 1992-06-01~1995-10-01 |
09404-06036-000 |
from US $1.82 |
||
|
23
|
23
03141-06123-000
Screw 6x12
TYPE3:SD,TYPE4:(SE,SA),TYPE5:SF; 1992-06-01~1995-10-01 |
03141-06123-000 |
— | ||
| replacement | |||||
|
23
|
23
03141-0612A-000 SCREWTYPE3:SD,TYPE4:(SE,SA),TYPE5:SF; 1992-06-01~1995-10-01 |
03141-0612A-000 |
US $0.76 |
||
|
24
|
24
01550-06123-000
Bolt
TYPE3:SD,TYPE4:(SE,SA),TYPE5:SF; 1992-06-01~1995-10-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
24
|
24
01550-0612B-000 BoltBolt, clamp TYPE3:SD,TYPE4:(SE,SA),TYPE5:SF; 1992-06-01~1995-10-01 |
01550-0612B-000 |
from US $0.76 |
||
|
24
|
24
01550-0612A-000 BoltTYPE3:SD,TYPE4:(SE,SA),TYPE5:SF; 1992-06-01~1995-10-01 |
01550-0612A-000 |
from US $0.76 |
||
|
25
|
25
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap TYPE3:SD,TYPE4:(SE,SA),TYPE5:SF; 1992-06-01~1995-10-01 |
09407-14403-000 |
from US $1.08 |
||
