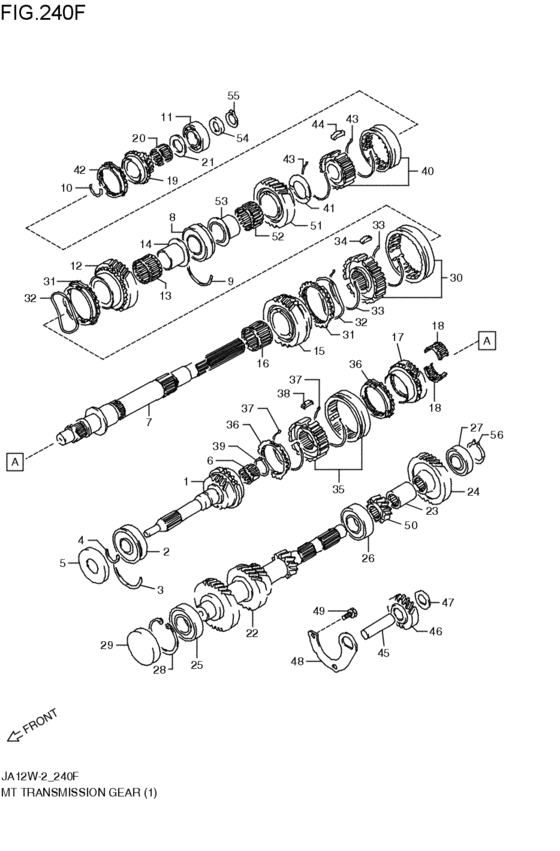

mt - transmission gear (5MT:(C,V); 1997-05-01~1998-10-01) Diagram Suzuki JIMNY
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- F6A
- transmission
- 5MT
- grade
- CC
- body
- C
- air bag
- NAB
- abs
- NABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24110-77D00-000
SHAFT,T/M INPUT
5MT:(C,V); 1997-05-01~1998-10-01 |
24110-77D00-000 |
— | ||
|
2
|
2
09262-20126-000 BEARING(20X49X16)5MT:(C,V); 1997-05-01~1998-10-01 |
09262-20126-000 |
US $96 |
||
|
3
|
3
24152-70D00-000 C-RING,INPUT SHAFT BEARING5MT:(C,V); 1997-05-01~1998-10-01 |
24152-70D00-000 |
US $2.08 |
||
|
4
|
4
09380-20011-000 RING,SNAP5MT:(C,V); 1997-05-01~1998-10-01 |
09380-20011-000 |
from US $1.52 |
||
|
5
|
5
24151-70D00-000 SEAL,INPUT SHAFT OIL5MT:(C,V); 1997-05-01~1998-10-01 |
24151-70D00-000 |
US $18.24 |
||
|
6
|
6
09263-17043-000 BEARING(17.5X22X15.8)5MT:(C,V); 1997-05-01~1998-10-01 |
09263-17043-000 |
from US $4.79 |
||
|
7
|
7
24121-77D00-000
Shaft,t/m main
5MT:(C,V); 1997-05-01~1998-10-01 |
24121-77D00-000 |
— | ||
|
8
|
8
09262-25094-000
ベアリング,25X52X15
5MT:(C,V); 1997-05-01~1998-10-01 |
09262-25094-000 |
— | ||
| replacement | |||||
|
8
|
8
09262-25129-000 BEARING(25X52X15)5MT:(C,V); 1997-05-01~1998-10-01 |
09262-25129-000 |
US $45.60 |
||
|
9
|
9
09390-52003-000 C RING5MT:(C,V); 1997-05-01~1998-10-01 |
09390-52003-000 |
from US $0.50 |
||
|
10
|
10
09380-22010-000 CIRCLIPCHKK; 5MT:(C,V); 1997-05-01~1998-10-01 |
09380-22010-000 |
from US $1.67 |
||
|
11
|
11
08133-63047-000 BEARING5MT:(C,V); 1997-05-01~1998-10-01 |
08133-63047-000 |
from US $11.25 |
||
|
12
|
12
24211-70D01-000
GEAR,MAIN SFT LOW
5MT:(C,V); 1997-05-01~1998-10-01 |
24211-70D01-000 |
— | ||
|
13
|
13
09263-30031-000 BEARING(30X35X26.8)5MT:(C,V); 1997-05-01~1998-10-01 |
09263-30031-000 |
from US $8.64 |
||
|
14
|
14
24214-70D00-000 BUSH,MAIN SHAFT LOW GEAR5MT:(C,V); 1997-05-01~1998-10-01 |
24214-70D00-000 |
US $21.34 |
||
|
15
|
15
24221-70D03-000
GEAR,MAIN SFT 2ND
5MT:(C,V); 1997-05-01~1998-10-01 |
24221-70D03-000 |
— | ||
|
16
|
16
09263-30030-000 BEARING(30X35X24.8)5MT:(C,V); 1997-05-01~1998-10-01 |
09263-30030-000 |
from US $10.18 |
||
|
17
|
17
24231-70D01-000 GEAR,MAIN SFT 3RD5MT:(C,V); 1997-05-01~1998-10-01 |
24231-70D01-000 |
US $124.75 |
||
|
18
|
18
24239-80F00-000 BEARING,MAIN SHAFT 3RD GEAR5MT:(C,V); 1997-05-01~1998-10-01 |
24239-80F00-000 |
US $48 |
||
|
19
|
19
24250-70D80-000
ギヤ,メインシャフト,フィフス
5MT:(C,V); 1997-05-01~1998-10-01 |
24250-70D80-000 |
— | ||
|
20
|
20
09263-22059-000 BEARING(22X26X22.8)5MT:(C,V); 1997-05-01~1998-10-01 |
09263-22059-000 |
US $26.40 |
||
|
21
|
21
24254-70D50-000 WASHER,MAIN SFT 5TH GR5MT:(C,V); 1997-05-01~1998-10-01 |
24254-70D50-000 |
US $28.13 |
||
|
22
|
22
24130-77D00-000
Shaft,t/m counter
5MT:(C,V); 1997-05-01~1998-10-01 |
24130-77D00-000 |
— | ||
|
23
|
23
24133-85052-000
SPACER,COUNTERSHAFT
5MT:(C,V); 1997-05-01~1998-10-01 |
24133-85052-000 |
— | ||
|
24
|
24
24351-70D80-000
ギヤ,カウンタシャフト,フィフス
5MT:(C,V); 1997-05-01~1998-10-01 |
24351-70D80-000 |
— | ||
|
25
|
25
09262-20133-000 BEARING(20X47X14)5MT:(C,V); 1997-05-01~1998-10-01 |
09262-20133-000 |
US $58.40 |
||
|
26
|
26
08133-62047-000 BEARINGBearing, rh 5MT:(C,V); 1997-05-01~1998-10-01 |
08133-62047-000 |
from US $15.84 |
||
|
27
|
27
09262-17032-000 BEARING(17X47X14)5MT:(C,V); 1997-05-01~1998-10-01 |
09262-17032-000 |
US $43.20 |
||
|
28
|
28
08331-41478-000
Circlip
5MT:(C,V); 1997-05-01~1998-10-01 |
08331-41478-000 |
— | ||
| replacement | |||||
|
28
|
28
08331-41479-000 CIRCLIP5MT:(C,V); 1997-05-01~1998-10-01 |
08331-41479-000 |
from US $2.56 |
||
|
29
|
29
09241-47002-000
PLUG
5MT:(C,V); 1997-05-01~1998-10-01 |
09241-47002-000 |
— | ||
| replacement | |||||
|
29
|
29
09241-47009-000 PLUG5MT:(C,V); 1997-05-01~1998-10-01 |
09241-47009-000 |
US $4.10 |
||
|
30
|
30
24400-73D00-000
HUB ASSY,LOW SPEED SYNC
5MT:(C,V); 1997-05-01~1998-10-01 |
24400-73D00-000 |
— | ||
|
31
|
31
24431-85020-000 RING,LOW SPEED SYNC5MT:(C,V); 1997-05-01~1998-10-01 |
24431-85020-000 |
from US $37.40 |
||
|
32
|
32
24436-84200-000 SPRING,SYNC RING LOWCHKK; 5MT:(C,V); 1997-05-01~1998-10-01 |
24436-84200-000 |
US $13.28 |
||
|
33
|
33
09388-00020-000 SPRINGCHKK; 5MT:(C,V); 1997-05-01~1998-10-01 |
09388-00020-000 |
US $1.82 |
||
|
34
|
34
24472-60B00-000 KEY,SYNCHRONIZERKey, low speed sync 5MT:(C,V); 1997-05-01~1998-10-01 |
24472-60B00-000 |
from US $1.92 |
||
|
35
|
35
24400-73850-000 HUB ASSY,HIGH SPEED SYNC5MT:(C,V); 1997-05-01~1998-10-01 |
24400-73850-000 |
US $200.56 |
||
|
36
|
36
24432-73D00-000 RING,HIGH SPEED SYNC5MT:(C,V); 1997-05-01~1998-10-01 |
24432-73D00-000 |
US $68 |
||
|
37
|
37
24442-60B00-000 SPRING,HIGH SPEED SYNCCHKK; 5MT:(C,V); 1997-05-01~1998-10-01 |
24442-60B00-000 |
from US $1.87 |
||
|
38
|
38
24472-60B00-000 KEY,SYNCHRONIZERKey, low speed sync 5MT:(C,V); 1997-05-01~1998-10-01 |
24472-60B00-000 |
from US $1.92 |
||
|
39
|
39
09380-22013-000 RING,SNAP5MT:(C,V); 1997-05-01~1998-10-01 |
09380-22013-000 |
US $23.20 |
||
|
40
|
40
24400-77811-000 HUB SET,5TH SPEED5MT:(C,V); 1997-05-01~1998-10-01 |
24400-77811-000 |
US $464 |
||
|
41
|
41
24417-85460-000
WASHER,5TH SYNC HUB
5MT:(C,V); 1997-05-01~1998-10-01 |
24417-85460-000 |
— | ||
|
42
|
42
24432-73D00-000 RING,HIGH SPEED SYNC5MT:(C,V); 1997-05-01~1998-10-01 |
24432-73D00-000 |
US $68 |
||
|
43
|
43
24443-80F00-000 SPRING,5TH SYNC5MT:(C,V); 1997-05-01~1998-10-01 |
24443-80F00-000 |
US $1.60 |
||
|
44
|
44
24473-70D00-000
KEY,5TH SYNC SHIFTING
5MT:(C,V); 1997-05-01~1998-10-01 |
24473-70D00-000 |
— | ||
| replacement | |||||
|
44
|
44
24473-70D10-000 KEY,SYNC5MT:(C,V); 1997-05-01~1998-10-01 |
24473-70D10-000 |
from US $1.92 |
||
|
45
|
45
24551-85051-000 SHAFT,REVERSE IDLE GEAR5MT:(C,V); 1997-05-01~1998-10-01 |
24551-85051-000 |
US $32 |
||
|
46
|
46
24560-85052-000
GEAR,REV IDLE
5MT:(C,V); 1997-05-01~1998-10-01 |
24560-85052-000 |
— | ||
|
47
|
47
09166-14012-000 WASHER5MT:(C,V); 1997-05-01~1998-10-01 |
09166-14012-000 |
US $1.12 |
||
|
48
|
48
25482-85051-000 PLATE,REV GEAR SHAFT STOP5MT:(C,V); 1997-05-01~1998-10-01 |
25482-85051-000 |
US $5.96 |
||
|
49
|
49
01570-06163-000
Bolt
5MT:(C,V); 1997-05-01~1998-10-01 |
01570-06163-000 |
— | ||
| replacements | |||||
|
49
|
49
01570-0616B-000 Bolt5MT:(C,V); 1997-05-01~1998-10-01 |
01570-0616B-000 |
from US $0.80 |
||
|
49
|
49
01570-0616A-000 Bolt5MT:(C,V); 1997-05-01~1998-10-01 |
01570-0616A-000 |
from US $0.96 |
||
|
50
|
50
24671-85051-000
GEAR,CTSHFT REV
5MT:(C,V); 1997-05-01~1998-10-01 |
24671-85051-000 |
— | ||
|
51
|
51
24681-85050-000 GEAR,MAIN SFT REV5MT:(C,V); 1997-05-01~1998-10-01 |
24681-85050-000 |
US $207.92 |
||
|
52
|
52
09263-30031-000 BEARING(30X35X26.8)5MT:(C,V); 1997-05-01~1998-10-01 |
09263-30031-000 |
from US $8.64 |
||
|
53
|
53
24564-63C00-000
BUSH,MAIN SHAFT REV GEAR
5MT:(C,V); 1997-05-01~1998-10-01 |
24564-63C00-000 |
— | ||
|
54
|
54
26122-70D50-000
SPACER,SPEEDOMETER GEAR
5MT:(C,V); 1997-05-01~1998-10-01 |
26122-70D50-000 |
— | ||
|
55
|
55
09380-19004-000 RING,SNAP5MT:(C,V); 1997-05-01~1998-10-01 |
09380-19004-000 |
from US $1.92 |
||
|
56
|
56
09380-17008-000 CIRCLIP5MT:(C,V); 1997-05-01~1998-10-01 |
09380-17008-000 |
from US $0.86 |
||
