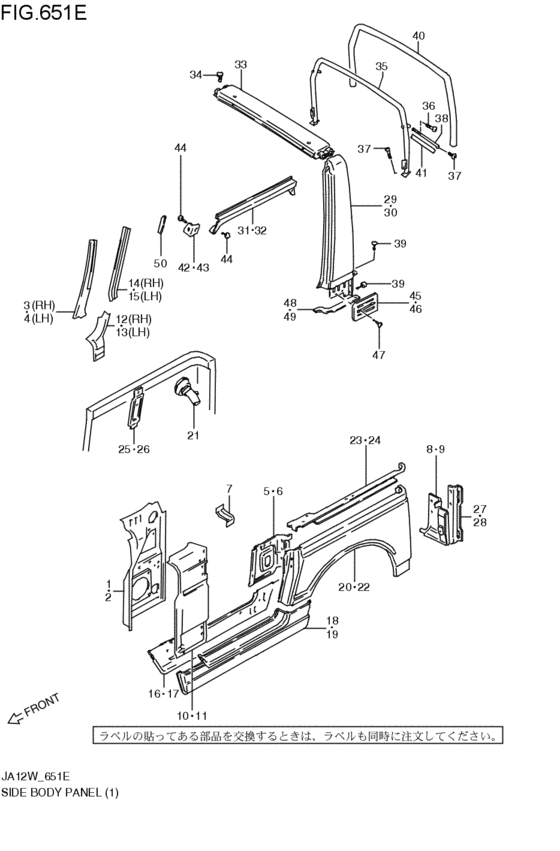

side body panel (C; 1995-11-01~1997-04-01) Diagram Suzuki JIMNY
- Year
- 1995 - 1997
- Sales region
- Japan
- Engine
- F6A
- transmission
- 5MT
- grade
- CC
- air bag
- NAB
- abs
- NABS
- x01
- C
- x02
- G
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
63110-82CA0-000
PANEL,FR PILLAR INNER LWR,R
C; 1995-11-01~1997-04-01 |
63110-82CA0-000 |
— | ||
|
2
|
2
63510-82CA0-000
PANEL,FR PILLAR INNER LWR,L
C; 1995-11-01~1997-04-01 |
63510-82CA0-000 |
— | ||
|
3
|
3
63121-50CA0-000 PANEL,FR PILLAR INNER UPR,RC; 1995-11-01~1997-04-01 |
63121-50CA0-000 |
US $56.67 |
||
|
4
|
4
63521-50CA0-000 PANEL,FR PILLAR INNER UPR,LC; 1995-11-01~1997-04-01 |
63521-50CA0-000 |
US $56.67 |
||
|
5
|
5
63230-80041-000
PANEL,CENTER PILLAR INNER RH
C; 1995-11-01~1997-04-01 |
63230-80041-000 |
— | ||
|
6
|
6
63630-80041-000
PANEL,CENTER PILLAR INNER LH
C; 1995-11-01~1997-04-01 |
63630-80041-000 |
— | ||
|
7
|
7
63233-80001-000 HOLDER,CENTER PIPEC; 1995-11-01~1997-04-01 |
63233-80001-000 |
US $3.53 |
||
|
8
|
8
63310-80001-000 PANEL,RR PILLAR INNER,RC; 1995-11-01~1997-04-01 |
63310-80001-000 |
US $93.60 |
||
|
9
|
9
63710-80001-000
PANEL,RR PILLAR INNER,L
C; 1995-11-01~1997-04-01 |
63710-80001-000 |
— | ||
|
10
|
10
64110-50CA0-000
Panel,side body front,r
C; 1995-11-01~1997-04-01 |
64110-50CA0-000 |
— | ||
|
11
|
11
64510-50CA0-000 PANEL,SIDE BODY FRONT,LC; 1995-11-01~1997-04-01 |
64510-50CA0-000 |
US $74.70 |
||
|
12
|
12
64117-82CA0-000
Reinf,side body front,r
C; 1995-11-01~1997-04-01 |
64117-82CA0-000 |
— | ||
|
13
|
13
64517-82CA0-000
Reinf,side body front,l
C; 1995-11-01~1997-04-01 |
64517-82CA0-000 |
— | ||
|
14
|
14
64131-50CA0-000
FRAME,FR WINDOW SIDE,R
C; 1995-11-01~1997-04-01 |
64131-50CA0-000 |
— | ||
|
15
|
15
64531-50CA0-000 FRAME,FR WINDOW SIDE,LC; 1995-11-01~1997-04-01 |
64531-50CA0-000 |
US $54.46 |
||
|
16
|
16
61490-80003-000 PANEL,SILL SIDE INNER,RC; 1995-11-01~1997-04-01 |
61490-80003-000 |
US $135.20 |
||
|
17
|
17
61590-80003-000 PANEL,SILL SIDE INNER,LC; 1995-11-01~1997-04-01 |
61590-80003-000 |
US $135.20 |
||
|
18
|
18
64151-73A20-000
パネル,シルサイドアウタ,ライト
C; 1995-11-01~1997-04-01 |
64151-73A20-000 |
— | ||
|
19
|
19
64551-73A20-000
PANEL,SILL SIDE OUTER,L
C; 1995-11-01~1997-04-01 |
64551-73A20-000 |
— | ||
|
20
|
20
64200-82CV1-000
パネルアッシ,サイドボディリヤ,ライト
C; 1995-11-01~1997-04-01 |
64200-82CV1-000 |
— | ||
|
21
|
21
89200-82C30-000
ボックス,フューエル,インレット
C; 1995-11-01~1997-04-01 |
89200-82C30-000 |
— | ||
| replacement | |||||
|
21
|
21
89200-82C31-000 BOX,FUEL INLETC; 1995-11-01~1997-04-01 |
89200-82C31-000 |
US $47.10 |
||
|
22
|
22
64600-82CV1-000
パネルアッシ,サイドボディリヤ,レフト
C; 1995-11-01~1997-04-01 |
64600-82CV1-000 |
— | ||
|
23
|
23
64230-80492-000
PANEL,BODY SIDE UPPER,R
C; 1995-11-01~1997-04-01 |
64230-80492-000 |
— | ||
|
24
|
24
64630-80492-000
PANEL,BODY SIDE UPPER,L
C; 1995-11-01~1997-04-01 |
64630-80492-000 |
— | ||
|
25
|
25
64235-80001-000 REINFORCEMENT UPPER,RC; 1995-11-01~1997-04-01 |
64235-80001-000 |
US $11.68 |
||
|
26
|
26
64635-80001-000 REINFORCEMENT,UPPER,LC; 1995-11-01~1997-04-01 |
64635-80001-000 |
US $10.40 |
||
|
27
|
27
64311-80001-000 PANEL,RR PILLAR OUTER,RC; 1995-11-01~1997-04-01 |
64311-80001-000 |
US $21.28 |
||
|
28
|
28
64710-80001-000 PANEL,RR PILLAR OUTER,LC; 1995-11-01~1997-04-01 |
64710-80001-000 |
US $138.32 |
||
|
29
|
29
65710-82CA0-000 PANEL,SOFT TOP ATCH,RC; 1995-11-01~1997-04-01 |
65710-82CA0-000 |
US $288 |
||
|
30
|
30
65750-82CA0-000 PANEL,SOFT TOP ATCH,LC; 1995-11-01~1997-04-01 |
65750-82CA0-000 |
US $288 |
||
|
31
|
31
65770-83012-000
RAIL,ROOF SIDE FR,R
C; 1995-11-01~1997-04-01 |
65770-83012-000 |
— | ||
|
32
|
32
65780-83012-000
RAIL,ROOF SIDE FR,L
C; 1995-11-01~1997-04-01 |
65780-83012-000 |
— | ||
|
33
|
33
65730-80016-000 PANEL,SOFT TOP ATCH CTRC; 1995-11-01~1997-04-01 |
65730-80016-000 |
US $294.88 |
||
|
34
|
34
09125-06060-000 SCREW(6X12)C; 1995-11-01~1997-04-01 |
09125-06060-000 |
from US $1.06 |
||
|
35
|
35
78600-82CA0-000
ロールバーアッシ
C; 1995-11-01~1997-04-01 |
78600-82CA0-000 |
— | ||
|
36
|
36
09125-08012-000
スクリュ,8X35
C; 1995-11-01~1997-04-01 |
09125-08012-000 |
— | ||
| replacement | |||||
|
36
|
36
09125-08012-XC0
SCREW(5X35)
C; 1995-11-01~1997-04-01 |
09125-08012-XC0 |
— | ||
|
37
|
37
09125-08015-000
スクリュ,8X20
C; 1995-11-01~1997-04-01 |
09125-08015-000 |
— | ||
| replacement | |||||
|
37
|
37
09125-08015-XC0 SCREW(8X20)C; 1995-11-01~1997-04-01 |
09125-08015-XC0 |
US $1.60 |
||
|
38
|
38
78612-83002-000
Support,roll bar rear,r
C; 1995-11-01~1997-04-01 |
78612-83002-000 |
— | ||
|
39
|
39
09125-08015-000
スクリュ,8X20
C; 1995-11-01~1997-04-01 |
09125-08015-000 |
— | ||
| replacement | |||||
|
39
|
39
09125-08015-XC0 SCREW(8X20)C; 1995-11-01~1997-04-01 |
09125-08015-XC0 |
US $1.60 |
||
|
40
|
40
78638-83001-000
PAD,ROLL BAR CENTER NO.1
C; 1995-11-01~1997-04-01 |
78638-83001-000 |
— | ||
|
41
|
41
78639-83002-000
PAD,ROLL BAR CENTER NO.2
C; 1995-11-01~1997-04-01 |
78639-83002-000 |
— | ||
|
42
|
42
65775-80010-000 STAY,ROOF SIDE FR RHC; 1995-11-01~1997-04-01 |
65775-80010-000 |
US $50.16 |
||
|
43
|
43
65785-80010-000 STAY,ROOF SIDE FR LHC; 1995-11-01~1997-04-01 |
65785-80010-000 |
US $50.16 |
||
|
44
|
44
09125-06073-000 SCREW(6X16)C; 1995-11-01~1997-04-01 |
09125-06073-000 |
from US $1.12 |
||
|
45
|
45
77311-80000-000 GARNISH,EXTENSION,RC; 1995-11-01~1997-04-01 |
77311-80000-000 |
US $14.88 |
||
|
46
|
46
77312-80000-000 GARNISH,EXTENSION,LC; 1995-11-01~1997-04-01 |
77312-80000-000 |
US $14.88 |
||
|
47
|
47
09409-05304-5PK CLIP(BLACK)ブラック; C; 1995-11-01~1997-04-01 |
09409-05304-5PK |
US $1.92 |
||
|
48
|
48
78621-80001-000 PACKING,EXT CTR PLR,RC; 1995-11-01~1997-04-01 |
78621-80001-000 |
US $11.36 |
||
|
49
|
49
78661-80001-000 PACKING,EXT CTR PLR,LC; 1995-11-01~1997-04-01 |
78661-80001-000 |
US $11.36 |
||
|
50
|
50
77313-80001-000 SEAL,ROOF SIDE RAILC; 1995-11-01~1997-04-01 |
77313-80001-000 |
US $1.60 |
||
