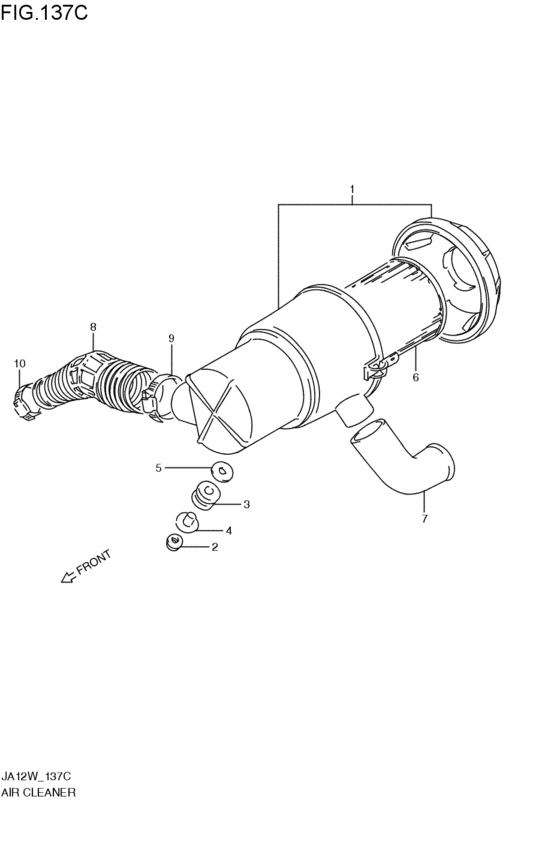

air cleaner (1995-11-01~1997-04-01) Diagram Suzuki JIMNY
- Year
- 1995 - 1997
- Sales region
- Japan
- Engine
- F6A
- transmission
- 3AT
- grade
- HA
- air bag
- NAB
- abs
- NABS
- x01
- V
- x02
- B
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13701-83C00-000
ケースアッシ,エアクリーナ
1995-11-01~1997-04-01 |
13701-83C00-000 |
— | ||
|
2
|
2
08316-10083-000
Nut
1995-11-01~1997-04-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
2
|
2
08316-1008B-000 NUT1995-11-01~1997-04-01 |
08316-1008B-000 |
from US $0.76 |
||
|
3
|
3
13813-83C00-000
クッション
1995-11-01~1997-04-01 |
13813-83C00-000 |
— | ||
|
4
|
4
13814-83C00-000
スペーサ
1995-11-01~1997-04-01 |
13814-83C00-000 |
— | ||
| replacement | |||||
|
4
|
4
13814-83C0V-000
New Genuine Part
1995-11-01~1997-04-01 |
13814-83C0V-000 |
— | ||
|
5
|
5
09160-08002-000
Washer
1995-11-01~1997-01-01 |
09160-08002-000 |
— | ||
| replacement | |||||
|
5
|
5
09160-08135-000 WASHER(8.5X28X1.6)Washer, exhaust support 1995-11-01~1997-01-01 |
09160-08135-000 |
from US $0.72 |
||
|
5
|
5
09160-08135-000 WASHER(8.5X28X1.6)Washer, exhaust support 1997-01-01~1997-04-01 |
09160-08135-000 |
from US $0.72 |
||
|
6
|
6
13780-79210-000 ELEMENT,AIR CLEANER1995-11-01~1997-04-01 |
13780-79210-000 |
from US $23.36 |
||
|
7
|
7
13871-80701-000
Hose, air cleaner, inlet
1995-11-01~1997-04-01 |
13871-80701-000 |
— | ||
|
8
|
8
13881-83C00-000
ホース,エアクリーナ,アウトレット
1995-11-01~1997-04-01 |
13881-83C00-000 |
— | ||
|
9
|
9
09402-69511-000 CLAMPClamp (thb) 1995-11-01~1997-04-01 |
09402-69511-000 |
from US $8.71 |
||
|
10
|
10
09402-50511-000 CLAMP1995-11-01~1997-04-01 |
09402-50511-000 |
from US $7.52 |
||
