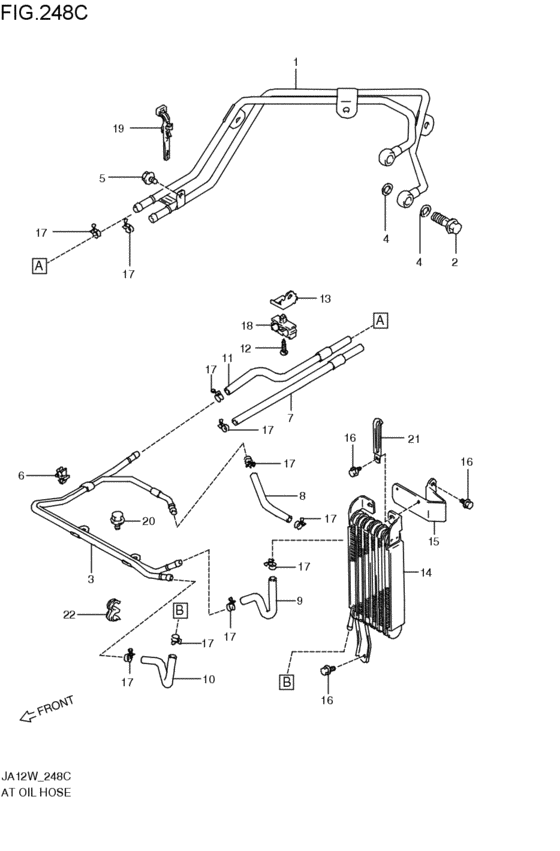

at - oil hose (3AT; 1995-11-01~1997-04-01) Diagram Suzuki JIMNY
- Year
- 1995 - 1997
- Sales region
- Japan
- Engine
- F6A
- transmission
- 3AT
- grade
- HA
- air bag
- NAB
- abs
- NABS
- x01
- V
- x02
- B
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22910-80F30-000
パイプ,オイル,NO.1
3AT; 1995-11-01~1997-04-01 |
22910-80F30-000 |
— | ||
|
2
|
2
09360-10032-000
Bolt, union (10x24)
3AT; 1995-11-01~1997-04-01 |
09360-10032-000 |
— | ||
| replacement | |||||
|
2
|
2
09360-10055-000 UNIONBolt, oil pipe union 3AT; 1995-11-01~1997-04-01 |
09360-10055-000 |
from US $2.45 |
||
|
3
|
3
22920-83C01-000
パイプ,オイル,NO.2
3AT; 1995-11-01~1997-04-01 |
22920-83C01-000 |
— | ||
|
4
|
4
09168-10028-000 GASKET(10X15X1)3AT; 1995-11-01~1997-04-01 |
09168-10028-000 |
US $12.90 |
||
|
5
|
5
01550-06103-000
Bolt, front
3AT; 1995-11-01~1997-04-01 |
01550-06103-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0610B-000 BoltBolt 3AT; 1995-11-01~1997-04-01 |
01550-0610B-000 |
from US $0.96 |
||
|
5
|
5
01550-0610A-000 Bolt3AT; 1995-11-01~1997-04-01 |
01550-0610A-000 |
from US $0.96 |
||
|
6
|
6
09403-08326-000 CLAMP3AT; 1995-11-01~1997-04-01 |
09403-08326-000 |
from US $1.26 |
||
|
7
|
7
24891-56X51-000 HOSE SETL:600>520; 3AT; 1995-11-01~1997-04-01 |
24891-56X51-000 |
US $57.60 |
||
|
8
|
8
24891-56X50-000
ホースセット
L:300>120; 3AT; 1995-11-01~1997-04-01 |
24891-56X50-000 |
— | ||
| replacement | |||||
|
8
|
8
24891-56X51-000 HOSE SETL:300>120; 3AT; 1995-11-01~1997-04-01 |
24891-56X51-000 |
US $57.60 |
||
|
9
|
9
24891-56X50-000
ホースセット
L:300>285; 3AT; 1995-11-01~1997-04-01 |
24891-56X50-000 |
— | ||
| replacement | |||||
|
9
|
9
24891-56X51-000 HOSE SETL:300>285; 3AT; 1995-11-01~1997-04-01 |
24891-56X51-000 |
US $57.60 |
||
|
10
|
10
24891-56X50-000
ホースセット
L:300>120; 3AT; 1995-11-01~1997-04-01 |
24891-56X50-000 |
— | ||
| replacement | |||||
|
10
|
10
24891-56X51-000 HOSE SETL:300>120; 3AT; 1995-11-01~1997-04-01 |
24891-56X51-000 |
US $57.60 |
||
|
11
|
11
24891-56X51-000 HOSE SETL:600>440; 3AT; 1995-11-01~1997-04-01 |
24891-56X51-000 |
US $57.60 |
||
|
12
|
12
26599-85500-000 BOLT,SOLENOID3AT; 1995-11-01~1997-04-01 |
26599-85500-000 |
US $1.77 |
||
|
13
|
13
22936-83C01-000
ブラケット,オイルホースNO.3クランプ
3AT; 1995-11-01~1997-04-01 |
22936-83C01-000 |
— | ||
|
14
|
14
24921-83C00-000
クーラ,ATオイル
3AT; 1995-11-01~1997-04-01 |
24921-83C00-000 |
— | ||
|
15
|
15
24922-83C00-000
ブラケット,オイルクーラ
3AT; 1995-11-01~1997-04-01 |
24922-83C00-000 |
— | ||
|
16
|
16
01550-06123-000
Bolt
3AT; 1995-11-01~1997-04-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0612B-000 BoltBolt, clamp 3AT; 1995-11-01~1997-04-01 |
01550-0612B-000 |
from US $0.76 |
||
|
16
|
16
01550-0612A-000 Bolt3AT; 1995-11-01~1997-04-01 |
01550-0612A-000 |
from US $0.76 |
||
|
17
|
17
09401-13415-000
Сlamp
3AT; 1995-11-01~1997-04-01 |
09401-13415-000 |
— | ||
| replacement | |||||
|
17
|
17
09401-13419-000 CLIP3AT; 1995-11-01~1997-04-01 |
09401-13419-000 |
from US $1.76 |
||
|
18
|
18
09403-14309-000 CLAMP3AT; 1995-11-01~1997-04-01 |
09403-14309-000 |
US $4.32 |
||
|
19
|
19
09407-12404-000 CLAMP(L:140)3AT; 1995-11-01~1997-04-01 |
09407-12404-000 |
from US $1.33 |
||
|
20
|
20
01550-06103-000
Bolt, front
3AT; 1995-11-01~1997-04-01 |
01550-06103-000 |
— | ||
| replacements | |||||
|
20
|
20
01550-0610B-000 BoltBolt 3AT; 1995-11-01~1997-04-01 |
01550-0610B-000 |
from US $0.96 |
||
|
20
|
20
01550-0610A-000 Bolt3AT; 1995-11-01~1997-04-01 |
01550-0610A-000 |
from US $0.96 |
||
|
21
|
21
09404-06429-000 CLAMP(L:45)Clamp, coil lead wire 3AT; 1995-11-01~1997-04-01 |
09404-06429-000 |
from US $1.52 |
||
|
22
|
22
09408-00155-000 CLAMP3AT; 1995-11-01~1997-04-01 |
09408-00155-000 |
from US $3.33 |
||
