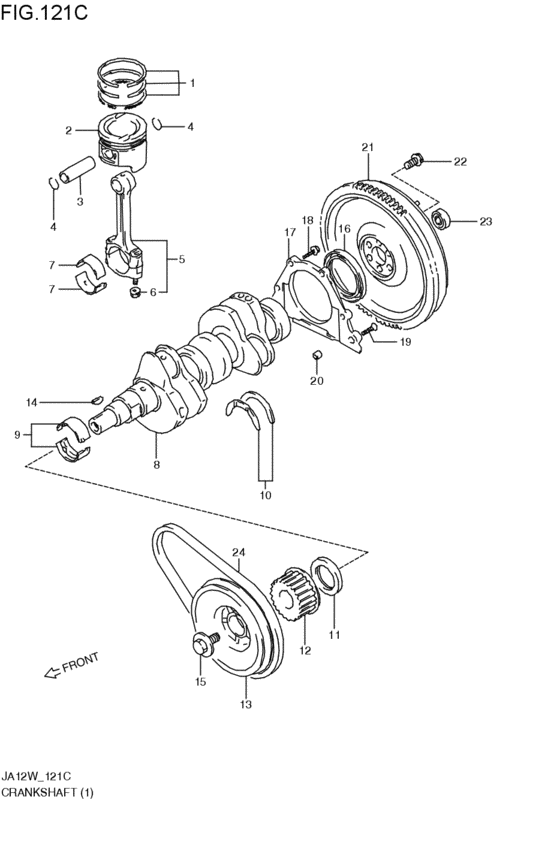

crankshaft (F6A; 1995-11-01~1997-04-01) Diagram Suzuki JIMNY
- Year
- 1995 - 1997
- Sales region
- Japan
- Engine
- F6A
- transmission
- 3AT
- grade
- HA
- air bag
- NAB
- abs
- NABS
- x01
- V
- x02
- B
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12140-50E50-000 RING SET,PISTONF6A; 1995-11-01~1997-04-01 |
12140-50E50-000 |
US $152 |
||
|
2
|
2
12111-60D51-0B0 PISTON,STDF6A; 1995-11-01~1997-04-01 |
12111-60D51-0B0 |
US $75.07 |
||
|
3
|
3
12151-54A50-000 PIN,PISTONF6A; 1995-11-01~1997-04-01 |
12151-54A50-000 |
from US $7.92 |
||
|
4
|
4
09381-18005-000 CIRCLIPNHK; F6A; 1995-11-01~1997-04-01 |
09381-18005-000 |
from US $1.12 |
||
|
5
|
5
12160-60D50-000
コネクチングロッドアッシ
F6A; 1995-11-01~1997-04-01 |
12160-60D50-000 |
— | ||
| replacement | |||||
|
5
|
5
12160-60D51-000 CONNROD ASSYF6A; 1995-11-01~1997-04-01 |
12160-60D51-000 |
US $214.32 |
||
|
6
|
6
09159-08033-000 NUTF6A; 1995-11-01~1997-04-01 |
09159-08033-000 |
from US $0.97 |
||
|
7
|
7
12181-81051-0A0 BEARING,CONNROD STDF6A; 1995-11-01~1997-04-01 |
12181-81051-0A0 |
from US $8.01 |
||
|
8
|
8
12221-60D50-000
クランクシャフト
F6A; 1995-11-01~1997-04-01 |
12221-60D50-000 |
— | ||
| replacement | |||||
|
8
|
8
12221-60H50-000
CRANKSHAFT
F6A; 1995-11-01~1997-04-01 |
12221-60H50-000 |
— | ||
|
9
|
9
12300-61810-0A0
ベアリングセット,クランクシャフト
F6A; 1995-11-01~1997-04-01 |
12300-61810-0A0 |
— | ||
| replacement | |||||
|
9
|
9
12300-61810-0B0 BEARING SET,CRANKSHAFTF6A; 1995-11-01~1997-04-01 |
12300-61810-0B0 |
US $270.40 |
||
|
10
|
10
12300-82820-000
Bearing set, crank thrust (STD)
F6A; 1995-11-01~1997-04-01 |
12300-82820-000 |
— | ||
| replacement | |||||
|
10
|
10
12300-60840-000 BEARING SET,CRANK THRUST (STD)F6A; 1995-11-01~1997-04-01 |
12300-60840-000 |
from US $10.10 |
||
|
10
|
10
12300-82820-012
Bearing set, crank thrust (OS:0.125)
F6A; 1995-11-01~1997-04-01 |
12300-82820-012 |
— | ||
| replacement | |||||
|
10
|
10
12300-60840-012 BEARING SET,CRANK THRUST (OS:0.125)F6A; 1995-11-01~1997-04-01 |
12300-60840-012 |
from US $12.24 |
||
|
11
|
11
09283-32040-000
オイルシール,32X47X6
F6A; 1995-11-01~1997-04-01 |
09283-32040-000 |
— | ||
| replacement | |||||
|
11
|
11
09283-32042-000 SEAL,OIL(32X47X6)F6A; 1995-11-01~1997-04-01 |
09283-32042-000 |
from US $8.51 |
||
|
12
|
12
12631-61D01-000
PULLEY,CRANK TIMING BELT
F6A; 1995-11-01~1997-04-01 |
12631-61D01-000 |
— | ||
|
13
|
13
12611-83C50-000 PULLEY,CRANKSHAFTF6A; 1995-11-01~1997-04-01 |
12611-83C50-000 |
US $180.80 |
||
|
14
|
14
08341-31059-000 KEYKey F6A; 1995-11-01~1997-04-01 |
08341-31059-000 |
from US $1.60 |
||
|
15
|
15
12619-60B00-000 BOLT,CRANK PULLEYF6A; 1995-11-01~1997-04-01 |
12619-60B00-000 |
from US $5.13 |
||
|
16
|
16
09283-60005-000
OIL SEAL
F6A; 1995-11-01~1997-04-01 |
09283-60005-000 |
— | ||
| replacement | |||||
|
16
|
16
09283-60009-000 SEAL,OIL(60X80X8)F6A; 1995-11-01~1997-04-01 |
09283-60009-000 |
from US $16.40 |
||
|
17
|
17
11341-70B01-000 HOUSING,OIL SEALF6A; 1995-11-01~1997-04-01 |
11341-70B01-000 |
from US $18.29 |
||
|
18
|
18
01550-06203-000
Bolt
F6A; 1995-11-01~1997-04-01 |
01550-06203-000 |
— | ||
| replacement | |||||
|
18
|
18
01550-0620B-000 BoltBolt, inspection cap F6A; 1995-11-01~1997-04-01 |
01550-0620B-000 |
from US $0.76 |
||
|
19
|
19
02122-06253-000
Screw (6x25)
F6A; 1995-11-01~1997-04-01 |
02122-06253-000 |
— | ||
| replacement | |||||
|
19
|
19
02122-0625A-000 SCREWF6A; 1995-11-01~1997-04-01 |
02122-0625A-000 |
from US $0.80 |
||
|
20
|
20
04211-09109-000 PINKnock pin F6A; 1995-11-01~1997-04-01 |
04211-09109-000 |
from US $0.88 |
||
|
24
|
24
17521-71520-000 BELT,WATER PUMP L:758FM-30; F6A; 1995-11-01~1997-04-01 |
17521-71520-000 |
from US $9.42 |
||
