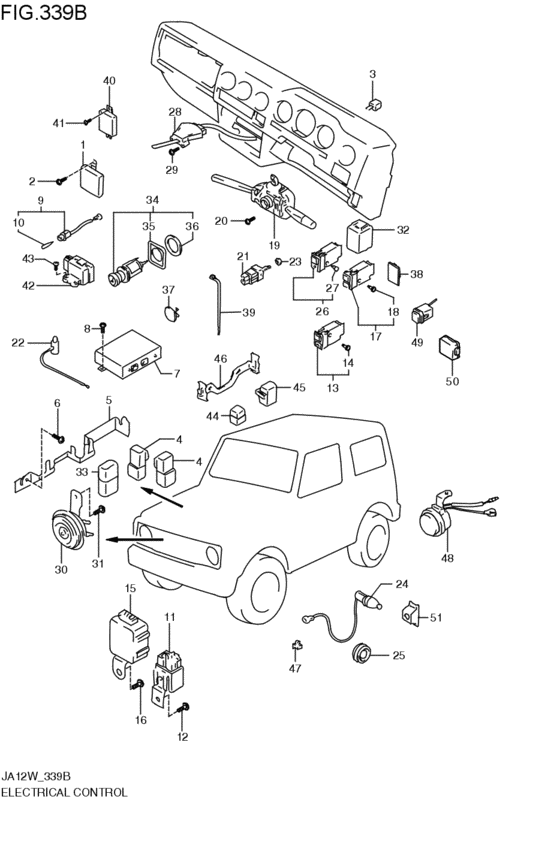

electrical control (ボデイ エレクトリカル; 1995-11-01~1997-04-01) Diagram Suzuki JIMNY
- Year
- 1995 - 1997
- Sales region
- Japan
- Engine
- F6A
- transmission
- 3AT
- grade
- HA
- air bag
- NAB
- abs
- NABS
- x01
- V
- x02
- B
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33920-82CG0-000
コントローラアッシ,インジェクション/AT/エアコン
ユウセイ; 3AT:HA; 1995-11-01~1997-04-01 |
33920-82CG0-000 |
— | ||
|
2
|
2
02162-06123-000
Bolt (6x12)
1995-11-01~1997-04-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
2
|
2
02162-0612B-000 SCREWBolt 1995-11-01~1997-04-01 |
02162-0612B-000 |
from US $0.80 |
||
|
2
|
2
02162-0612A-000 SCREWBolt, bracket 1995-11-01~1997-04-01 |
02162-0612A-000 |
from US $0.80 |
||
|
3
|
3
33926-80710-000 RESISTOR,CO ADJUSTマ-クL3; CC,HA; 1995-11-01~1997-04-01 |
33926-80710-000 |
US $8.10 |
||
|
3
|
3
33927-80710-000 RESISTOR,CO ADJUSTマ-クL2; CC,HA; 1995-11-01~1997-04-01 |
33927-80710-000 |
US $8.10 |
||
|
3
|
3
33928-80710-000 RESISTOR,CO ADJUSTマ-クL1; CC,HA; 1995-11-01~1997-04-01 |
33928-80710-000 |
US $8.10 |
||
|
3
|
3
33929-80710-000
RESISTOR,CO ADJUST
マ-クR1; CC,HA; 1995-11-01~1997-04-01 |
33929-80710-000 |
— | ||
|
3
|
3
33930-80710-000 RESISTOR,CO ADJUSTマ-クR2; CC,HA; 1995-11-01~1997-04-01 |
33930-80710-000 |
US $8.10 |
||
|
3
|
3
33931-80710-000 RESISTOR,CO ADJUSTマ-クR3; CC,HA; 1995-11-01~1997-04-01 |
33931-80710-000 |
US $8.10 |
||
|
3
|
3
33932-80710-000
RESISTER,CO ADJUST NO.7
マ-クL4; CC,HA; 1995-11-01~1997-04-01 |
33932-80710-000 |
— | ||
|
4
|
4
38860-72G00-000 RELAY ASSYRelay, air con メインアンドフュエルリレ-; 1995-11-01~1997-04-01 |
38860-72G00-000 |
US $67.20 |
||
|
5
|
5
38861-81C00-000
Bracket,epi relay
1995-11-01~1997-04-01 |
38861-81C00-000 |
— | ||
|
6
|
6
02142-06103-000
Screw
1995-11-01~1997-04-01 |
02142-06103-000 |
— | ||
| replacements | |||||
|
6
|
6
02142-0610B-000 SCREWStopper, cl rlse cam shaft 1995-11-01~1997-04-01 |
02142-0610B-000 |
from US $0.76 |
||
|
6
|
6
02142-0610A-000 SCREW1995-11-01~1997-04-01 |
02142-0610A-000 |
from US $0.96 |
||
|
11
|
11
38590-77E10-000 CONTROLLER,WARNING BUZZER1995-11-01~1997-04-01 |
38590-77E10-000 |
US $138 |
||
|
12
|
12
03541-05163-000
Screw
1995-11-01~1997-04-01 |
03541-05163-000 |
— | ||
| replacement | |||||
|
12
|
12
03541-0516A-000 SCREW1995-11-01~1997-04-01 |
03541-0516A-000 |
from US $0.76 |
||
|
19
|
19
37400-80C00-000
SWITCH ASSY,COMB
HA; 1995-11-01~1997-04-01 |
37400-80C00-000 |
— | ||
|
20
|
20
02112-05163-000
Screw
1995-11-01~1997-04-01 |
02112-05163-000 |
— | ||
| replacements | |||||
|
20
|
20
02112-0516B-000 SCREW1995-11-01~1997-04-01 |
02112-0516B-000 |
from US $0.80 |
||
|
20
|
20
02112-0516A-000 SCREW1995-11-01~1997-04-01 |
02112-0516A-000 |
from US $0.96 |
||
|
21
|
21
37740-60A20-000
スイッチアッシ,ストップランプ/ロックアップ
3AT; 1995-11-01~1997-04-01 |
37740-60A20-000 |
— | ||
| replacement | |||||
|
21
|
21
37740-60G10-000 SWITCH ASSY,STOP LAMP3AT; 1995-11-01~1997-04-01 |
37740-60G10-000 |
from US $41.49 |
||
|
22
|
22
37940-80000-000 SWITCH ASSY,PARKING BRAKE1995-11-01~1997-04-01 |
37940-80000-000 |
US $15.84 |
||
|
23
|
23
09140-10043-000 NUTNut, tie rod rh thread 1995-11-01~1997-04-01 |
09140-10043-000 |
from US $0.91 |
||
|
24
|
24
37670-55110-000
SWITCH ASSY,DOOR
ユウセイ; HA; 1995-11-01~1997-04-01 |
37670-55110-000 |
— | ||
|
24
|
24
37670-80010-000 SWITCH ASSY,DOORユウセイノゾク; HA; 1995-11-01~1997-04-01 |
37670-80010-000 |
US $11.48 |
||
|
25
|
25
09250-14008-000 CAP(OD:17.3)1995-11-01~1997-04-01 |
09250-14008-000 |
US $1.12 |
||
|
26
|
26
37860-60A00-000 SWITCH ASSY,RR DEFOGGERV,W; 1995-11-01~1997-04-01 |
37860-60A00-000 |
US $28.84 |
||
|
27
|
27
09471-12135-000 BULB(CLEAR)クリア; V,W; 1995-11-01~1997-04-01 |
09471-12135-000 |
US $57 |
||
|
28
|
28
37870-80000-000 SWITCH ASSY,HTR FAN MOTOR1995-11-01~1997-04-01 |
37870-80000-000 |
US $64 |
||
|
29
|
29
03211-04103-000
Screw
1995-11-01~1997-04-01 |
03211-04103-000 |
— | ||
| replacements | |||||
|
29
|
29
03211-0410B-000 SCREW1995-11-01~1997-04-01 |
03211-0410B-000 |
from US $0.80 |
||
|
29
|
29
03211-0410A-000 SCREW1995-11-01~1997-04-01 |
03211-0410A-000 |
from US $1.31 |
||
|
30
|
30
38500-70E00-000 HORN ASSY,LOW PITCHED1995-11-01~1997-04-01 |
38500-70E00-000 |
US $74.40 |
||
|
31
|
31
01570-08123-000
Bolt
1995-11-01~1997-04-01 |
01570-08123-000 |
— | ||
| replacement | |||||
|
31
|
31
01570-0812A-000 Bolt1995-11-01~1997-04-01 |
01570-0812A-000 |
US $14.40 |
||
|
32
|
32
38610-84001-000
リレー,ターンシグナル/4ウェイ
OMRON; 1995-11-01~1997-04-01 |
38610-84001-000 |
— | ||
| replacement | |||||
|
32
|
32
38610-76G00-000 RELAY,TURN SIGNAL&4WAYRelay, turnsignal & 4 way OMRON; 1995-11-01~1997-04-01 |
38610-76G00-000 |
US $63.20 |
||
|
37
|
37
37275-80C00-000 CAP,CIGAR LIGHTER HOLEHA; 1995-11-01~1997-04-01 |
37275-80C00-000 |
US $4.27 |
||
|
38
|
38
37275-70E10-000 CAP,OPTION SW HOLE1995-11-01~1997-04-01 |
37275-70E10-000 |
US $11.20 |
||
|
48
|
48
38750-55F00-000
ホーンアッシ,バックアップ
ユウセイ; HA; 1995-11-01~1997-04-01 |
38750-55F00-000 |
— | ||
|
49
|
49
37500-86000-000
Switch assy,back door opener
ユウセイ; HA; 1995-11-01~1997-04-01 |
37500-86000-000 |
— | ||
|
50
|
50
38896-83000-000
コントローラアッシ,バックドアロック
ユウセイ; HA; 1995-11-01~1997-04-01 |
38896-83000-000 |
— | ||
|
51
|
51
72877-83100-000
カバー,バックドアスイッチ
ユウセイ; HA; 1995-11-01~1997-04-01 |
72877-83100-000 |
— | ||
