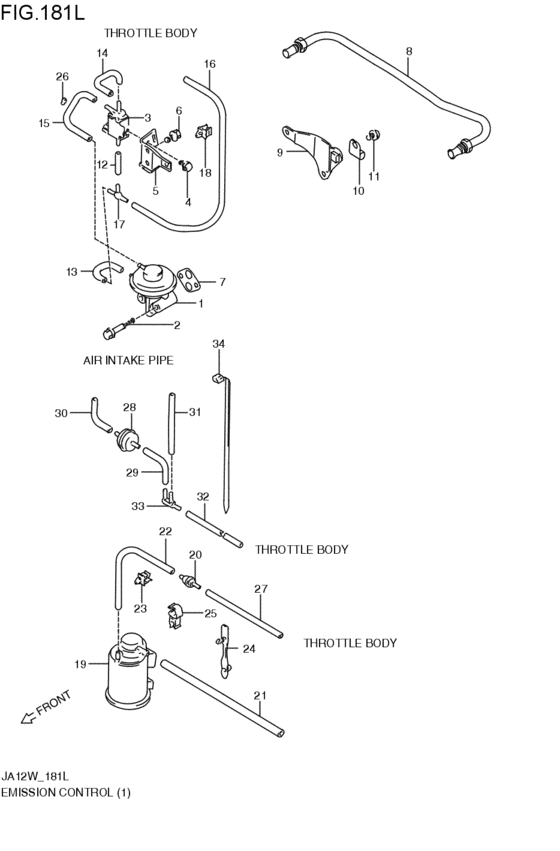

emission control (F6A; 1995-11-01~1997-04-01) Diagram Suzuki JIMNY
- Year
- 1995 - 1997
- Sales region
- Japan
- Engine
- F6A
- transmission
- 3AT
- grade
- HA
- air bag
- NAB
- abs
- NABS
- x01
- V
- x02
- B
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18111-83C00-000 VALVE,EGRF6A; 1995-11-01~1997-04-01 |
18111-83C00-000 |
US $183.26 |
||
|
2
|
2
01550-06453-000
Bolt
F6A; 1995-11-01~1997-04-01 |
01550-06453-000 |
— | ||
| replacement | |||||
|
2
|
2
01550-0645A-000 BoltF6A; 1995-11-01~1997-04-01 |
01550-0645A-000 |
from US $0.96 |
||
|
3
|
3
18117-56F00-000
バルブ,3ウェイソレノイドレギュレータ
DENSO; F6A; 1995-11-01~1997-04-01 |
18117-56F00-000 |
— | ||
|
4
|
4
01550-05083-000
Bolt
F6A; 1995-11-01~1997-04-01 |
01550-05083-000 |
— | ||
| replacement | |||||
|
4
|
4
01550-0508B-000 BoltF6A; 1995-11-01~1997-04-01 |
01550-0508B-000 |
from US $2.28 |
||
|
5
|
5
18417-83C30-000
ブラケット,EGRバルブ
F6A; 1995-11-01~1997-04-01 |
18417-83C30-000 |
— | ||
|
6
|
6
01550-06123-000
Bolt
F6A; 1995-11-01~1997-04-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0612B-000 BoltBolt, clamp F6A; 1995-11-01~1997-04-01 |
01550-0612B-000 |
from US $0.76 |
||
|
6
|
6
01550-0612A-000 BoltF6A; 1995-11-01~1997-04-01 |
01550-0612A-000 |
from US $0.76 |
||
|
7
|
7
18529-60A00-000 GASKET,EGR VALVEF6A; 1995-11-01~1997-04-01 |
18529-60A00-000 |
US $1.60 |
||
|
8
|
8
18530-83C00-000
パイプ,EGR
F6A; 1995-11-01~1997-04-01 |
18530-83C00-000 |
— | ||
|
9
|
9
18535-82C00-000
ブラケット,EGRパイプクランプ
F6A; 1995-11-01~1997-04-01 |
18535-82C00-000 |
— | ||
|
10
|
10
18536-85300-000 CLAMP,EGR PIPEF6A; 1995-11-01~1997-04-01 |
18536-85300-000 |
US $3.64 |
||
|
11
|
11
09103-06168-000 BOLT(6X10)F6A; 1995-11-01~1997-04-01 |
09103-06168-000 |
from US $0.97 |
||
|
12
|
12
09355-35754-600
ホース,3.5X7.5X600
L:600>30; F6A; 1995-11-01~1997-04-01 |
09355-35754-600 |
— | ||
| replacements | |||||
|
12
|
12
09355-35754-601
HOSE(3.5X7.5X601)
L:600>30; F6A; 1995-11-01~1997-04-01 |
09355-35754-601 |
— | ||
|
12
|
12
09355-35006-601 Hose(3.5X7.5X601)L:600>30; F6A; 1995-11-01~1997-04-01 |
09355-35006-601 |
from US $5.78 |
||
|
13
|
13
09355-35754-600
ホース,3.5X7.5X600
L:600>80; F6A; 1995-11-01~1997-04-01 |
09355-35754-600 |
— | ||
| replacements | |||||
|
13
|
13
09355-35754-601
HOSE(3.5X7.5X601)
L:600>80; F6A; 1995-11-01~1997-04-01 |
09355-35754-601 |
— | ||
|
13
|
13
09355-35006-601 Hose(3.5X7.5X601)L:600>80; F6A; 1995-11-01~1997-04-01 |
09355-35006-601 |
from US $5.78 |
||
|
14
|
14
09355-35754-600
ホース,3.5X7.5X600
L:600>100; F6A; 1995-11-01~1997-04-01 |
09355-35754-600 |
— | ||
| replacements | |||||
|
14
|
14
09355-35754-601
HOSE(3.5X7.5X601)
L:600>100; F6A; 1995-11-01~1997-04-01 |
09355-35754-601 |
— | ||
|
14
|
14
09355-35006-601 Hose(3.5X7.5X601)L:600>100; F6A; 1995-11-01~1997-04-01 |
09355-35006-601 |
from US $5.78 |
||
|
15
|
15
09355-35754-600
ホース,3.5X7.5X600
L:600>150; F6A; 1995-11-01~1997-04-01 |
09355-35754-600 |
— | ||
| replacements | |||||
|
15
|
15
09355-35754-601
HOSE(3.5X7.5X601)
L:600>150; F6A; 1995-11-01~1997-04-01 |
09355-35754-601 |
— | ||
|
15
|
15
09355-35006-601 Hose(3.5X7.5X601)L:600>150; F6A; 1995-11-01~1997-04-01 |
09355-35006-601 |
from US $5.78 |
||
|
16
|
16
09355-35754-600
ホース,3.5X7.5X600
L:600>270; F6A; 1995-11-01~1997-04-01 |
09355-35754-600 |
— | ||
| replacements | |||||
|
16
|
16
09355-35754-601
HOSE(3.5X7.5X601)
L:600>270; F6A; 1995-11-01~1997-04-01 |
09355-35754-601 |
— | ||
|
16
|
16
09355-35006-601 Hose(3.5X7.5X601)L:600>270; F6A; 1995-11-01~1997-04-01 |
09355-35006-601 |
from US $5.78 |
||
|
17
|
17
09367-04002-000 CONNECTORF6A; 1995-11-01~1997-04-01 |
09367-04002-000 |
US $4.80 |
||
|
18
|
18
09408-00033-000 CLAMPClamp F6A; 1995-11-01~1997-04-01 |
09408-00033-000 |
from US $1.60 |
||
|
19
|
19
18560-82C00-000
キャニスタ
F6A; 1995-11-01~1997-04-01 |
18560-82C00-000 |
— | ||
|
20
|
20
18565-84150-000
バルブ,キャニスタパージ
DENSO; F6A; 1995-11-01~1997-04-01 |
18565-84150-000 |
— | ||
| replacement | |||||
|
20
|
20
18565-84151-000 VALVE,CANISTER PURGEDENSO; F6A; 1995-11-01~1997-04-01 |
18565-84151-000 |
US $21.60 |
||
|
21
|
21
09351-70113-600 HOSE(7X11X600)L:600>260; F6A; 1995-11-01~1997-04-01 |
09351-70113-600 |
US $3.52 |
||
|
22
|
22
09355-35754-600
ホース,3.5X7.5X600
L:600>220; F6A; 1995-11-01~1997-04-01 |
09355-35754-600 |
— | ||
| replacements | |||||
|
22
|
22
09355-35754-601
HOSE(3.5X7.5X601)
L:600>220; F6A; 1995-11-01~1997-04-01 |
09355-35754-601 |
— | ||
|
22
|
22
09355-35006-601 Hose(3.5X7.5X601)L:600>220; F6A; 1995-11-01~1997-04-01 |
09355-35006-601 |
from US $5.78 |
||
|
23
|
23
09403-08315-000 CLAMPF6A; 1995-11-01~1997-04-01 |
09403-08315-000 |
US $1.67 |
||
|
24
|
24
09407-05406-000 CLAMP(L:118)F6A; 1995-11-01~1997-04-01 |
09407-05406-000 |
from US $1.06 |
||
|
25
|
25
09408-00111-000 CLAMPF6A; 1995-11-01~1997-04-01 |
09408-00111-000 |
US $2.08 |
||
|
26
|
26
15616-64D00-000 JETF6A; 1995-11-01~1997-04-01 |
15616-64D00-000 |
US $3.64 |
||
|
27
|
27
09355-35754-600
ホース,3.5X7.5X600
L:600>150; F6A; 1995-11-01~1997-04-01 |
09355-35754-600 |
— | ||
| replacements | |||||
|
27
|
27
09355-35754-601
HOSE(3.5X7.5X601)
L:600>150; F6A; 1995-11-01~1997-04-01 |
09355-35754-601 |
— | ||
|
27
|
27
09355-35006-601 Hose(3.5X7.5X601)L:600>150; F6A; 1995-11-01~1997-04-01 |
09355-35006-601 |
from US $5.78 |
||
|
28
|
28
18114-80020-000
VALVE,VACUUM TRANSMITTING
DENSO; F6A; 1995-11-01~1997-04-01 |
18114-80020-000 |
— | ||
|
29
|
29
09355-35754-600
ホース,3.5X7.5X600
L:600>40; F6A; 1995-11-01~1997-04-01 |
09355-35754-600 |
— | ||
| replacements | |||||
|
29
|
29
09355-35754-601
HOSE(3.5X7.5X601)
L:600>40; F6A; 1995-11-01~1997-04-01 |
09355-35754-601 |
— | ||
|
29
|
29
09355-35006-601 Hose(3.5X7.5X601)L:600>40; F6A; 1995-11-01~1997-04-01 |
09355-35006-601 |
from US $5.78 |
||
|
30
|
30
09355-35754-600
ホース,3.5X7.5X600
L:600>40; F6A; 1995-11-01~1997-04-01 |
09355-35754-600 |
— | ||
| replacements | |||||
|
30
|
30
09355-35754-601
HOSE(3.5X7.5X601)
L:600>40; F6A; 1995-11-01~1997-04-01 |
09355-35754-601 |
— | ||
|
30
|
30
09355-35006-601 Hose(3.5X7.5X601)L:600>40; F6A; 1995-11-01~1997-04-01 |
09355-35006-601 |
from US $5.78 |
||
|
31
|
31
09355-35754-600
ホース,3.5X7.5X600
L:600>100; F6A; 1995-11-01~1997-04-01 |
09355-35754-600 |
— | ||
| replacements | |||||
|
31
|
31
09355-35754-601
HOSE(3.5X7.5X601)
L:600>100; F6A; 1995-11-01~1997-04-01 |
09355-35754-601 |
— | ||
|
31
|
31
09355-35006-601 Hose(3.5X7.5X601)L:600>100; F6A; 1995-11-01~1997-04-01 |
09355-35006-601 |
from US $5.78 |
||
|
32
|
32
09355-35754-00B
HOSE(3.5X7.5X2000)
L:2000>700; F6A; 1995-11-01~1997-04-01 |
09355-35754-00B |
— | ||
| replacement | |||||
|
32
|
32
09355-35006-00B Hose(3.5X7.5X2000)L:2000>700; F6A; 1995-11-01~1997-04-01 |
09355-35006-00B |
US $28.80 |
||
|
33
|
33
09367-04009-000 JOINTJoint, 3 way F6A; 1995-11-01~1997-04-01 |
09367-04009-000 |
from US $1.67 |
||
|
34
|
34
09407-25401-000 CLAMP(L:235)Clamp (l:235) F6A; 1995-11-01~1997-04-01 |
09407-25401-000 |
from US $2.08 |
||
