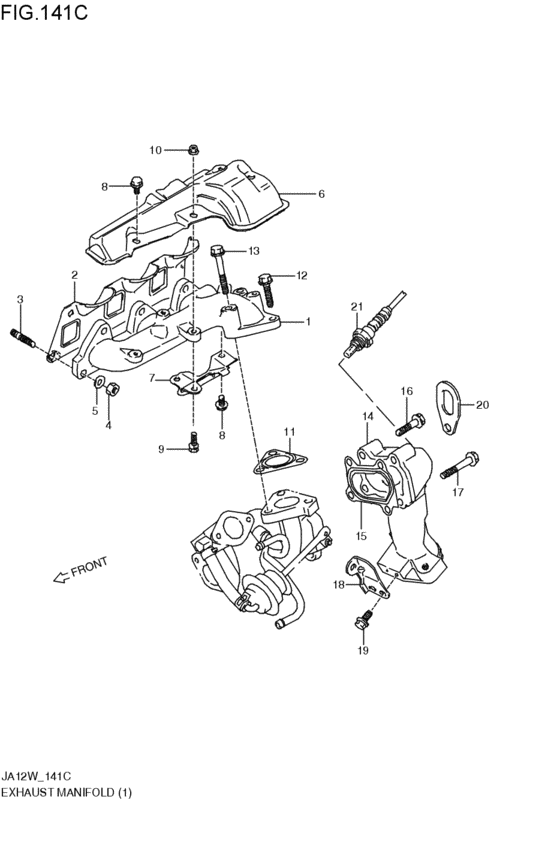

exhaust manifold (F6A; 1995-11-01~1997-04-01) Diagram Suzuki JIMNY
- Year
- 1995 - 1997
- Sales region
- Japan
- Engine
- F6A
- transmission
- 3AT
- grade
- HA
- air bag
- NAB
- abs
- NABS
- x01
- V
- x02
- B
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14111-80702-000
マニホールド,エキゾースト
F6A:V; 1995-11-01~1997-04-01 |
14111-80702-000 |
— | ||
| replacement | |||||
|
1
|
1
14111-807V0-000 MANIFOLD,EXHF6A:V; 1995-11-01~1997-04-01 |
14111-807V0-000 |
US $588.80 |
||
|
2
|
2
14141-67F01-000
ガスケット,エキゾーストマニホールド
F6A; 1995-11-01~1997-04-01 |
14141-67F01-000 |
— | ||
| replacement | |||||
|
2
|
2
14141-67F02-000 GASKET,EXH MANFF6A; 1995-11-01~1997-04-01 |
14141-67F02-000 |
from US $15.91 |
||
|
3
|
3
01411-08203-000
Stud 8x20
F6A; 1995-11-01~1997-04-01 |
01411-08203-000 |
— | ||
| replacement | |||||
|
3
|
3
01411-0820B-000 BOLT,STUDF6A; 1995-11-01~1997-04-01 |
01411-0820B-000 |
US $1.28 |
||
|
4
|
4
08310-00083-000
Nut
F6A; 1995-11-01~1997-04-01 |
08310-00083-000 |
— | ||
| replacements | |||||
|
4
|
4
08310-0008B-000 NUTF6A; 1995-11-01~1997-04-01 |
08310-0008B-000 |
from US $0.96 |
||
|
4
|
4
08310-0008A-000 NUTNut, bead stopper F6A; 1995-11-01~1997-04-01 |
08310-0008A-000 |
from US $0.76 |
||
|
5
|
5
08322-01083-000
WASHER
F6A; 1995-11-01~1997-04-01 |
08322-01083-000 |
— | ||
| replacements | |||||
|
5
|
5
08322-0108B-000 WASHERF6A; 1995-11-01~1997-04-01 |
08322-0108B-000 |
from US $0.96 |
||
|
5
|
5
08322-0108A-000 WASHERF6A; 1995-11-01~1997-04-01 |
08322-0108A-000 |
from US $0.96 |
||
|
6
|
6
14121-80700-000
カバー,エキゾーストマニホールド,アッパ
F6A; 1995-11-01~1997-04-01 |
14121-80700-000 |
— | ||
|
7
|
7
14131-80700-000
カバー,エキゾーストマニホールド,ロア
F6A; 1995-11-01~1997-04-01 |
14131-80700-000 |
— | ||
| replacement | |||||
|
7
|
7
14131-8070V-000
カバー,エキゾーストマニホールド,ロア
F6A; 1995-11-01~1997-04-01 |
14131-8070V-000 |
— | ||
|
8
|
8
09103-06168-000 BOLT(6X10)F6A; 1995-11-01~1997-04-01 |
09103-06168-000 |
from US $0.95 |
||
|
9
|
9
09103-06187-000
Bolt (6x20)
F6A; 1995-11-01~1997-04-01 |
09103-06187-000 |
— | ||
| replacement | |||||
|
9
|
9
01550-06207-000 BoltF6A; 1995-11-01~1997-04-01 |
01550-06207-000 |
from US $0.96 |
||
|
10
|
10
08316-10063-000
Nut
F6A; 1995-11-01~1997-04-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
10
|
10
08316-1006B-000 NUTF6A; 1995-11-01~1997-04-01 |
08316-1006B-000 |
from US $0.76 |
||
|
11
|
11
14181-81050-000
ガスケット,エキゾースト,NO.1
F6A; 1995-11-01~1997-04-01 |
14181-81050-000 |
— | ||
| replacement | |||||
|
11
|
11
14181-81051-000 GASKET,EXH FLANGEF6A; 1995-11-01~1997-04-01 |
14181-81051-000 |
US $20 |
||
|
12
|
12
09103-08117-000
ボルト,8X20
F6A; 1995-11-01~1997-04-01 |
09103-08117-000 |
— | ||
|
13
|
13
09103-08120-000 BOLT(8X51)F6A; 1995-11-01~1997-04-01 |
09103-08120-000 |
US $28 |
||
|
14
|
14
14115-82C01-000
パイプ,エキゾースト
F6A:V; 1995-11-01~1997-04-01 |
14115-82C01-000 |
— | ||
| replacement | |||||
|
14
|
14
14115-82CV0-000
パイプ,エキゾースト
F6A:V; 1995-11-01~1997-04-01 |
14115-82CV0-000 |
— | ||
|
15
|
15
14182-85550-000
ガスケット,エキゾーストパイプ
F6A; 1995-11-01~1997-04-01 |
14182-85550-000 |
— | ||
| replacement | |||||
|
15
|
15
14182-85551-000 GASKET,EXH PIPEGasket, t/c outlet pipe F6A; 1995-11-01~1997-04-01 |
14182-85551-000 |
US $11.10 |
||
|
16
|
16
09103-08118-000 BOLT(8X35)F6A; 1995-11-01~1997-04-01 |
09103-08118-000 |
from US $10.55 |
||
|
17
|
17
09103-08120-000 BOLT(8X51)F6A; 1995-11-01~1997-04-01 |
09103-08120-000 |
US $28 |
||
|
18
|
18
14171-80700-000
ブラケット,ターボチャージャ
F6A; 1995-11-01~1997-04-01 |
14171-80700-000 |
— | ||
| replacement | |||||
|
18
|
18
14171-8070V-000
ブラケット,ターボチャージャ
F6A; 1995-11-01~1997-04-01 |
14171-8070V-000 |
— | ||
|
19
|
19
01550-08163-000
Bolt, holder
F6A; 1995-11-01~1997-04-01 |
01550-08163-000 |
— | ||
| replacements | |||||
|
19
|
19
01550-0816B-000 BoltF6A; 1995-11-01~1997-04-01 |
01550-0816B-000 |
from US $0.91 |
||
|
19
|
19
01550-0816A-000 BoltBolt, rear F6A; 1995-11-01~1997-04-01 |
01550-0816A-000 |
from US $0.91 |
||
|
20
|
20
11851-62B00-000 HOOKF6A; 1995-11-01~1997-04-01 |
11851-62B00-000 |
from US $1.87 |
||
