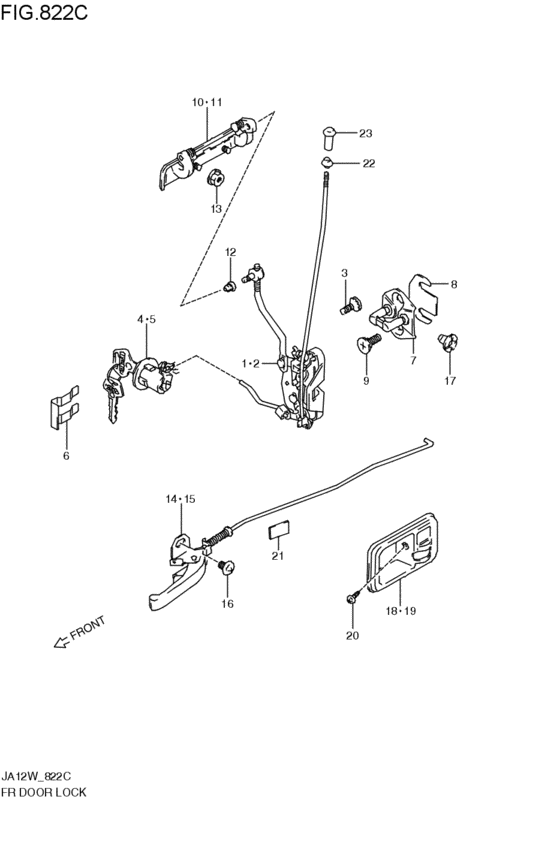

front door lock (1995-11-01~1997-04-01) Diagram Suzuki JIMNY
- Year
- 1995 - 1997
- Sales region
- Japan
- Engine
- F6A
- transmission
- 3AT
- grade
- HA
- air bag
- NAB
- abs
- NABS
- x01
- V
- x02
- B
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82201-84C01-000 LATCH ASSY,FR DR,R1995-11-01~1997-04-01 |
82201-84C01-000 |
US $122.67 |
||
|
2
|
2
82202-84C01-000 LATCH ASSY,FR DR,L1995-11-01~1997-04-01 |
82202-84C01-000 |
US $106.49 |
||
|
3
|
3
09137-06024-000 SCREW(6X18)1995-11-01~1997-04-01 |
09137-06024-000 |
from US $0.88 |
||
|
4
|
4
82200-80851-000 CYLINDER,DR LOCK1995-11-01~1997-04-01 |
82200-80851-000 |
from US $29.59 |
||
|
5
|
5
82200-80861-000 CYLINDER,FR DR LOCK,L1995-11-01~1997-04-01 |
82200-80861-000 |
from US $31.86 |
||
|
6
|
6
89345-60B00-000 CLIP,FUEL FILLER LID KEY LOCK1995-11-01~1997-04-01 |
89345-60B00-000 |
from US $1.71 |
||
|
7
|
7
82610-84C01-000
Striker,front door latch
1995-11-01~1997-04-01 |
82610-84C01-000 |
— | ||
|
8
|
8
82681-80100-000 SPACER,STRIKER1995-11-01~1997-04-01 |
82681-80100-000 |
US $1.60 |
||
|
9
|
9
09137-08011-000 SCREW(8X18)1995-11-01~1997-04-01 |
09137-08011-000 |
from US $1.40 |
||
|
10
|
10
82810-83000-000 HANDLE,DOOR OUTSIDE,R1995-11-01~1997-04-01 |
82810-83000-000 |
from US $36.25 |
||
|
11
|
11
82820-83000-000 HANDLE,DOOR OUTSIDE,L1995-11-01~1997-04-01 |
82820-83000-000 |
from US $36.25 |
||
|
12
|
12
82891-80100-000 SNAP,JOINT1995-11-01~1997-04-01 |
82891-80100-000 |
from US $0.70 |
||
|
13
|
13
08316-20063-000
Nut
1995-11-01~1997-04-01 |
08316-20063-000 |
— | ||
| replacement | |||||
|
13
|
13
08316-2006A-000 NUT1995-11-01~1997-04-01 |
08316-2006A-000 |
from US $0.76 |
||
|
14
|
14
83110-84C01-5ES HANDLE,DOOR INSIDE,Rブラック; 1995-11-01~1997-04-01 |
83110-84C01-5ES |
US $15.03 |
||
|
15
|
15
83130-84C01-5ES HANDLE,DOOR INSIDE,Lブラック; 1995-11-01~1997-04-01 |
83130-84C01-5ES |
from US $15.03 |
||
|
16
|
16
03241-06123-000
Screw
1995-11-01~1997-04-01 |
03241-06123-000 |
— | ||
| replacement | |||||
|
16
|
16
03241-0612A-000 SCREW1995-11-01~1997-04-01 |
03241-0612A-000 |
US $0.80 |
||
|
17
|
17
09148-06007-000 NUT1995-11-01~1997-04-01 |
09148-06007-000 |
from US $0.91 |
||
|
18
|
18
78471-79001-5ES BEZEL,DR INSIDE HDL,Rブラック; 1995-11-01~1997-04-01 |
78471-79001-5ES |
from US $4.46 |
||
|
19
|
19
78481-79001-5ES BEZEL,DR INSIDE HDL,Lブラック; 1995-11-01~1997-04-01 |
78481-79001-5ES |
from US $3.71 |
||
|
20
|
20
03141-04083-000
スクリュ
1995-11-01~1997-04-01 |
03141-04083-000 |
— | ||
| replacement | |||||
|
20
|
20
03141-0408A-000 SCREW1995-11-01~1997-04-01 |
03141-0408A-000 |
from US $0.79 |
||
|
21
|
21
77591-75000-000 PAD1995-11-01~1997-04-01 |
77591-75000-000 |
from US $0.56 |
||
|
22
|
22
78242-61000-000 CAP,LOCK KNOBユウセイ; HA; 1995-11-01~1997-04-01 |
78242-61000-000 |
from US $1.52 |
||
|
22
|
22
82991-84000-000 CAP,DR INSIDE LOCK KNOBユウセイノゾク; HA; 1995-11-01~1997-04-01 |
82991-84000-000 |
from US $1.40 |
||
|
23
|
23
78241-60002-000 KNOB1995-11-01~1997-04-01 |
78241-60002-000 |
from US $1.52 |
||
