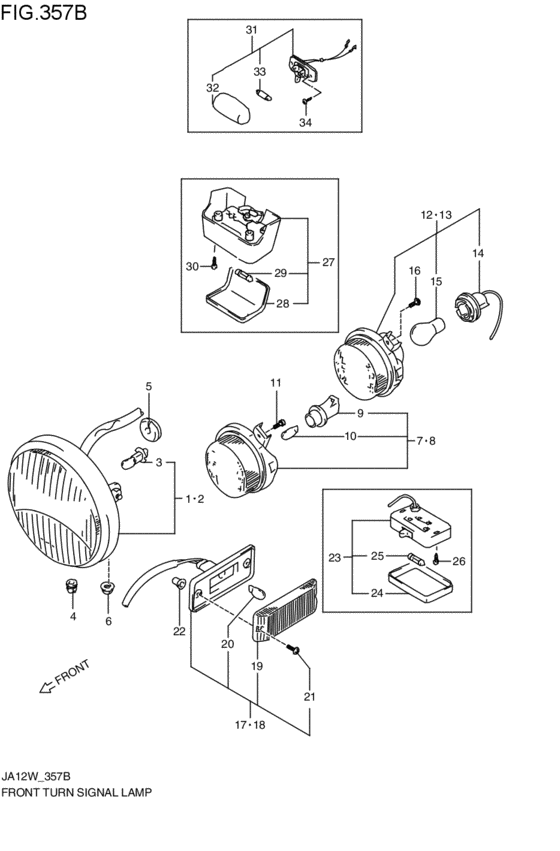

front turn signal lamp (1995-11-01~1997-04-01) Diagram Suzuki JIMNY
- Year
- 1995 - 1997
- Sales region
- Japan
- Engine
- F6A
- transmission
- 3AT
- grade
- HA
- air bag
- NAB
- abs
- NABS
- x01
- V
- x02
- B
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
7
|
7
36101-80C00-000 LAMP ASSY,FR POSN,R1995-11-01~1997-04-01 |
36101-80C00-000 |
from US $35.89 |
||
|
8
|
8
36102-80C00-000 LAMP ASSY,FR POSN,L1995-11-01~1997-04-01 |
36102-80C00-000 |
from US $36.52 |
||
|
9
|
9
35618-70B20-000
Socket
1995-11-01~1997-04-01 |
35618-70B20-000 |
— | ||
| replacement | |||||
|
9
|
9
35618-70B00-000 SOCKET,LAMP1995-11-01~1997-04-01 |
35618-70B00-000 |
US $6.40 |
||
|
10
|
10
09471-12081-000
Bulb (12v,5w)
TOKAI DENSO; 1995-11-01~1997-04-01 |
09471-12081-000 |
— | ||
| replacement | |||||
|
10
|
10
09471-12216-000 BULB(12V5W)Bulb (12v5w) TOKAI DENSO; 1995-11-01~1997-04-01 |
09471-12216-000 |
from US $3.02 |
||
|
11
|
11
03541-04163-000
Screw
1995-11-01~1997-04-01 |
03541-04163-000 |
— | ||
| replacement | |||||
|
11
|
11
03541-0416A-000 SCREWScrew, trunk box lamp 1995-11-01~1997-04-01 |
03541-0416A-000 |
from US $0.76 |
||
|
12
|
12
35601-80C00-000 LAMP ASSY,FR TURN,R1995-11-01~1997-04-01 |
35601-80C00-000 |
from US $66.02 |
||
|
13
|
13
35602-80C00-000 LAMP ASSY,FR TURN,L1995-11-01~1997-04-01 |
35602-80C00-000 |
from US $86.22 |
||
|
14
|
14
35618-80C00-000 SOCKET,LAMP1995-11-01~1997-04-01 |
35618-80C00-000 |
US $52.45 |
||
|
15
|
15
09471-12045-000 BULB(12V21W)STANLEY,A4957E; 1995-11-01~1997-04-01 |
09471-12045-000 |
from US $3.11 |
||
|
16
|
16
03541-04163-000
Screw
1995-11-01~1997-04-01 |
03541-04163-000 |
— | ||
| replacement | |||||
|
16
|
16
03541-0416A-000 SCREWScrew, trunk box lamp 1995-11-01~1997-04-01 |
03541-0416A-000 |
from US $0.76 |
||
|
17
|
17
36410-80C00-000 LAMP ASSY,SIDE TURN SIG,R1995-11-01~1997-04-01 |
36410-80C00-000 |
from US $13.59 |
||
|
18
|
18
36430-80C00-000 LAMP ASSY,SIDE TURN SIG,L1995-11-01~1997-04-01 |
36430-80C00-000 |
from US $13.57 |
||
|
19
|
19
36412-80000-000 LENS1995-11-01~1997-04-01 |
36412-80000-000 |
from US $3.74 |
||
|
20
|
20
09471-12081-000
Bulb (12v,5w)
TOKAI DENSO; 1995-11-01~1997-04-01 |
09471-12081-000 |
— | ||
| replacement | |||||
|
20
|
20
09471-12216-000 BULB(12V5W)Bulb (12v5w) TOKAI DENSO; 1995-11-01~1997-04-01 |
09471-12216-000 |
from US $3.02 |
||
|
21
|
21
03112-04163-000
Screw
1995-11-01~1997-04-01 |
03112-04163-000 |
— | ||
| replacement | |||||
|
21
|
21
03111-0416A-000 SCREW1995-11-01~1997-04-01 |
03111-0416A-000 |
US $0.80 |
||
|
22
|
22
09159-04004-000 NUT1995-11-01~1997-04-01 |
09159-04004-000 |
from US $0.29 |
||
|
27
|
27
36210-80C00-000 LAMP ASSY,ROOMユウセイノゾク; HA; 1995-11-01~1997-04-01 |
36210-80C00-000 |
from US $34.22 |
||
|
28
|
28
36212-50F30-000 LENS,ROOM LAMPユウセイノゾク; HA; 1995-11-01~1997-04-01 |
36212-50F30-000 |
from US $4.79 |
||
|
29
|
29
09471-12073-000 BULB(12V,5W)ユウセイノゾク,TOKAI DENSO; HA; 1995-11-01~1997-04-01 |
09471-12073-000 |
from US $2.39 |
||
|
30
|
30
03211-04203-000
Screw
ユウセイノゾク; HA; 1995-11-01~1997-04-01 |
03211-04203-000 |
— | ||
| replacement | |||||
|
30
|
30
03211-04207-000 SCREWユウセイノゾク; HA; 1995-11-01~1997-04-01 |
03211-04207-000 |
from US $0.80 |
||
|
31
|
31
36210-55113-000
LAMP ASSY,ROOM
ユウセイ; HA; 1995-11-01~1997-04-01 |
36210-55113-000 |
— | ||
|
32
|
32
36212-51011-000
Lens,room lamp
ユウセイ; HA; 1995-11-01~1997-04-01 |
36212-51011-000 |
— | ||
|
33
|
33
09471-12005-000 BULB(12V5W,STANLEY,A3172)ユウセイ,STANLEY,A3172; HA; 1995-11-01~1997-04-01 |
09471-12005-000 |
from US $1.28 |
||
|
34
|
34
03111-04123-000
Screw
ユウセイ; HA; 1995-11-01~1997-04-01 |
03111-04123-000 |
— | ||
| replacement | |||||
|
34
|
34
03111-0412A-000 SCREWユウセイ; HA; 1995-11-01~1997-04-01 |
03111-0412A-000 |
from US $3.04 |
||
