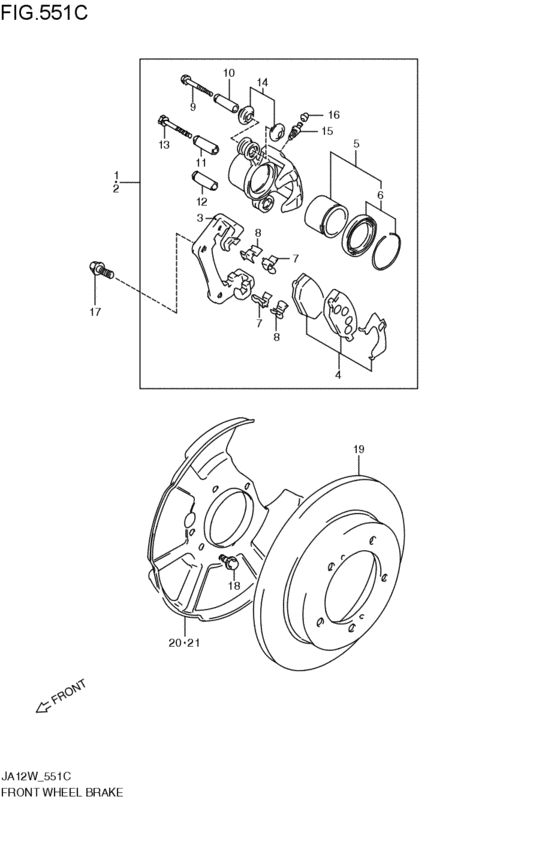

front wheel brakes (1995-11-01~) Diagram Suzuki JIMNY
- Year
- 1995 - 1997
- Sales region
- Japan
- Engine
- F6A
- transmission
- 3AT
- grade
- HA
- air bag
- NAB
- abs
- NABS
- x01
- V
- x02
- B
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55101-70AA1-000 CALIPER ASSY DISC BRAKE RH1995-11-01~1997-04-01 |
55101-70AA1-000 |
US $260.21 |
||
| replacements | |||||
|
1
|
1
55200-70AA0-000 PAD SET,DISC BRAKE1995-11-01~1997-04-01 |
55200-70AA0-000 |
from US $105.84 |
||
|
1
|
1
55101-70AA2-999
CALIPER ASSY,FR BRAKE,R
1995-11-01~1997-04-01 |
55101-70AA2-999 |
— | ||
|
1
|
1
55101-70AA3-999
Caliper Assy,fr Brake,r
1995-11-01~1997-04-01 |
55101-70AA3-999 |
— | ||
|
2
|
2
55102-70AA1-000 CALIPER ASSY DISC BRAKE LH1995-11-01~1997-04-01 |
55102-70AA1-000 |
US $209.03 |
||
| replacements | |||||
|
2
|
2
55200-70AA0-000 PAD SET,DISC BRAKE1995-11-01~1997-04-01 |
55200-70AA0-000 |
from US $105.84 |
||
|
2
|
2
55102-70AA2-999
CALIPER ASSY,FR BRAKE,L
1995-11-01~1997-04-01 |
55102-70AA2-999 |
— | ||
|
2
|
2
55102-70AA3-999
Caliper Assy,fr Brake,l
1995-11-01~1997-04-01 |
55102-70AA3-999 |
— | ||
|
3
|
3
55161-80000-000 MOUNTING,DISC BRAKE1995-11-01~1997-04-01 |
55161-80000-000 |
from US $13.88 |
||
|
4
|
4
55200-70AA0-000 PAD SET,DISC BRAKE1995-11-01~1997-04-01 |
55200-70AA0-000 |
from US $105.84 |
||
|
5
|
5
55830-60C10-000
Piston/seal set
1995-11-01~1997-04-01 |
55830-60C10-000 |
— | ||
| replacements | |||||
|
5
|
5
55830-60C12-000
PISTON / SEAL SET
1995-11-01~1997-04-01 |
55830-60C12-000 |
— | ||
|
5
|
5
55830-60C13-000
Piston / Seal Set
1995-11-01~1997-04-01 |
55830-60C13-000 |
— | ||
|
6
|
6
55100-82820-000
Seal set,piston
1995-11-01~1997-04-01 |
55100-82820-000 |
— | ||
| replacements | |||||
|
6
|
6
55100-82822-000
SEAL SET,PISTON
1995-11-01~1997-04-01 |
55100-82822-000 |
— | ||
|
6
|
6
55100-82823-000 Seal Set,piston1995-11-01~1997-04-01 |
55100-82823-000 |
US $10.10 |
||
|
6
|
6
55100-82824-000 Seal Set,Piston1995-11-01~1997-04-01 |
55100-82824-000 |
from US $8 |
||
|
7
|
7
55234-60B00-000 PLATE,PAD SUPPORT NO.11995-11-01~1997-04-01 |
55234-60B00-000 |
US $5.94 |
||
| replacement | |||||
|
7
|
7
55234-78R00-000 F/Disc pad shim1995-11-01~1997-04-01 |
55234-78R00-000 |
from US $6.57 |
||
|
8
|
8
55235-60B00-000 PLATE,PAD SUPPORT NO.21995-11-01~1997-04-01 |
55235-60B00-000 |
US $6.75 |
||
| replacement | |||||
|
8
|
8
55235-78R00-000 Plate, pad support No.21995-11-01~1997-04-01 |
55235-78R00-000 |
from US $6.69 |
||
|
9
|
9
01550-08553-000
Bolt
1995-11-01~1995-11-01 |
01550-08553-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-0855B-000 Bolt1995-11-01~1995-11-01 |
01550-0855B-000 |
from US $1.44 |
||
|
9
|
9
01550-0855A-000 BoltBolt, gear holder 1995-11-01~1995-11-01 |
01550-0855A-000 |
from US $1.22 |
||
|
10
|
10
55191-80001-000 BUSHING,CYLINDER SLIDE1995-11-01~1995-11-01 |
55191-80001-000 |
US $19.01 |
||
|
11
|
11
55191-61G50-000 BUSH,CYLINDER SLIDE1995-11-01~1997-04-01 |
55191-61G50-000 |
from US $8.73 |
||
|
12
|
12
55191-61G00-000 BUSH,CYLINDER SLIDE1995-11-01~1997-04-01 |
55191-61G00-000 |
US $10.05 |
||
|
13
|
13
55164-86040-000 BOLT,BRAKE CALIPER1995-11-01~1997-04-01 |
55164-86040-000 |
US $3.90 |
||
|
14
|
14
55201-86040-000 BOOT,BUSH DUST1995-11-01~1997-04-01 |
55201-86040-000 |
from US $2.40 |
||
|
15
|
15
55473-82030-000
Plug, bleeder
1995-11-01~1997-04-01 |
55473-82030-000 |
— | ||
| replacement | |||||
|
15
|
15
55151-78451-000 PLUG,BLEEDER1995-11-01~1997-04-01 |
55151-78451-000 |
from US $4.32 |
||
|
16
|
16
55156-66310-000 CAP,BLEEDER PLUGCap, bleeder plug 1995-11-01~1997-04-01 |
55156-66310-000 |
from US $1.98 |
||
|
17
|
17
09117-12012-000 BOLT(12X32)1995-11-01~1997-04-01 |
09117-12012-000 |
from US $2.08 |
||
|
18
|
18
09117-10042-000 BOLT(10X25)1995-11-01~1997-04-01 |
09117-10042-000 |
from US $1.01 |
||
|
19
|
19
55211-60A00-000
DISC FRT BRAKE
1995-11-01~1997-04-01 |
55211-60A00-000 |
— | ||
| replacement | |||||
|
19
|
19
55211-60A01-000 DISC,FR BRAKE1995-11-01~1997-04-01 |
55211-60A01-000 |
from US $132.80 |
||
|
20
|
20
55221-70AA0-000
COVER,BRAKE DISC DUST,R
1995-11-01~1997-04-01 |
55221-70AA0-000 |
— | ||
|
21
|
21
55222-70AA0-000
COVER,BRAKE DISC DUST,L
1995-11-01~1997-04-01 |
55222-70AA0-000 |
— | ||
