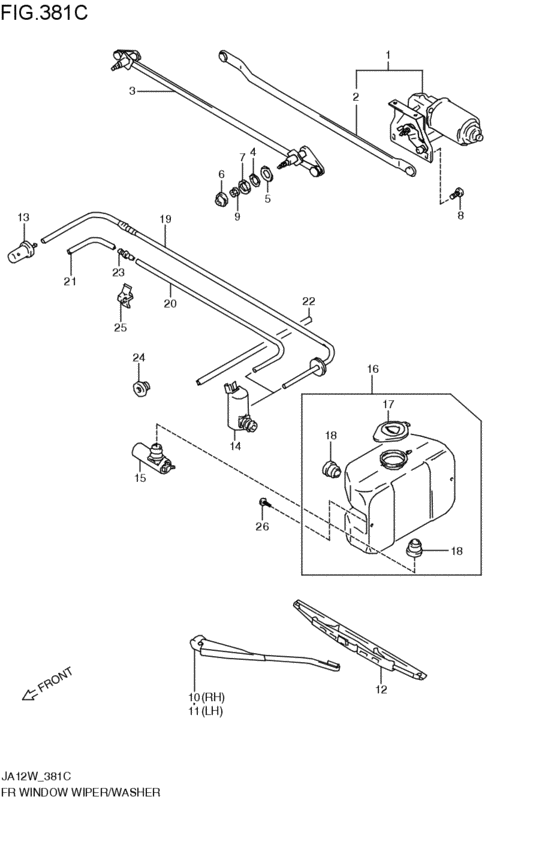

front wind windshield wiper / washer (1995-11-01~1997-04-01) Diagram Suzuki JIMNY
- Year
- 1995 - 1997
- Sales region
- Japan
- Engine
- F6A
- transmission
- 3AT
- grade
- HA
- air bag
- NAB
- abs
- NABS
- x01
- V
- x02
- B
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38101-80C00-000 MOTOR&BRACKET ASSY,WIPER1995-11-01~1997-04-01 |
38101-80C00-000 |
US $478.40 |
||
|
2
|
2
38255-50C00-000 ROD,WIPER1995-11-01~1997-04-01 |
38255-50C00-000 |
US $32.80 |
||
|
3
|
3
38102-50C01-000 LINK ASSY,WIPER1995-11-01~1997-04-01 |
38102-50C01-000 |
US $99.20 |
||
|
4
|
4
38271-82C00-000 WASHER,WIPER PIVOT1995-11-01~1997-04-01 |
38271-82C00-000 |
US $2.56 |
||
|
5
|
5
38272-82C00-000 PACKING,WIPER PIVOT1995-11-01~1997-04-01 |
38272-82C00-000 |
US $2.24 |
||
|
6
|
6
38274-78000-000 CAP1995-11-01~1997-04-01 |
38274-78000-000 |
US $1.76 |
||
|
7
|
7
38278-67011-000 NUT1995-11-01~1997-04-01 |
38278-67011-000 |
US $1.60 |
||
|
8
|
8
09139-06090-000
Screw
1995-11-01~1997-04-01 |
09139-06090-000 |
— | ||
| replacement | |||||
|
8
|
8
02142-0612B-000 SCREW1995-11-01~1997-04-01 |
02142-0612B-000 |
from US $0.76 |
||
|
9
|
9
08316-10063-000
Nut
1995-11-01~1997-04-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
9
|
9
08316-1006B-000 NUT1995-11-01~1997-04-01 |
08316-1006B-000 |
from US $0.76 |
||
|
10
|
10
38310-82C50-000 ARM ASSY,WIPER,R1995-11-01~1997-04-01 |
38310-82C50-000 |
US $77.60 |
||
|
11
|
11
38330-82C50-000 ARM ASSY,WIPER,L1995-11-01~1997-04-01 |
38330-82C50-000 |
US $79.20 |
||
|
12
|
12
38340-82C50-000 BLADE ASSY,WIPER1995-11-01~1997-04-01 |
38340-82C50-000 |
US $32.80 |
||
|
13
|
13
38480-80000-000 NOZZLE ASSY,FR WASHER1995-11-01~1997-04-01 |
38480-80000-000 |
US $24.32 |
||
|
14
|
14
38410-66113-000 PUMP ASSY,WASHERPump assy, washer フロントウォッシャ; 1995-11-01~1997-04-01 |
38410-66113-000 |
US $59.20 |
||
|
16
|
16
38450-80000-000
TANK ASSY,WASHER
CC,HA; 1995-11-01~1997-04-01 |
38450-80000-000 |
— | ||
|
17
|
17
38452-80000-000
キャップ,ウォッシャタンク
1995-11-01~1997-04-01 |
38452-80000-000 |
— | ||
| replacement | |||||
|
17
|
17
38452-65D00-000 CAP,WASHER TANK1995-11-01~1997-04-01 |
38452-65D00-000 |
US $1.92 |
||
|
18
|
18
38453-75000-000 GROMMETCC,HA; 1995-11-01~1997-04-01 |
38453-75000-000 |
US $1.60 |
||
|
19
|
19
38490-80010-000 HOSE ASSY,WASHERCC,HA; 1995-11-01~1997-04-01 |
38490-80010-000 |
US $6.23 |
||
|
26
|
26
02142-06123-000
Screw
1995-11-01~1997-04-01 |
02142-06123-000 |
— | ||
| replacements | |||||
|
26
|
26
02142-0612B-000 SCREW1995-11-01~1997-04-01 |
02142-0612B-000 |
from US $0.76 |
||
|
26
|
26
02142-0612A-000 SCREW1995-11-01~1997-04-01 |
02142-0612A-000 |
from US $0.80 |
||
