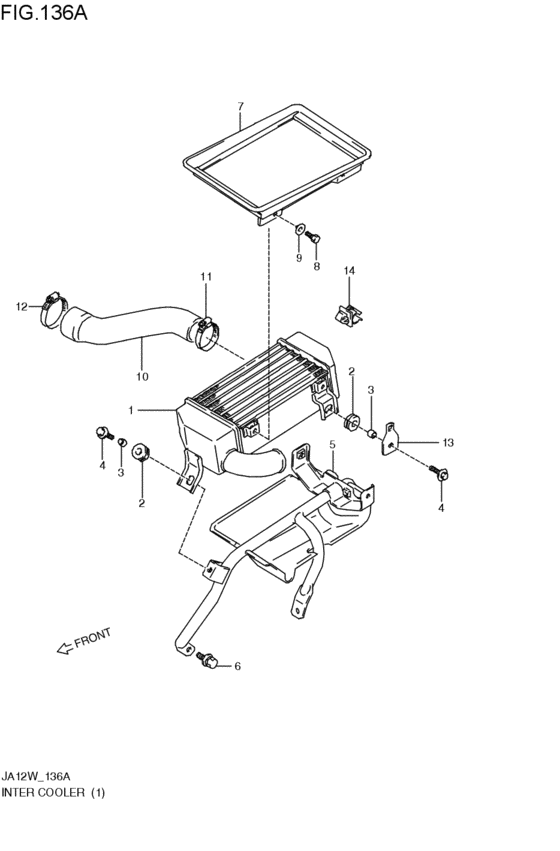

inter-cooler (F6A; 1995-11-01~1997-04-01) Diagram Suzuki JIMNY
- Year
- 1995 - 1997
- Sales region
- Japan
- Engine
- F6A
- transmission
- 3AT
- grade
- HA
- air bag
- NAB
- abs
- NABS
- x01
- V
- x02
- B
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13620-83X50-000
クーラ,インタ
F6A; 1995-11-01~1997-04-01 |
13620-83X50-000 |
— | ||
|
2
|
2
09320-09502-000 CUSHIONCushion, leg guard F6A; 1995-11-01~1997-04-01 |
09320-09502-000 |
from US $2.88 |
||
|
3
|
3
09180-06284-000 SPACER(6.5X10X8)F6A; 1995-11-01~1997-04-01 |
09180-06284-000 |
from US $1.60 |
||
|
4
|
4
09116-06115-000 BOLT(6X20)Bolt (6x20) F6A; 1995-11-01~1997-04-01 |
09116-06115-000 |
from US $1.37 |
||
|
5
|
5
13630-82C10-000
ブラケット,インタクーラ
F6A; 1995-11-01~1997-04-01 |
13630-82C10-000 |
— | ||
|
6
|
6
01550-08163-000
Bolt, holder
F6A; 1995-11-01~1997-04-01 |
01550-08163-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0816B-000 BoltF6A; 1995-11-01~1997-04-01 |
01550-0816B-000 |
from US $0.91 |
||
|
6
|
6
01550-0816A-000 BoltBolt, rear F6A; 1995-11-01~1997-04-01 |
01550-0816A-000 |
from US $0.91 |
||
|
7
|
7
13511-80710-000
ダクト,インタクーラ,アッパ
F6A; 1995-11-01~1997-04-01 |
13511-80710-000 |
— | ||
|
8
|
8
01500-06123-000
Bolt, front
F6A; 1995-11-01~1997-04-01 |
01500-06123-000 |
— | ||
| replacement | |||||
|
8
|
8
01500-0612A-000 BoltF6A; 1995-11-01~1997-04-01 |
01500-0612A-000 |
from US $0.76 |
||
|
9
|
9
09169-06041-000 WASHERF6A; 1995-11-01~1997-04-01 |
09169-06041-000 |
from US $0.76 |
||
|
10
|
10
13662-83C00-000
ホース,インタクーラ,アウトレット
F6A; 1995-11-01~1997-04-01 |
13662-83C00-000 |
— | ||
|
11
|
11
09402-50511-000 CLAMPF6A; 1995-11-01~1997-04-01 |
09402-50511-000 |
from US $7.52 |
||
|
12
|
12
09402-57511-000 CLAMPF6A; 1995-11-01~1997-04-01 |
09402-57511-000 |
from US $6.24 |
||
|
13
|
13
18414-83C10-000
ブラケット,バキュームホースクランプ
F6A; 1995-11-01~1997-04-01 |
18414-83C10-000 |
— | ||
|
14
|
14
09403-08315-000 CLAMPF6A; 1995-11-01~1997-04-01 |
09403-08315-000 |
US $1.67 |
||
