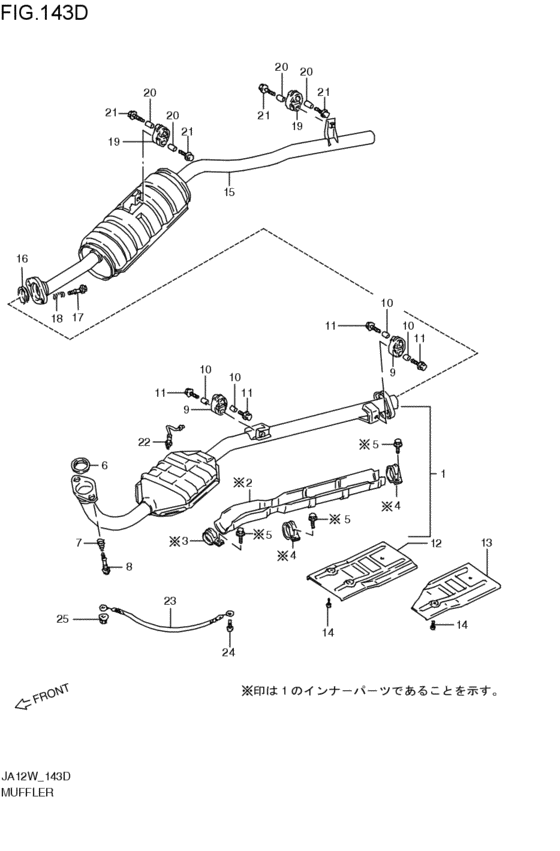

muffler (1995-11-01~1997-04-01) Diagram Suzuki JIMNY
- Year
- 1995 - 1997
- Sales region
- Japan
- Engine
- F6A
- transmission
- 3AT
- grade
- HA
- air bag
- NAB
- abs
- NABS
- x01
- V
- x02
- B
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14190-83C20-000
パイプ,エキゾースト,センタ
1995-11-01~1997-04-01 |
14190-83C20-000 |
— | ||
| replacement | |||||
|
1
|
1
14190-83CVV-000
パイプ,エキゾースト,センタ
1995-11-01~1997-04-01 |
14190-83CVV-000 |
— | ||
|
2
|
2
14351-83001-000
プロテクタ
1995-11-01~1997-04-01 |
14351-83001-000 |
— | ||
| replacement | |||||
|
2
|
2
14351-8300V-000 PROTECTOR1995-11-01~1997-04-01 |
14351-8300V-000 |
US $50.40 |
||
|
3
|
3
14182-83010-000
クランプ,NO.2
1995-11-01~1997-04-01 |
14182-83010-000 |
— | ||
| replacement | |||||
|
3
|
3
14182-8301V-000 CLAMP,NO.21995-11-01~1997-04-01 |
14182-8301V-000 |
US $15.52 |
||
|
4
|
4
14182-57B10-000
Сlamp
1995-11-01~1997-04-01 |
14182-57B10-000 |
— | ||
| replacement | |||||
|
4
|
4
14182-57B1V-000 CLAMP1995-11-01~1997-04-01 |
14182-57B1V-000 |
US $24 |
||
|
5
|
5
01550-06163-000
Bolt
1995-11-01~1997-04-01 |
01550-06163-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0616B-000 Bolt1995-11-01~1997-04-01 |
01550-0616B-000 |
from US $0.76 |
||
|
5
|
5
01550-0616A-000 Bolt1995-11-01~1997-04-01 |
01550-0616A-000 |
from US $0.76 |
||
|
6
|
6
14183-60A11-000
RING SEAL EXHAUST PIPE
1995-11-01~1997-04-01 |
14183-60A11-000 |
— | ||
| replacement | |||||
|
6
|
6
14183-76A00-000 RING,SEAL EXH PIPE1995-11-01~1997-04-01 |
14183-76A00-000 |
from US $12.62 |
||
|
7
|
7
14492-82600-000
Spring
CHKK; 1995-11-01~1997-04-01 |
14492-82600-000 |
— | ||
| replacement | |||||
|
7
|
7
14492-67D00-000 SPRING,EXH PIPECHKK; 1995-11-01~1997-04-01 |
14492-67D00-000 |
from US $6.21 |
||
|
8
|
8
09119-10041-000 BOLT(10X65)1995-11-01~1997-04-01 |
09119-10041-000 |
from US $6.14 |
||
|
9
|
9
14281-78010-000
Mounting, muffler
1995-11-01~1997-04-01 |
14281-78010-000 |
— | ||
| replacement | |||||
|
9
|
9
14281-60G01-000 MOUNTING,MUF1995-11-01~1997-04-01 |
14281-60G01-000 |
from US $5.96 |
||
|
10
|
10
09180-08057-000
Spacer
1995-11-01~1997-04-01 |
09180-08057-000 |
— | ||
| replacement | |||||
|
10
|
10
09180-08227-000 SPACER(8.2X12.5X23.5)1995-11-01~1997-04-01 |
09180-08227-000 |
from US $1.04 |
||
|
11
|
11
01550-08353-000
Bolt, rear
1995-11-01~1997-04-01 |
01550-08353-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0835B-000 Bolt1995-11-01~1997-04-01 |
01550-0835B-000 |
from US $1.28 |
||
|
11
|
11
01550-0835A-000 Bolt1995-11-01~1997-04-01 |
01550-0835A-000 |
from US $1.06 |
||
|
13
|
13
14231-83C01-000
パネル,ヒートプロテクタ
3AT; 1995-11-01~1997-04-01 |
14231-83C01-000 |
— | ||
|
14
|
14
03141-06123-000
Screw 6x12
3AT; 1995-11-01~1997-04-01 |
03141-06123-000 |
— | ||
| replacement | |||||
|
14
|
14
03141-0612A-000 SCREW3AT; 1995-11-01~1997-04-01 |
03141-0612A-000 |
US $0.76 |
||
|
15
|
15
14300-83C10-000
マフラ
1995-11-01~1997-04-01 |
14300-83C10-000 |
— | ||
| replacement | |||||
|
15
|
15
14300-83C1V-000
マフラ
1995-11-01~1997-04-01 |
14300-83C1V-000 |
— | ||
|
16
|
16
14183-60A11-000
RING SEAL EXHAUST PIPE
1995-11-01~1997-04-01 |
14183-60A11-000 |
— | ||
| replacement | |||||
|
16
|
16
14183-76A00-000 RING,SEAL EXH PIPE1995-11-01~1997-04-01 |
14183-76A00-000 |
from US $12.62 |
||
|
17
|
17
09119-10042-000
ボルト,10X65
1995-11-01~1997-04-01 |
09119-10042-000 |
— | ||
| replacement | |||||
|
17
|
17
09119-10041-000 BOLT(10X65)1995-11-01~1997-04-01 |
09119-10041-000 |
from US $6.14 |
||
|
18
|
18
14492-82600-000
Spring
CHKK; 1995-11-01~1997-04-01 |
14492-82600-000 |
— | ||
| replacement | |||||
|
18
|
18
14492-67D00-000 SPRING,EXH PIPECHKK; 1995-11-01~1997-04-01 |
14492-67D00-000 |
from US $6.21 |
||
|
19
|
19
14281-79010-000
Mounting, muffler
1995-11-01~1997-04-01 |
14281-79010-000 |
— | ||
| replacement | |||||
|
19
|
19
14281-60G11-000 MOUNTING,MUFFLER(HS60)1995-11-01~1997-04-01 |
14281-60G11-000 |
from US $4.59 |
||
|
20
|
20
09180-08057-000
Spacer
1995-11-01~1997-04-01 |
09180-08057-000 |
— | ||
| replacement | |||||
|
20
|
20
09180-08227-000 SPACER(8.2X12.5X23.5)1995-11-01~1997-04-01 |
09180-08227-000 |
from US $1.04 |
||
|
21
|
21
01550-08353-000
Bolt, rear
1995-11-01~1997-04-01 |
01550-08353-000 |
— | ||
| replacements | |||||
|
21
|
21
01550-0835B-000 Bolt1995-11-01~1997-04-01 |
01550-0835B-000 |
from US $1.28 |
||
|
21
|
21
01550-0835A-000 Bolt1995-11-01~1997-04-01 |
01550-0835A-000 |
from US $1.06 |
||
|
22
|
22
14810-58B01-000
Fuse,thermo
NGK; 1995-11-01~1997-04-01 |
14810-58B01-000 |
— | ||
| replacement | |||||
|
22
|
22
14810-58B0V-000 FUSE,THERMONGK; 1995-11-01~1997-04-01 |
14810-58B0V-000 |
from US $140.67 |
||
|
23
|
23
39312-82012-000 WIRE,NOISE SUPPR1996-10-01~1997-04-01 |
39312-82012-000 |
US $9.76 |
||
|
24
|
24
03141-06163-000
Screw 6x16
1996-10-01~1997-04-01 |
03141-06163-000 |
— | ||
| replacement | |||||
|
24
|
24
03141-0616A-000 SCREW1996-10-01~1997-04-01 |
03141-0616A-000 |
from US $0.76 |
||
|
25
|
25
08316-10063-000
Nut
1996-10-01~1997-04-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
25
|
25
08316-1006B-000 NUT1996-10-01~1997-04-01 |
08316-1006B-000 |
from US $0.76 |
||
