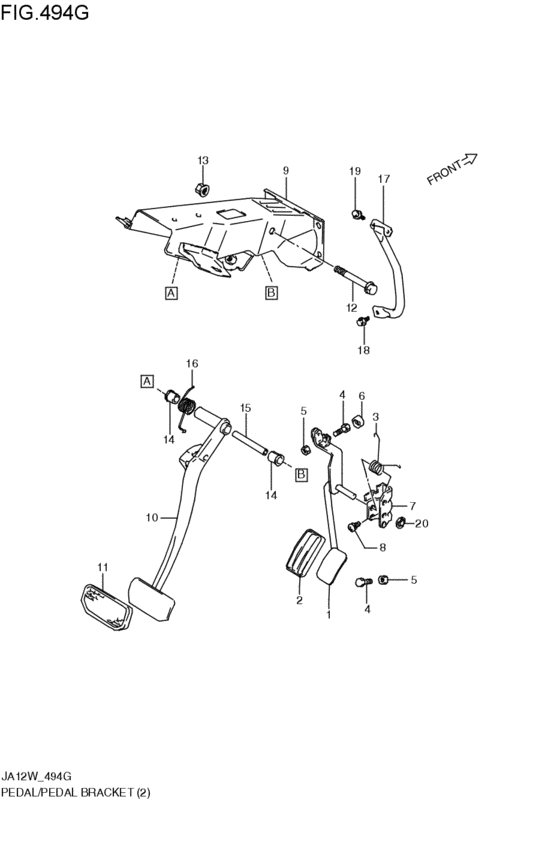

pedal / pedal bracket (3AT; 1995-11-01~1997-04-01) Diagram Suzuki JIMNY
- Year
- 1995 - 1997
- Sales region
- Japan
- Engine
- F6A
- transmission
- 3AT
- grade
- HA
- air bag
- NAB
- abs
- NABS
- x01
- V
- x02
- B
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
49410-82CA0-000
ペダル,アクセレレータ
3AT; 1995-11-01~1996-12-01 |
49410-82CA0-000 |
— | ||
| replacement | |||||
|
1
|
1
49410-82CA2-000 PEDAL,ACCELERATOR3AT; 1995-11-01~1996-12-01 |
49410-82CA2-000 |
US $30.36 |
||
|
1
|
1
49410-82CA1-000
ペダル,アクセレレータ
3AT; 1996-12-01~1997-04-01 |
49410-82CA1-000 |
— | ||
| replacement | |||||
|
1
|
1
49410-82CA2-000 PEDAL,ACCELERATOR3AT; 1996-12-01~1997-04-01 |
49410-82CA2-000 |
US $30.36 |
||
|
2
|
2
49451-80100-000 PAD,ACCELERATOR PEDAL3AT; 1995-11-01~1997-04-01 |
49451-80100-000 |
from US $3.22 |
||
|
3
|
3
09448-21003-000
SPRING
3AT; 1995-11-01~1997-04-01 |
09448-21003-000 |
— | ||
| replacement | |||||
|
3
|
3
09448-21005-000 SPRING3AT; 1995-11-01~1997-04-01 |
09448-21005-000 |
from US $1.64 |
||
|
4
|
4
01500-06253-000 BoltBolt, fuel injection bracket 3AT; 1995-11-01~1997-04-01 |
01500-06253-000 |
US $2.49 |
||
| replacement | |||||
|
4
|
4
01500-0625A-000 BoltBolt, gear shift arm 3AT; 1995-11-01~1997-04-01 |
01500-0625A-000 |
from US $0.96 |
||
|
5
|
5
08310-00063-000
Nut
3AT; 1995-11-01~1997-04-01 |
08310-00063-000 |
— | ||
| replacements | |||||
|
5
|
5
08310-0006B-000 NUTNut gear shift link rod 3AT; 1995-11-01~1997-04-01 |
08310-0006B-000 |
from US $0.76 |
||
|
5
|
5
08310-0006A-000 NUT3AT; 1995-11-01~1997-04-01 |
08310-0006A-000 |
from US $0.76 |
||
|
6
|
6
09251-09002-000
CAP(OD:13.6)
3AT; 1995-11-01~1997-04-01 |
09251-09002-000 |
— | ||
| replacement | |||||
|
6
|
6
09251-09008-000 Cap(Od:13.6)3AT; 1995-11-01~1997-04-01 |
09251-09008-000 |
from US $1.69 |
||
|
7
|
7
49511-80101-000
ブラケット,アクセレレータ
3AT; 1995-11-01~1997-04-01 |
49511-80101-000 |
— | ||
| replacement | |||||
|
7
|
7
49511-80102-000 BRACKET,ACCELERATOR3AT; 1995-11-01~1997-04-01 |
49511-80102-000 |
US $8.10 |
||
|
8
|
8
01570-06123-000
Bolt
3AT; 1995-11-01~1997-04-01 |
01570-06123-000 |
— | ||
| replacements | |||||
|
8
|
8
01570-0612B-000 BoltBolt, upper 3AT; 1995-11-01~1997-04-01 |
01570-0612B-000 |
US $0.96 |
||
|
8
|
8
01570-0612A-000 BoltBolt 3AT; 1995-11-01~1997-04-01 |
01570-0612A-000 |
from US $0.96 |
||
|
9
|
9
49710-70AB0-000
ブラケット,ペダル
3AT; 1995-11-01~1997-04-01 |
49710-70AB0-000 |
— | ||
| replacement | |||||
|
9
|
9
49710-70AA0-000
BRACKET,PEDAL
3AT; 1995-11-01~1997-04-01 |
49710-70AA0-000 |
— | ||
|
10
|
10
49610-70AB0-000
ペダル,ブレーキ
3AT; 1995-11-01~1997-04-01 |
49610-70AB0-000 |
— | ||
|
11
|
11
49751-86300-000
Pad, brake pedal
3AT; 1995-11-01~1997-04-01 |
49751-86300-000 |
— | ||
| replacement | |||||
|
11
|
11
49751-58J10-000 PAD,PEDAL3AT; 1995-11-01~1997-04-01 |
49751-58J10-000 |
from US $5.02 |
||
|
12
|
12
09100-10226-000 BOLT(10X85)3AT; 1995-11-01~1997-04-01 |
09100-10226-000 |
US $14.40 |
||
|
13
|
13
08316-10103-000
Nut
3AT; 1995-11-01~1997-04-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
13
|
13
08316-1010B-000 NUT3AT; 1995-11-01~1997-04-01 |
08316-1010B-000 |
from US $0.80 |
||
|
14
|
14
09306-13004-000 BUSH3AT; 1995-11-01~1997-04-01 |
09306-13004-000 |
from US $3.94 |
||
| replacement | |||||
|
14
|
14
09307-13005-000 BUSHBushing 3AT; 1995-11-01~1997-04-01 |
09307-13005-000 |
from US $2.88 |
||
|
15
|
15
09180-10121-000 SPACER(10.1X13X73.8)3AT; 1995-11-01~1997-04-01 |
09180-10121-000 |
US $30.20 |
||
|
16
|
16
49691-70AA0-000
SPRING,BRAKE PEDAL
3AT; 1995-11-01~1997-04-01 |
49691-70AA0-000 |
— | ||
|
20
|
20
09148-09001-000 NUT3AT; 1996-12-01~1997-04-01 |
09148-09001-000 |
from US $2.02 |
||
