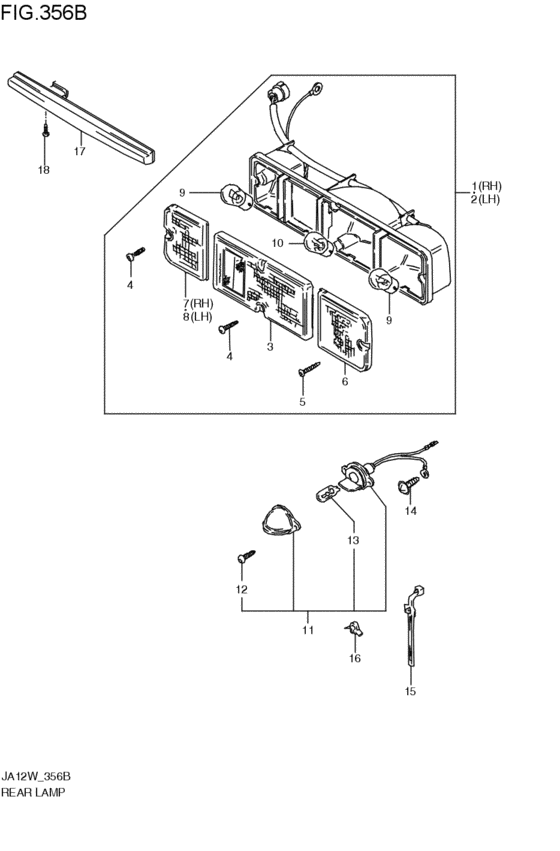

rear lamp (1995-11-01~1997-04-01) Diagram Suzuki JIMNY
- Year
- 1995 - 1997
- Sales region
- Japan
- Engine
- F6A
- transmission
- 3AT
- grade
- HA
- air bag
- NAB
- abs
- NABS
- x01
- V
- x02
- B
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35603-80030-000 LAMP ASSY,RR COMB,R1995-11-01~1997-04-01 |
35603-80030-000 |
from US $87.73 |
||
|
2
|
2
35604-80030-000 LAMP ASSY,RR COMB,L1995-11-01~1997-04-01 |
35604-80030-000 |
from US $87.73 |
||
|
3
|
3
35712-80000-000 LENS,TAIL/STOP[RED] TAIL/STOP; 1995-11-01~1997-04-01 |
35712-80000-000 |
from US $12.26 |
||
|
4
|
4
03112-05253-000
スクリュ
1995-11-01~1997-04-01 |
03112-05253-000 |
— | ||
| replacement | |||||
|
4
|
4
03112-0525B-000 SCREW1995-11-01~1997-04-01 |
03112-0525B-000 |
US $0.96 |
||
|
5
|
5
03112-05353-000
Screw, 5x35
1995-11-01~1997-04-01 |
03112-05353-000 |
— | ||
| replacement | |||||
|
5
|
5
03112-0535B-000 SCREW1995-11-01~1997-04-01 |
03112-0535B-000 |
US $15.10 |
||
|
6
|
6
35662-80000-000 LENS,TURN SIGNAL[AMBER] 1995-11-01~1997-04-01 |
35662-80000-000 |
from US $9.25 |
||
|
7
|
7
36252-80000-000 LENS,BACKUP,RH[CLEAR] 1995-11-01~1997-04-01 |
36252-80000-000 |
from US $10.22 |
||
|
8
|
8
36272-80000-000 LENS,BACKUP,LH[CLEAR] 1995-11-01~1997-04-01 |
36272-80000-000 |
from US $8.21 |
||
|
9
|
9
09471-12045-000 BULB(12V21W)STANLEY,A4957E; 1995-11-01~1997-04-01 |
09471-12045-000 |
from US $3.11 |
||
|
10
|
10
09471-12083-000 BULB(12V21/5W)STANLEY,49641A; 1995-11-01~1997-04-01 |
09471-12083-000 |
from US $5 |
||
| replacement | |||||
|
10
|
10
09471-12128-000 BULB(12V21/5W,BF141-49642A)STANLEY,49641A; 1995-11-01~1997-04-01 |
09471-12128-000 |
from US $7.20 |
||
|
11
|
11
35910-80C01-000 Lamp assy,license1995-11-01~1997-04-01 |
35910-80C01-000 |
US $109.60 |
||
|
12
|
12
03112-04163-000
Screw
1995-11-01~1997-04-01 |
03112-04163-000 |
— | ||
| replacement | |||||
|
12
|
12
03111-0416A-000 SCREW1995-11-01~1997-04-01 |
03111-0416A-000 |
US $0.80 |
||
|
13
|
13
09471-12081-000
Bulb (12v,5w)
TOKAI DENSO; 1995-11-01~1997-04-01 |
09471-12081-000 |
— | ||
| replacement | |||||
|
13
|
13
09471-12216-000 BULB(12V5W)Bulb (12v5w) TOKAI DENSO; 1995-11-01~1997-04-01 |
09471-12216-000 |
from US $3.02 |
||
|
14
|
14
09139-05028-000 SCREW(5X14)1995-11-01~1997-04-01 |
09139-05028-000 |
from US $0.79 |
||
|
15
|
15
09407-12404-000 CLAMP(L:140)1995-11-01~1997-04-01 |
09407-12404-000 |
from US $1.33 |
||
|
16
|
16
09403-08406-000 CLAMP1996-04-01~1997-04-01 |
09403-08406-000 |
from US $1.44 |
||
