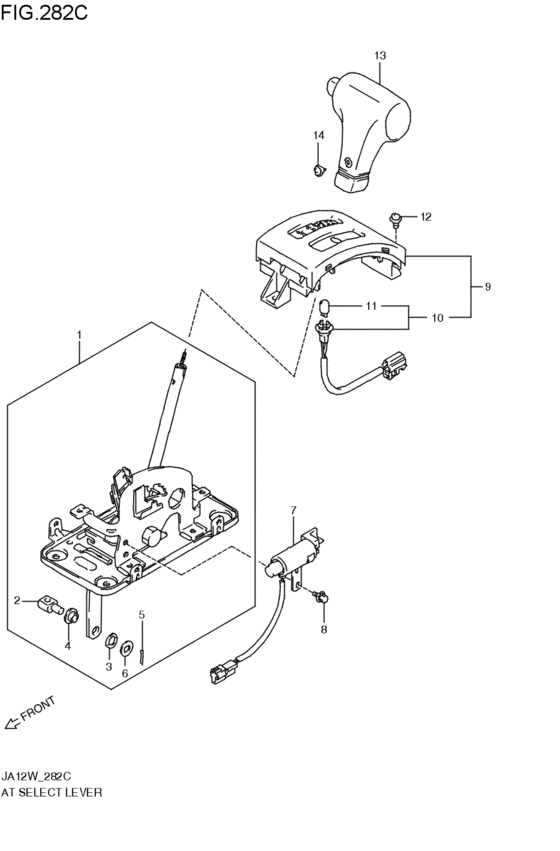

select lever (3AT; 1995-11-01~1997-04-01) Diagram Suzuki JIMNY
- Year
- 1995 - 1997
- Sales region
- Japan
- Engine
- F6A
- transmission
- 3AT
- grade
- HA
- air bag
- NAB
- abs
- NABS
- x01
- V
- x02
- B
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28110-83C01-000
レバーアッシ,セレクト
3AT; 1995-11-01~1997-04-01 |
28110-83C01-000 |
— | ||
|
2
|
2
28291-85600-000 JOINT,T/F GR SHIFT3AT; 1995-11-01~1997-04-01 |
28291-85600-000 |
US $2.72 |
||
|
3
|
3
09164-08002-000 WASHER3AT; 1995-11-01~1997-04-01 |
09164-08002-000 |
US $1.28 |
||
|
4
|
4
09305-08011-000 BUSH3AT; 1995-11-01~1997-04-01 |
09305-08011-000 |
US $1.60 |
||
|
5
|
5
04111-25158-000
Pin 25x15
3AT; 1995-11-01~1997-04-01 |
04111-25158-000 |
— | ||
| replacement | |||||
|
5
|
5
04111-2515A-000 PIN3AT; 1995-11-01~1997-04-01 |
04111-2515A-000 |
from US $0.77 |
||
|
6
|
6
09160-08124-000 WASHER(8.5X20X1.6)3AT; 1995-11-01~1997-04-01 |
09160-08124-000 |
from US $1.37 |
||
| replacement | |||||
|
6
|
6
09160-08054-000 WASHER(8.5X20X1.6)3AT; 1995-11-01~1997-04-01 |
09160-08054-000 |
from US $0.91 |
||
|
7
|
7
38890-63A41-000
SOLENOID,SHIFT LOCK
3AT; 1995-11-01~1997-04-01 |
38890-63A41-000 |
— | ||
|
8
|
8
01580-05083-000 Bolt3AT; 1995-11-01~1997-04-01 |
01580-05083-000 |
US $13.20 |
||
|
9
|
9
28150-83C11-000
インジケータアッシ,セレクトレバー
3AT; 1995-11-01~1997-04-01 |
28150-83C11-000 |
— | ||
| replacement | |||||
|
9
|
9
28150-83C12-000
インジケータアッシ,セレクトレバー
3AT; 1995-11-01~1997-04-01 |
28150-83C12-000 |
— | ||
|
10
|
10
28159-83C00-000
ランプ,セレクトレバーイルミネーション
3AT; 1995-11-01~1997-04-01 |
28159-83C00-000 |
— | ||
|
11
|
11
09471-12077-000 BULB(12V1.7W,T10,WB121)STANLEY,WB121; 3AT; 1995-11-01~1997-04-01 |
09471-12077-000 |
from US $1.52 |
||
|
12
|
12
02142-05103-000
Screw 5x10
3AT; 1995-11-01~1997-04-01 |
02142-05103-000 |
— | ||
| replacement | |||||
|
12
|
12
02142-0510B-000 SCREWBolt 3AT; 1995-11-01~1997-04-01 |
02142-0510B-000 |
from US $0.76 |
||
|
13
|
13
28160-61A10-5PK
KNOB ASSY,SELECT LEVER
ブラック; 3AT; 1995-11-01~1997-04-01 |
28160-61A10-5PK |
— | ||
|
14
|
14
09125-05117-000 SCREW(5X6)Screw (5x6) 3AT; 1995-11-01~1997-04-01 |
09125-05117-000 |
from US $0.96 |
||
